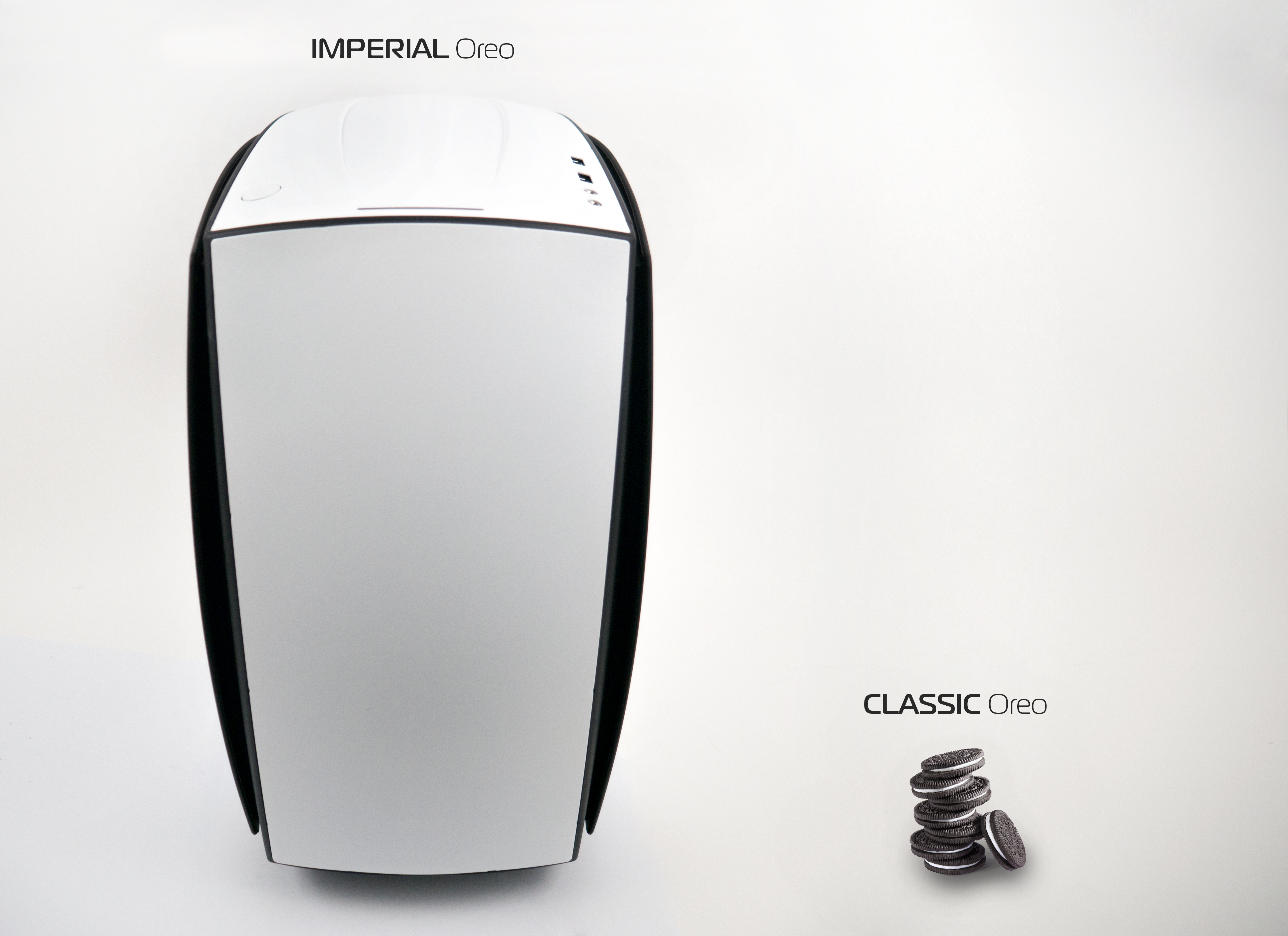

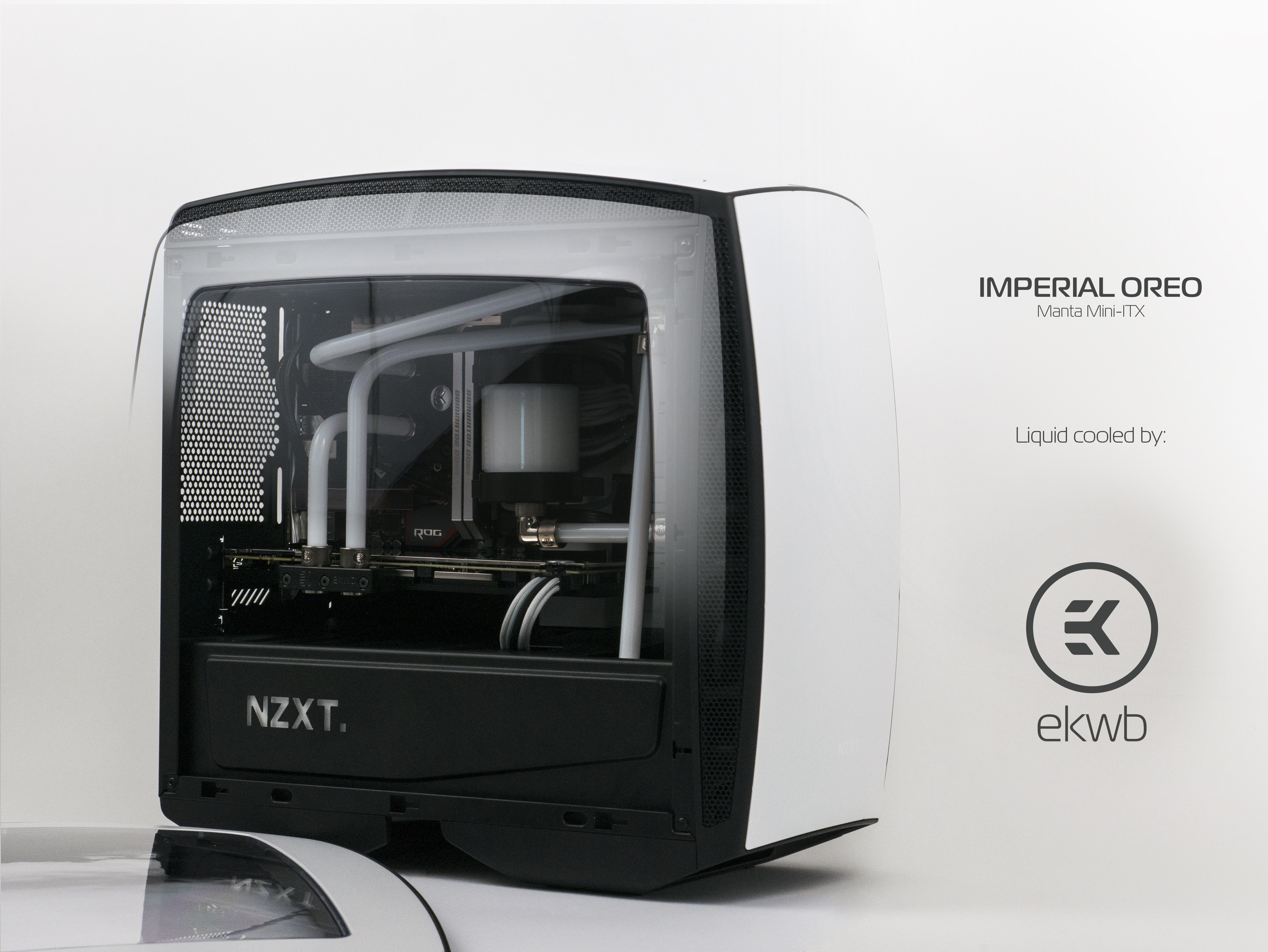

Imperial Oreo by Mark Tanko

---

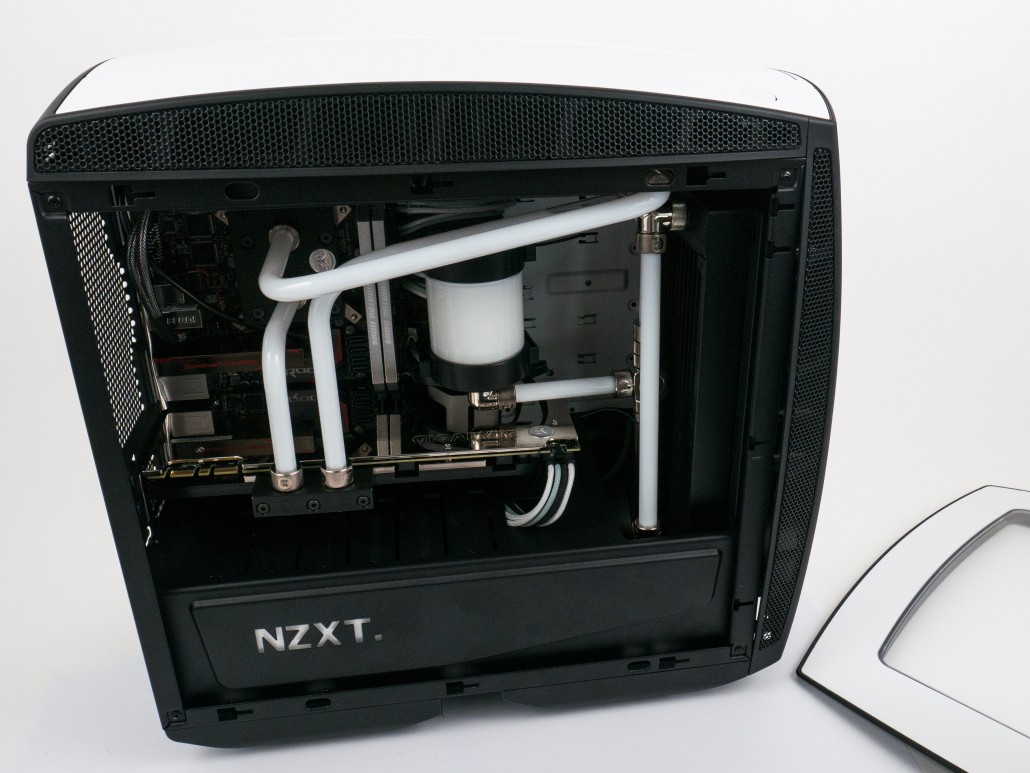

Today we are featuring a smaller more conservative build by our CEO Mark Tanko. The build was done at EKWB HQ in Slovenia as a hobby after-work project. The biggest challenge was to get all of the custom liquid cooling loop components fitted inside a mini-ITX case without it looking overcrowded. Also with regular maintenance in mind – access to the reservoir had to be easy and fast.

Now, the hardware specifications and of course – photographs.

 Hardware

ASUS ROG Maximus VIII Impact
Gigabyte Geforce GTX 1080 G1 Gaming
Intel i7 6700K
Intel 750 400 GB U.2 SSD
16 GB Dominator DDR4-3200 RAM
Corsair Series RM650M
NZXT Manta Mini-ITX

---

EK parts used in this build

EK-FB ASUS M8I Monoblock – Acetal+Nickel
EK-FC1080 GTX G1 – Nickel
EK-FC1080 GTX G1 Backplate – Nickel
EK-XTOP Revo D5 PWM
EK-RES X3 110
2x EK-CoolStream SE 240 (Slim Dual)
3x EK-AF Extender Rotary M-F G1/4 – Nickel
EK-AF Extender 50mm M-F G1/4 – Nickel
EK-AF X-Splitter 4F G1/4 – Nickel
4x EK-AF Angled 90° G1/4 – Nickel
Assortment of EK compression fittings

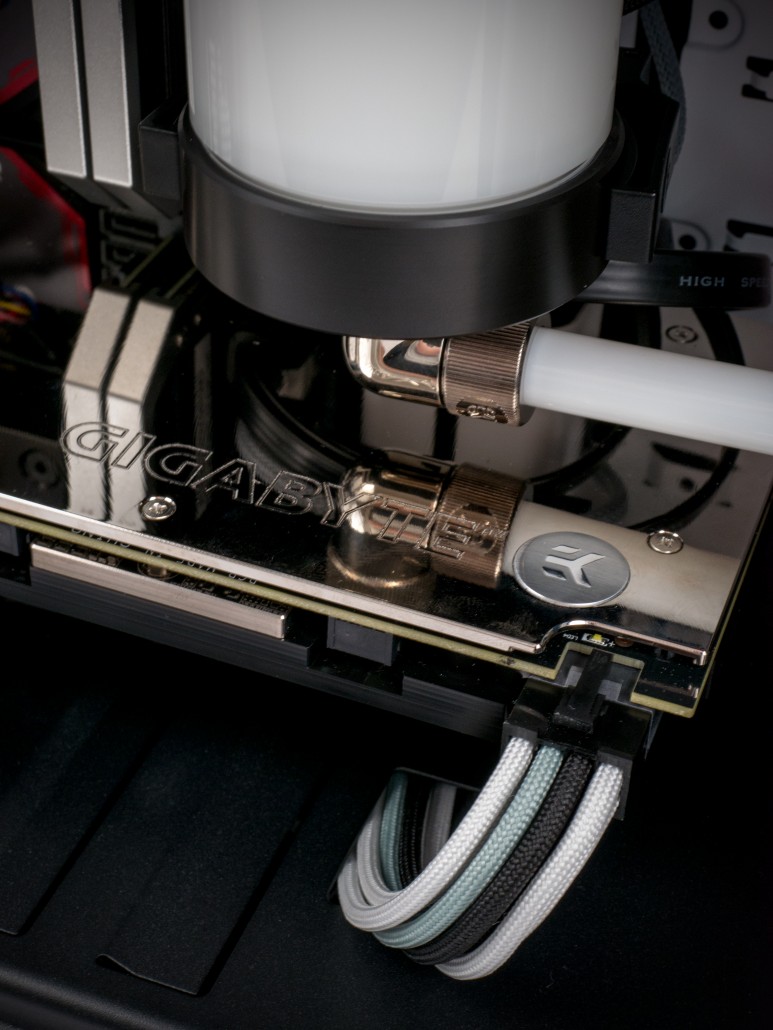

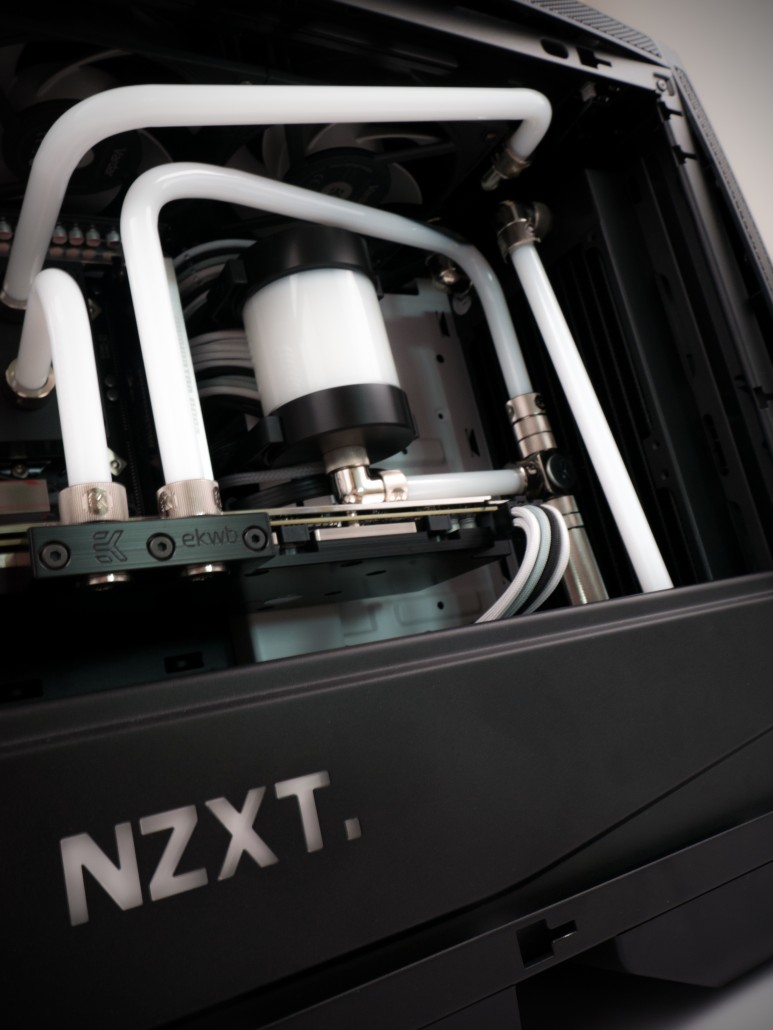

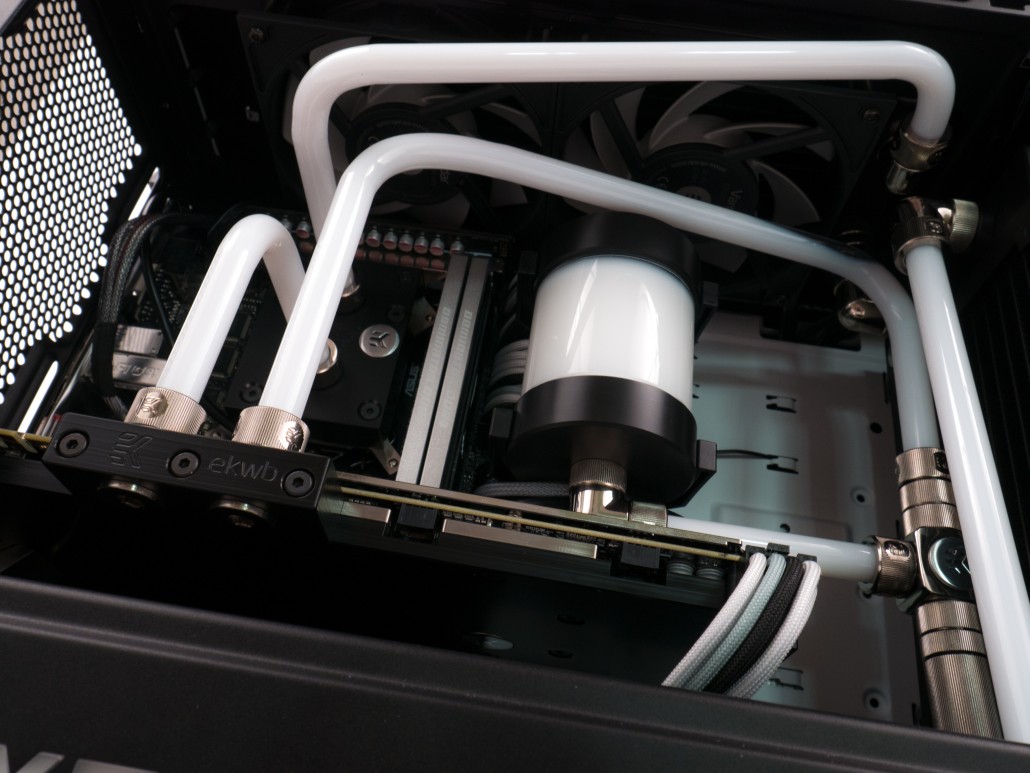

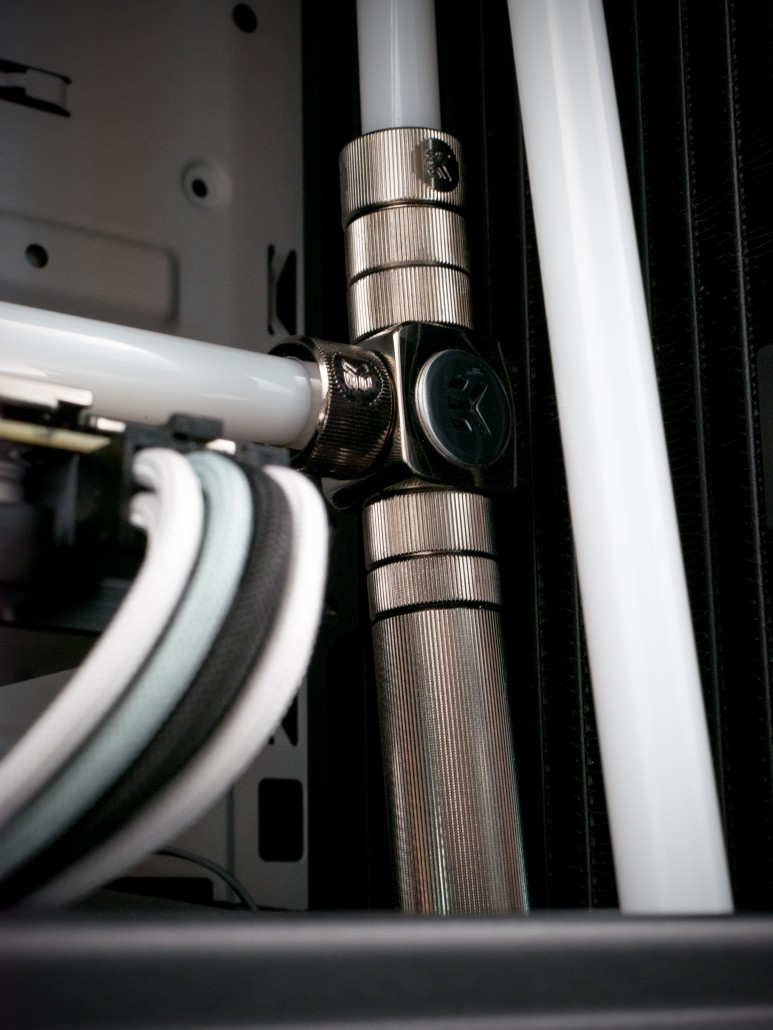

Since there are space restrictions in the Manta this build features lots of EK-AF Angled 90° fittings, mainly to interlink the EK-Coolstream radiators. Bending and using hard tubing in limited space just did not work here. Another addition to user friendliness are the EK-AF Extender Rotary and an EK-AF T-Splitter 3F thus making the reservoir easily detachable for maintenance.

You’ve seen it. Now choose your candy!
