Match Made In Heaven
Premium hardware manufacturer – ASUS ROG – and premium liquid cooling gear provider – EK – have teamed up to deliver this market-winning gaming tool. The recognizable premium quality ROG motherboard design combined with EK’s thermal engineering solution is set to move the boundaries of performance to new heights.
EK Engineered Cooling Solution

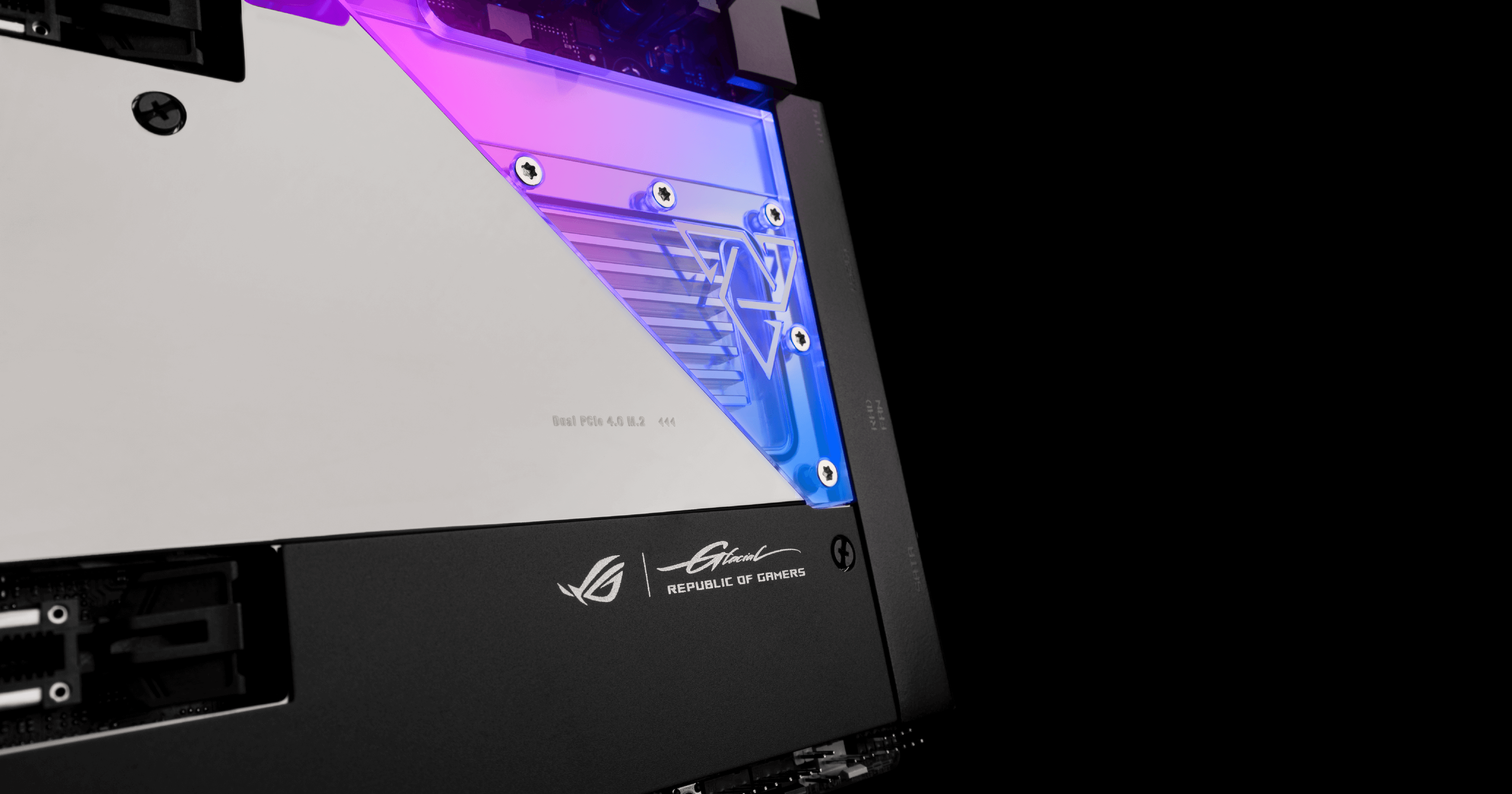

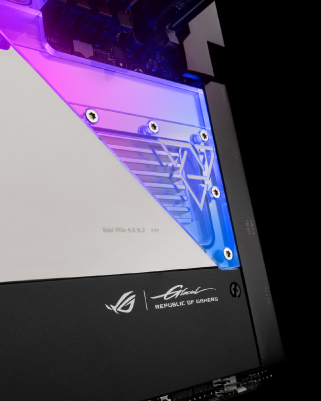

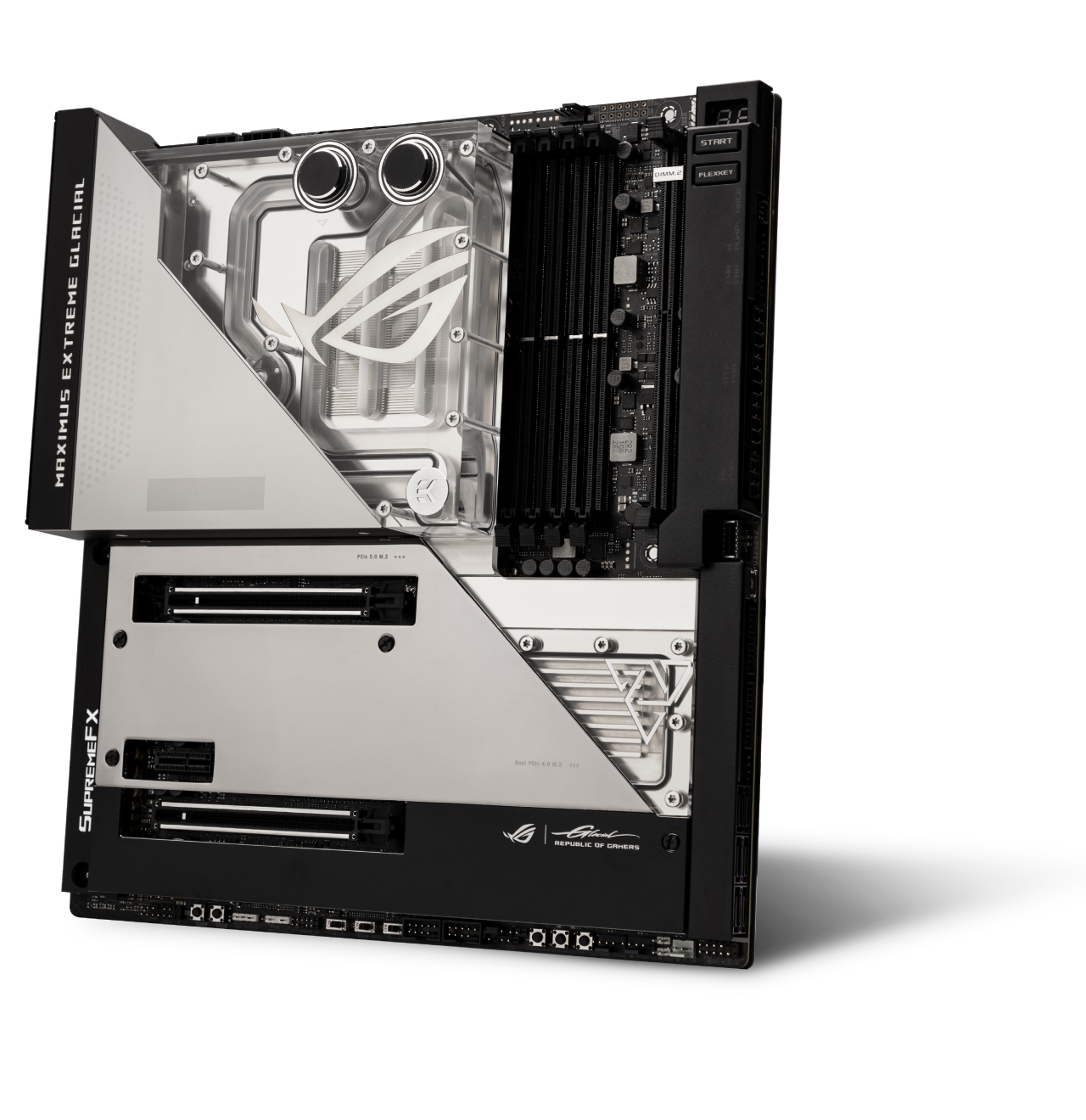

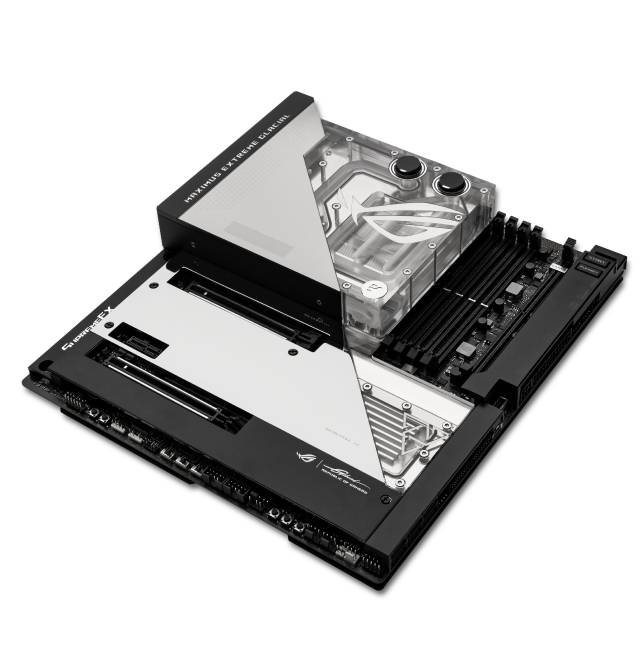

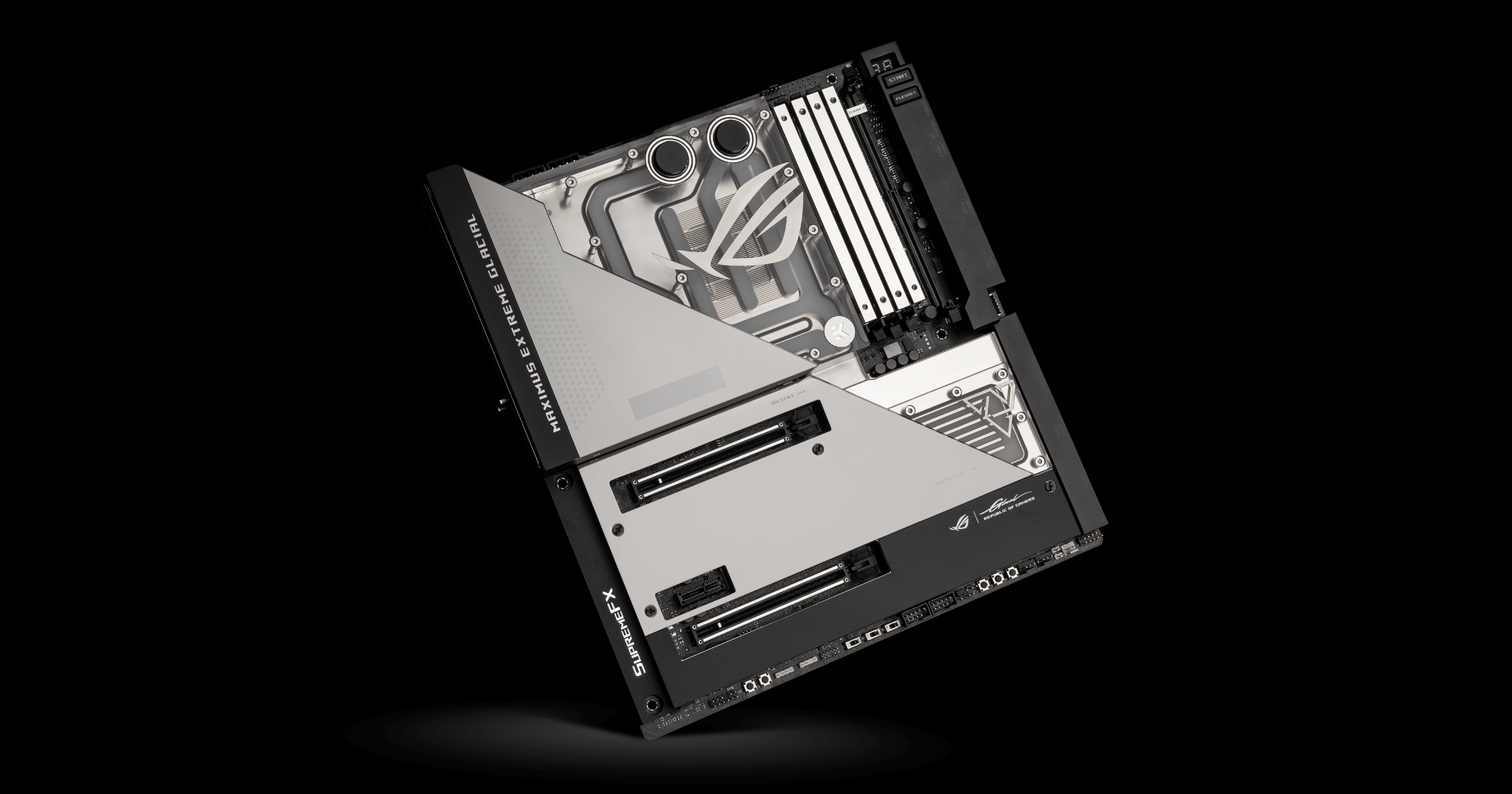

The unique, heavy-duty copper cooling solution is tailor-made for the ROG Maximus Z690 Extreme Glacial and channels coolant over every single key component, including the all-new Z690 chipset.

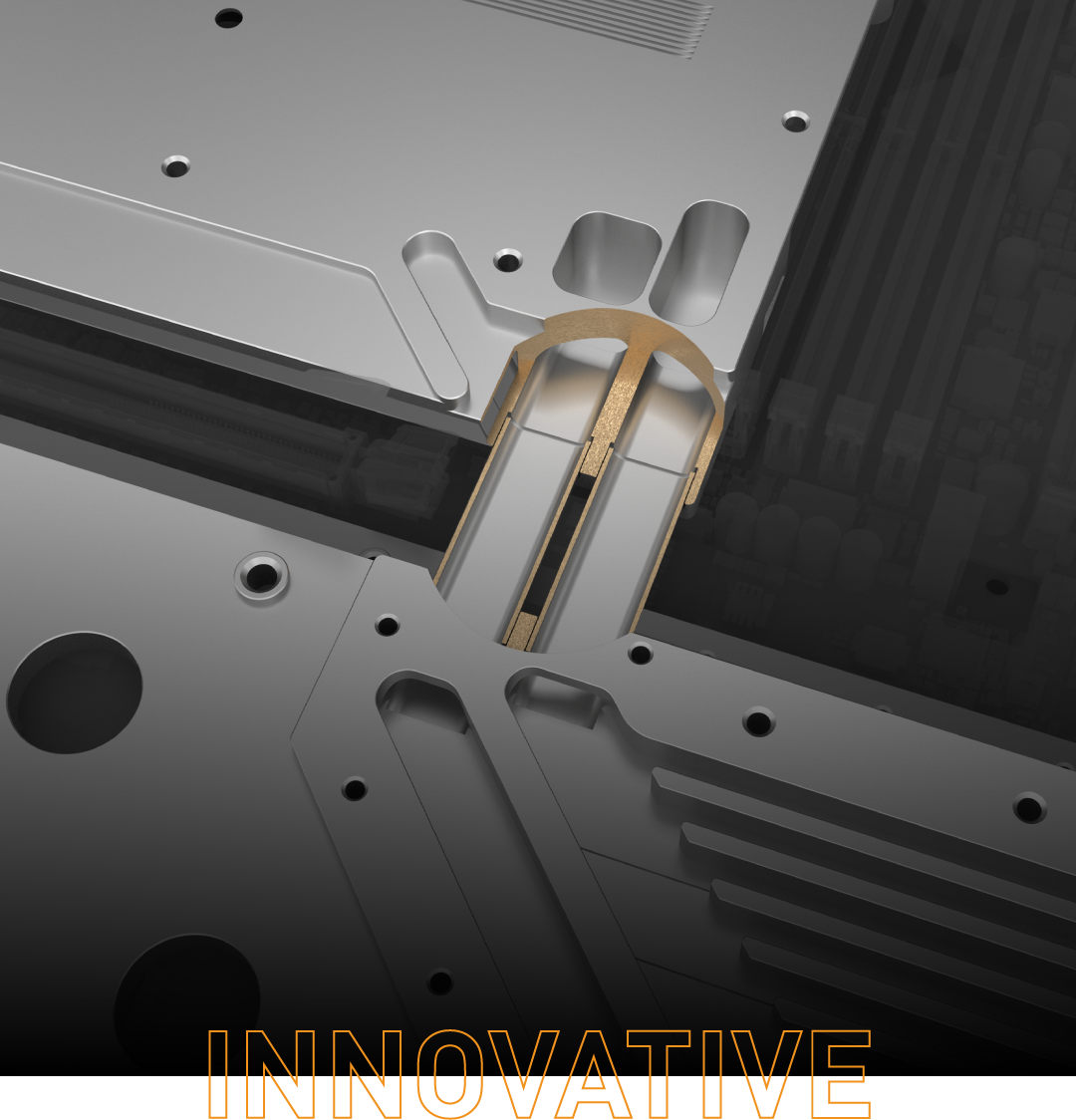

Not only do the soldered HFT flow channels eliminate the risk of additional failure points, but both the In and Out ports also feature leak detection sensors. These make sure that the fittings are properly connected. Every EK-Ultrablock that leaves the EK production line is pressure tested at 14.5 PSI (1 Bar) to ensure the quality of the product.
High-Quality Raw Materials

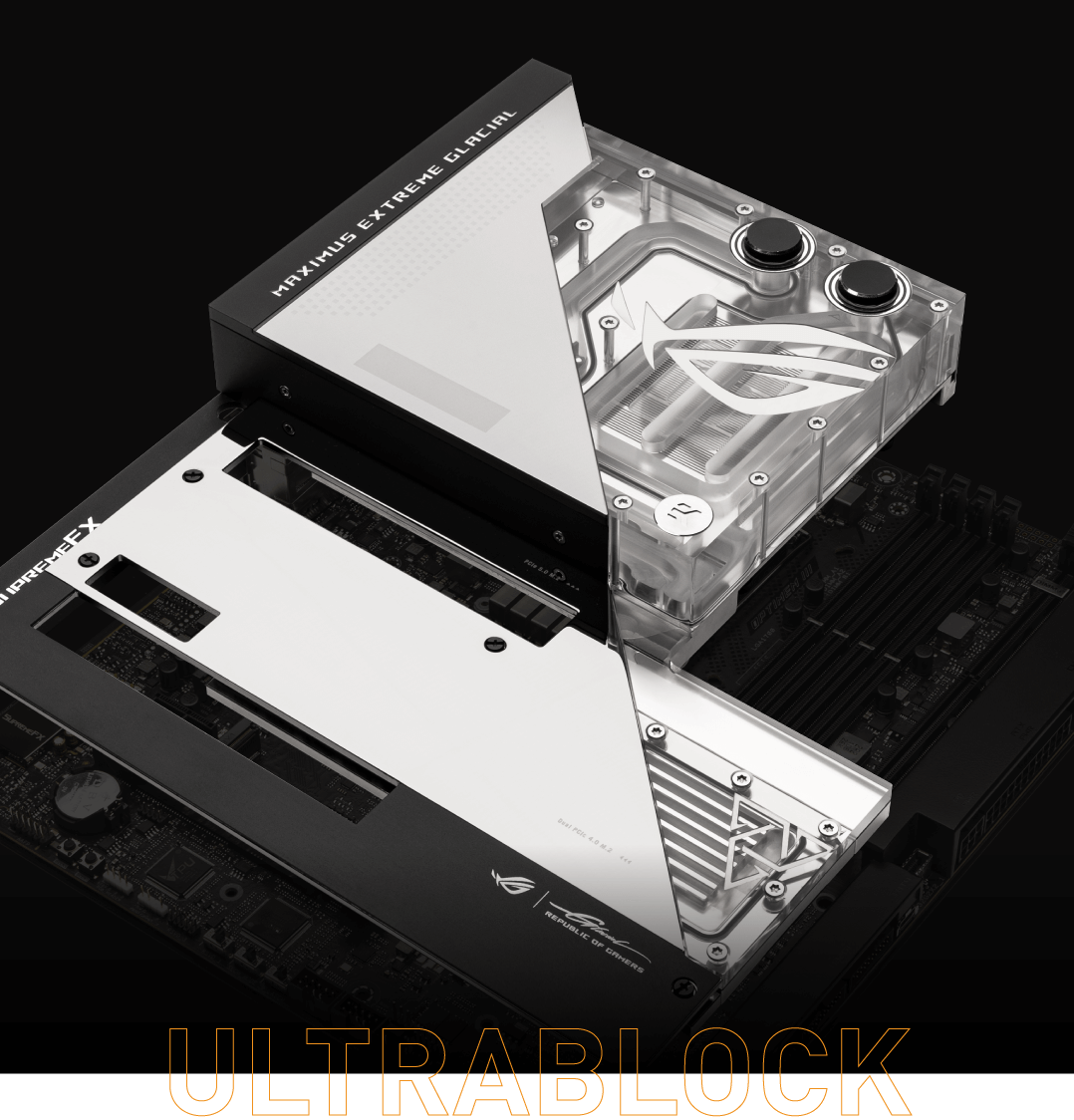

The EK-Ultrablock cold plate is CNC machined out of 99% pure electrolytic copper, which is subsequently nickel-plated to protect it from corrosion. The top CNC is machined out of a thick piece of high-quality, glass-like clear cast acrylic that reveals the entire cooling engine. A total of 57 microfins cover the main CPU cooling engine surface while custom-made, high-quality EPDM 70 O-rings are used for sealing the EK-Ultrablock.
ROG Water-Cooling Zone
Full implementation with ROG Water-Cooling Zone for crucial readout of parameters. All the relevant information is at your fingertips! An integrated temperature sensor allows you to precisely monitor coolant temperature. By measuring the coolant flow and rates, you can accurately set up your fan and pump speeds to achieve the desired performance and acoustics.

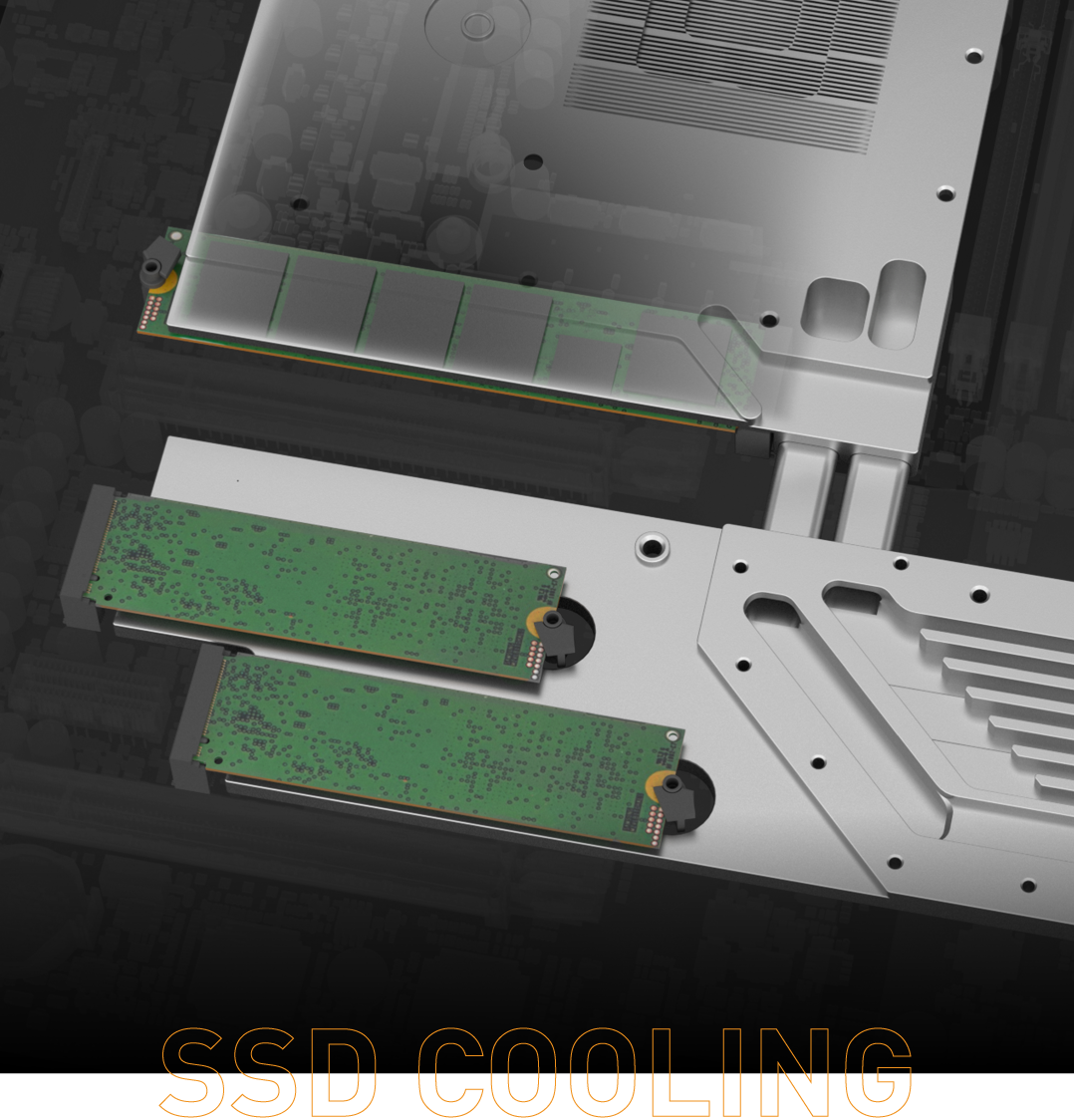

Compared to a standard Monoblock cooling solution that covers the CPU and the VRM, the EK-Ultrablock spreads across the entire motherboard and has several sensors that provide measurements of key system parameters. The custom-engineered EK-Ultrablock cooling solution offers optimal cooling for the CPU, power delivery system (VRM), network controller, M.2 drive, and Z690 chipset.
