EK Releases the Long-Awaited Reflection Distro Plate for LIAN LI O11D XL

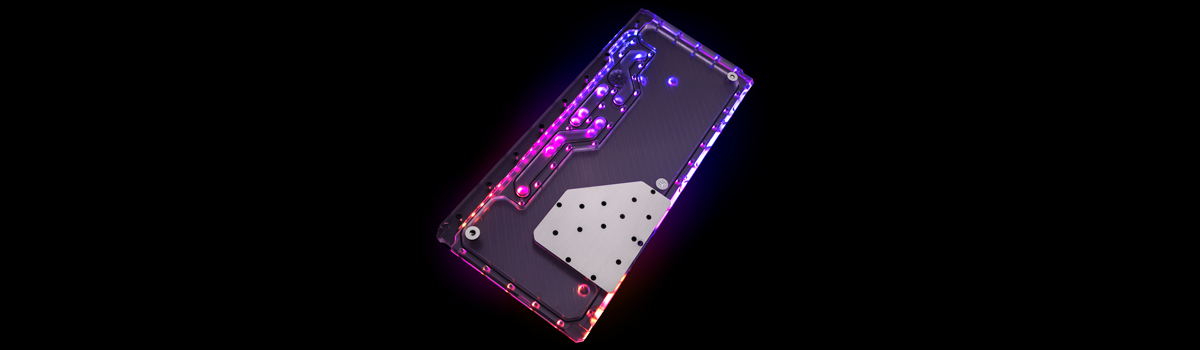

EK®, the premium water cooling gear manufacturer, is launching a distro plate specifically designed to provide advanced water cooling with the renowned D5 pump for the LIAN LI O11D XL chassis. The EK-Quantum Reflection PC-O11D XL D5 PWM D-RGB is a custom water cooling reservoir, routing, and pump solution that seamlessly fits into the front of the case. This waterway is also equipped with a physical flow indicator that gives a nice visual representation of the pump’s speed.
Designed to offer unique aesthetics and ease of use, this advanced all-in-one waterway solution also includes a pump, reservoir, simple mounting mechanism, and multiple industry-standard G1/4″ threaded inlets and outlets. The placement of these inlets and outlets is aligned to fit with other EK products in order to minimize the number of bends the user has to make when creating the loop. It was engineered to support a maximum of five components – one CPU water block, two GPU water blocks, and two radiators. The maximum radiator size with the installed distro plate is 360 PE in the top, and a 360 XE in the bottom.

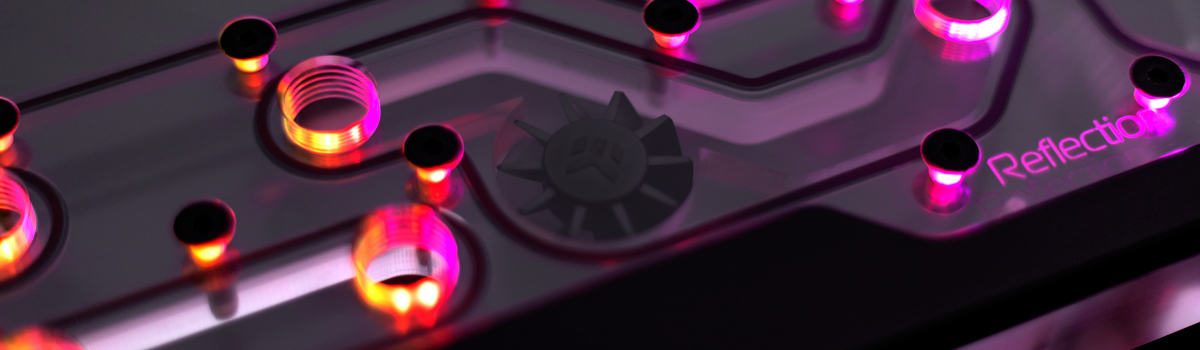

Engineered to be mounted on the front window of the O11D XL case, the EK-Quantum Reflection PC-O11D XL D5 PWM D-RGB will fit elegantly within the LIAN LI O11D XL chassis. The integrated custom-designed flow indicator impeller is a nice aesthetical touch, but it also serves the purpose of indicating the speed of the pump.

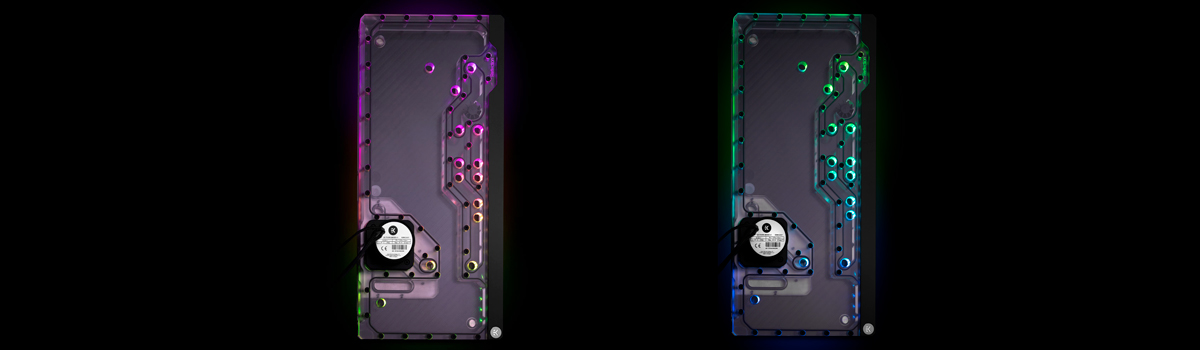

The addressable D-RGB LED strip runs down the entire length of the unit while anodized black aluminum cover hides the unwanted LED hotspots. The built-in addressable LED strip contains 28 digital LEDs and connects to the motherboard’s 5V header or EK-Loop Connect. It is also compatible with MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC, ASUS AURA SYNC, and GIGABYTE RGB FUSION 2 software for a coordinated lighting effect.
This water distribution plate comes with a powerful yet silent, PWM-controlled D5 pump. The goal was to make a product that has enough power to offer great reliability and outstanding performance with multiple blocks and radiators while keeping the noise down to a minimum.
– Dimensions with the attached pump (W x D x H): 215 x 68 x 472mm
– D-RGB LED count: 28
– D-RGB cable length: 500mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Pump Motor Technical Specifications:
– Motor: electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
– Power connector: 4-pin Molex- and 4-pin PWM FAN connector
– PWM duty cycle: ~ 20-100%
– Default behavior: runs at 100% duty cycle when no PWM feedback signal is present
Availability and Pricing
The EK-Quantum Reflection PC-O11D XL D5 PWM D-RGB distribution plate is available for pre-order through the EK Webshop and partner reseller network. This product is estimated to ship out on May 13, 2020. In the table below, you can see the manufacturer suggested retail price (MSRP), VAT included.
|Name||MSRP (incl. VAT)|
|EK-Quantum Reflection PC-O11D XL D5 PWM D-RGB – Plexi||349.90€||Order now!|
