New EK-Quantum Distribution Plate for Popular Phanteks Cases
EK®, the premium water cooling gear manufacturer is launching the EK-Quantum Reflection Evolv X D5 PWM D-RGB – a custom-designed water cooling reservoir, routing, and pump solution made to fit two Phanteks cases. This distro plate is specifically designed to provide advanced water cooling with a market-leading D5 pump for users who demand premium aesthetics, silence, and powerful flow.
Supported Phanteks cases:
- Phanteks Evolv X
- Phanteks P600S

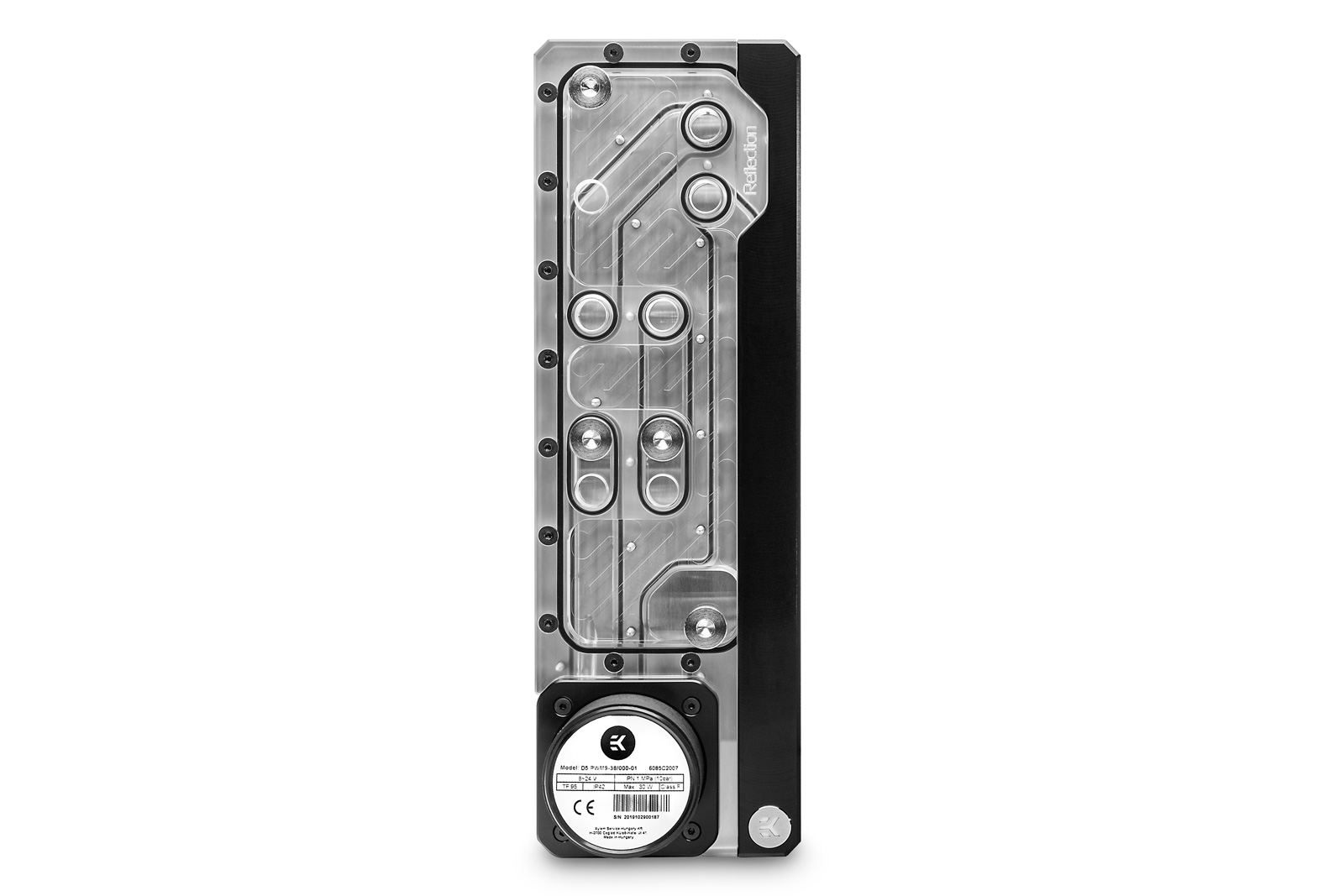

EK-Quantum Reflection Evolv X D5 PWM D-RGB
This distribution plate is designed to bring the slim-lined EK Quantum aesthetics to an already elegant case alongside high flow and silent operation thanks to its genuine D5 pump.
EK-Quantum Reflection Evolv X D5 PWM D-RGB offers an all-in-one solution that includes a D5 pump, reservoir, simple mounting mechanism, and multiple industry standard G1/4″ threaded inlet and outlets. The placement of these inlets and outlets is aligned to match other EK cooling components and to minimize the number of bends the user has to make when creating the loop. The distro plate can support up to one CPU water block, four GPU blocks, and a top-mounted radiator.
The radiator compatibility for both P600s and Evolv X with this distro plate is up to a 360mm XE radiator at the top of the chassis.
Engineered to be mounted next to a motherboard, the EK-Quantum Reflection Evolv X D5 PWM D-RGB can fit elegantly within the supported Phanteks cases. The built-in addressable D-RGB LED strip runs down the entire length of the unit while anodized black aluminum cover hides the unwanted LED hotspots. The installed addressable D-RGB LED strip connects to the motherboard 5V D-RGB (A-RGB) header through an industry-standard connector. It is compatible with all major motherboard vendor software for coordinated lighting effects. Other excellent and recommended addressable D-RGB controller units are EK-Loop Connect and the Phanteks digital controller hub.
This water distribution plate comes with a powerful and silent, PWM-controlled genuine D5 pump. Being a part of the EK Quantum Line, this is a premium product that has enough power to give excellent performance with multiple blocks. The reservoir is made of CNC-machined cast acrylic material for the glass-like appearance and rigidity.
– Dimensions with the attached pump (W x D x H): 105 x 71 x 323mm
– D-RGB LED count: 19
– D-RGB cable length: 500mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)
Pump Motor Technical Specifications:
– Motor: Electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
– Power connector: 4-Pin Molex- and 4-Pin PWM FAN connector
– PWM duty cycle: ~ 20-100%
– Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present
Availability and Pricing
EK-Quantum Reflection Evolv X D5 PWM D-RGB distribution plate is available for order through the EK Webshop. In the table below, you can see the manufacturer suggested retail price (MSRP), VAT included.
|Name||MSRP (incl. VAT)|
|EK-Quantum Reflection Evolv X D5 PWM D-RGB – Plexi||259.90€||Order now!|
