EK Introduces Offset Mounting Brackets for Pumps, Reservoirs, and Combo Units
EK®, the premium water cooling gear manufacturer based in the EU, is introducing new brackets for pumps and pump-reservoir combos. These brackets are attachable to 120 and 140mm fan mounting holes and feature a plethora of other holes to accommodate all the possible products. Another new thing about these brackets is that they are offset, allowing you to adjust your mounting orientation and offset your pump or reservoir for additional clearance or easier tube routing.

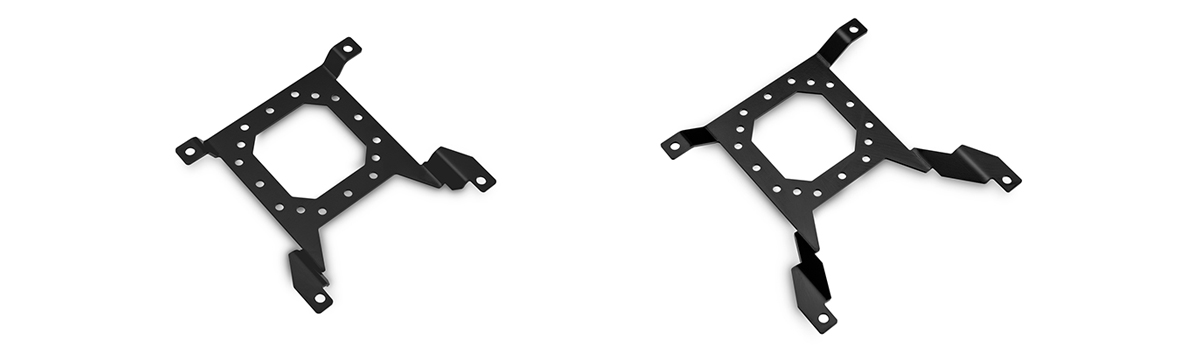

EK-Loop UNI Pump Reservoir Brackets 120mm & 140mm

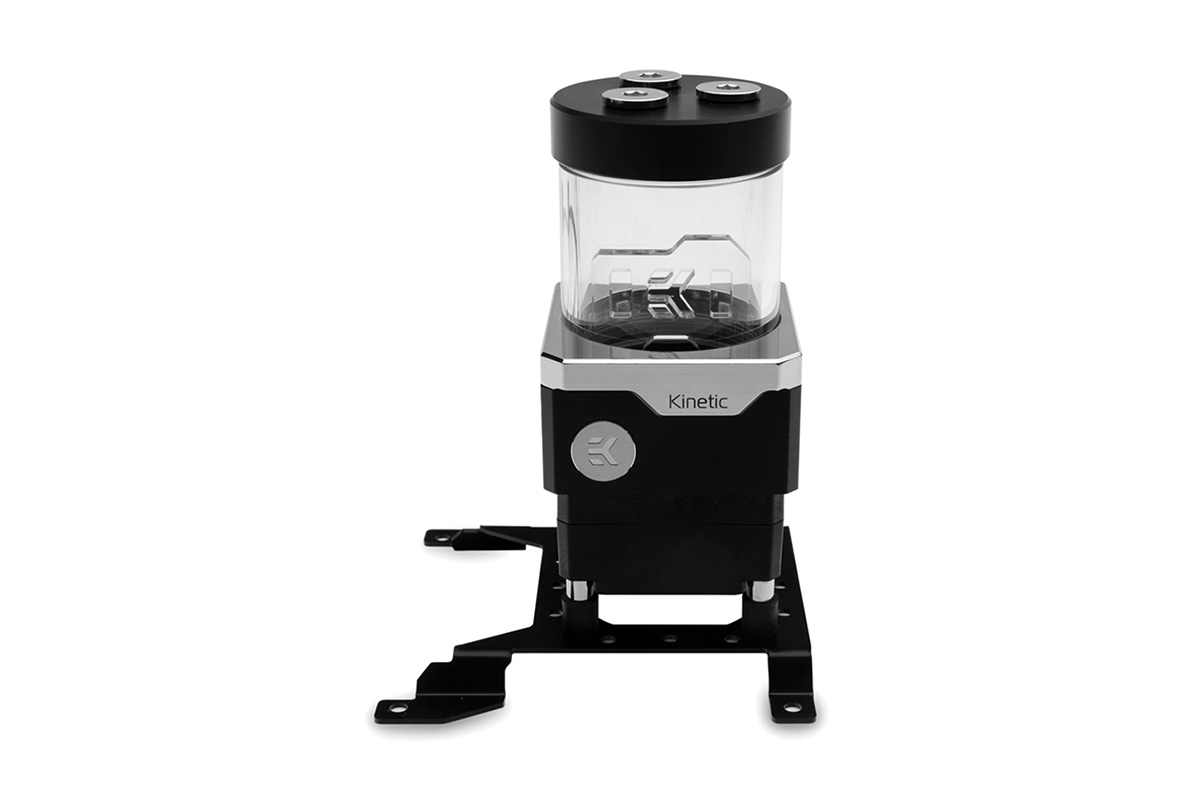

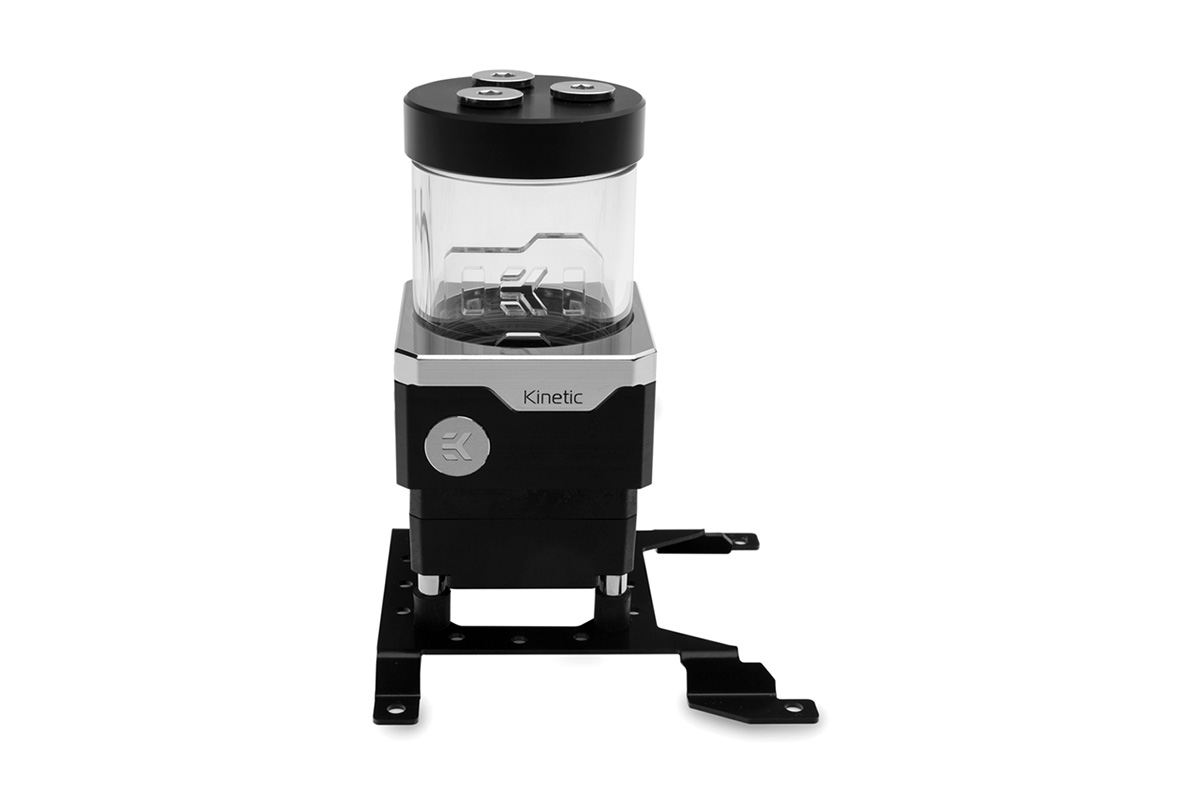

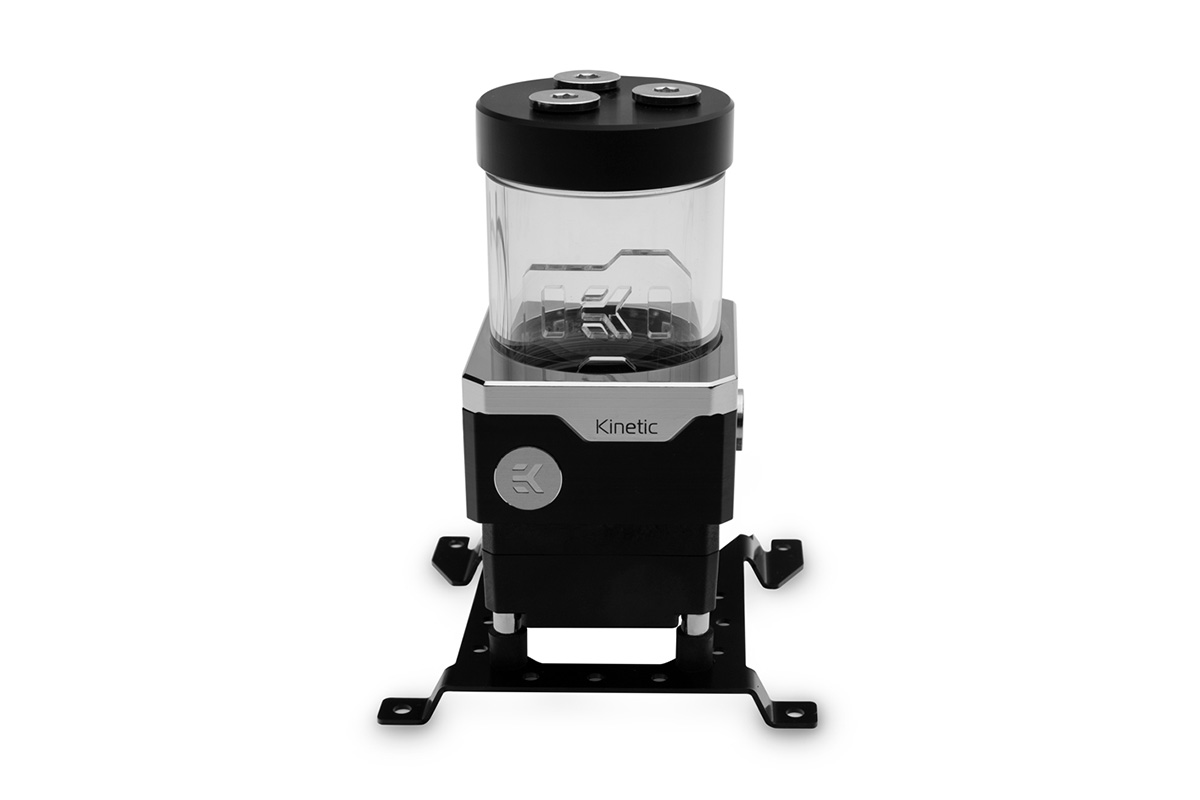

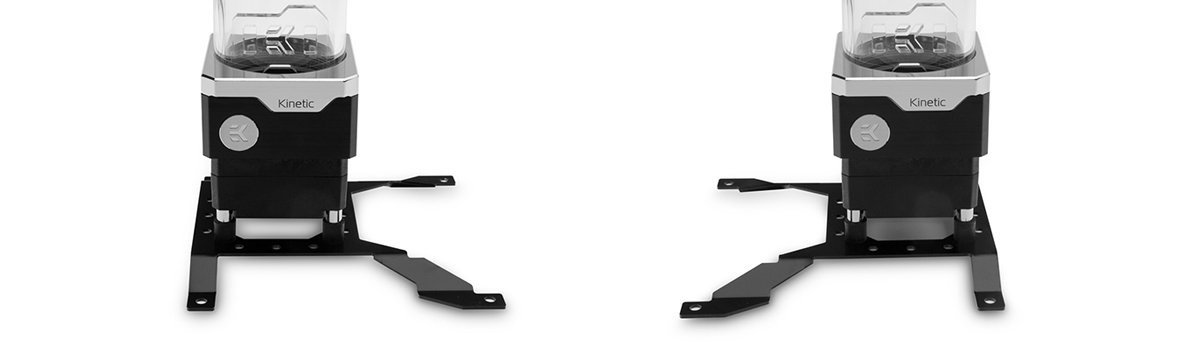

The new EK-Loop UNI Pump Reservoir brackets can be mounted to any 120mm (105mm hole spacing) or 140mm (125mm hole spacing) fan mounting holes depending on the model of the bracket. They can be mounted either vertically or horizontally. The offset on the bracket allows for precise placement of the pump or reservoir according to your needs for clearance or easier tube routing. The offset can be moved left, right, up, or down.
The EK-Loop UNI Pump Reservoir Brackets can be used to mount any EK D5, DDC, or VTX standalone pump, pump-reservoir combo, or standalone reservoir. EK-RES X3 Holder 60mm (2pcs) can be used in any two holes and to mount the tube of any EK X3 or TBE reservoir or combo unit. The D5 based units use a 65x34mm hole spacing, while the DDC and VTX units use the 50x50mm hole spacing on the bracket for their specific mounts.
Full list of compatible products:
– Vertical: EK-Quantum Kinetic TBE D5 series (any)
– Vertical: EK-XRES Revo D5 series (any)
– Vertical: EK-XRES X3 series (any)
– Horizontal: EK-XTOP DDC series (any)
– Horizontal: EK-XRES SPC Classic series (any)
– Horizontal: EK-Quantum Kinetic TBE DDC series (any)
– Horizontal: EK-Quantum Kinetic TBE VTX series (any)
– Horizontal and vertical: EK-XTOP Revo D5 series (any)
The EK-Quantum Kinetic FLT series of reservoirs will soon be getting their own bracket for the alternative mount.
Availability and Pricing
The EK-Loop UNI Pump Reservoir Brackets are made in Slovenia, Europe, and are available for order through EK Webshop and Partner Reseller Network. In the table below, you can see the manufacturer suggested retail price (MSRP), VAT included.
|Name||MSRP (incl. VAT)|
|EK-Loop UNI Pump Reservoir Bracket – 120mm||6.90€||Pre-Order now!|
|EK-Loop UNI Pump Reservoir Bracket – 140mm||8.90€||Pre-Order now!|
