EK introduces new ASUS® ROG Matrix water blocks
EK Water Blocks, Ljubljana-based premium liquid cooling gear manufacturer, is excited to introduce two new Full Cover water block for custom circuit board design NVIDIA® and AMD® powered ASUS® Republic Of Gamers Matrix series graphics cards – ROG MATRIX-GTX780TI and -MATRIX-R9290X-P-4GD5.

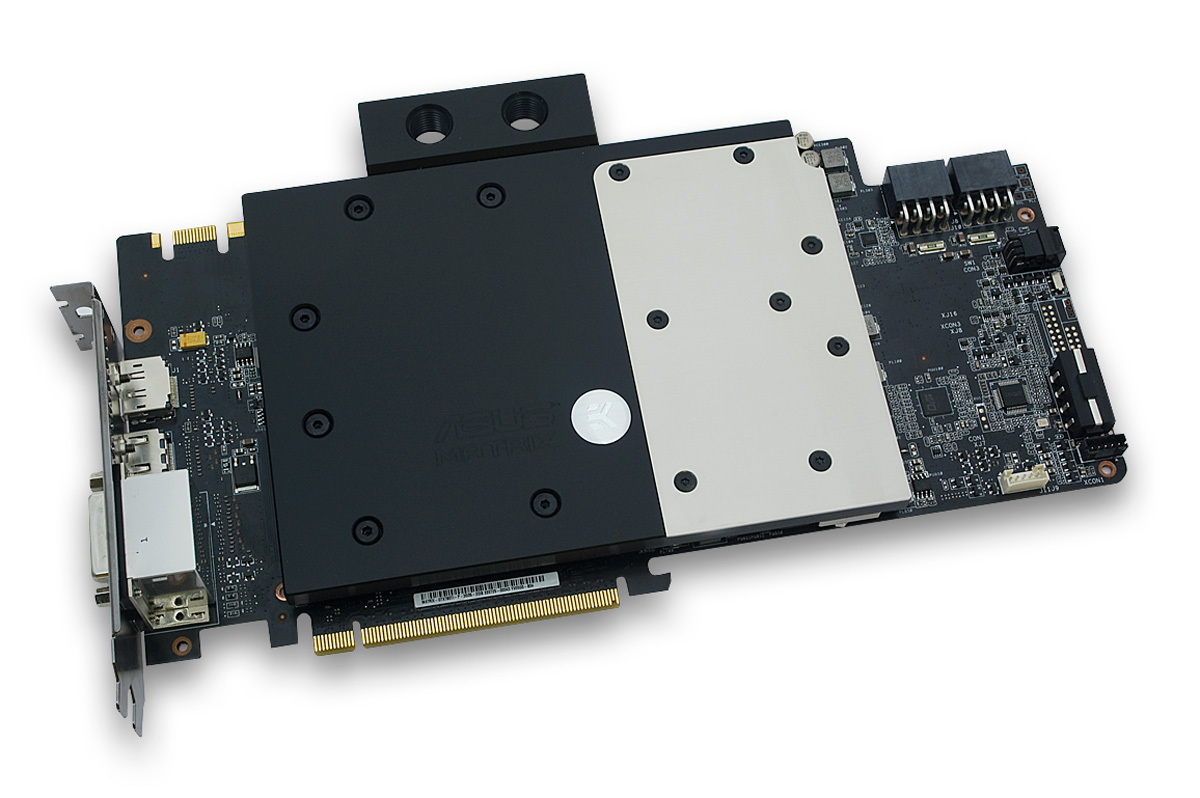

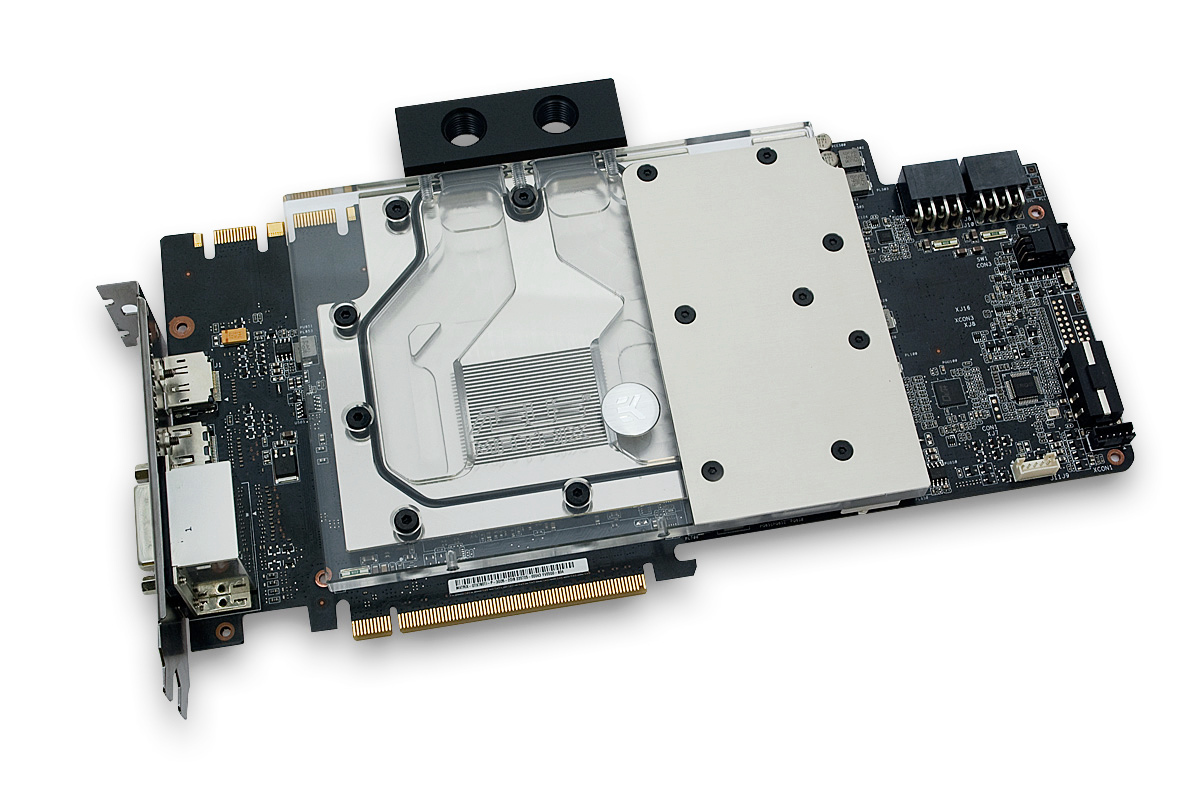

EK-FC780 GTX Ti Matrix as well as EK-FC R9-290X Matrix directly cool the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it’s VRM to remain stable under high overclocks. These CNC machined Full Cover water blocks also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

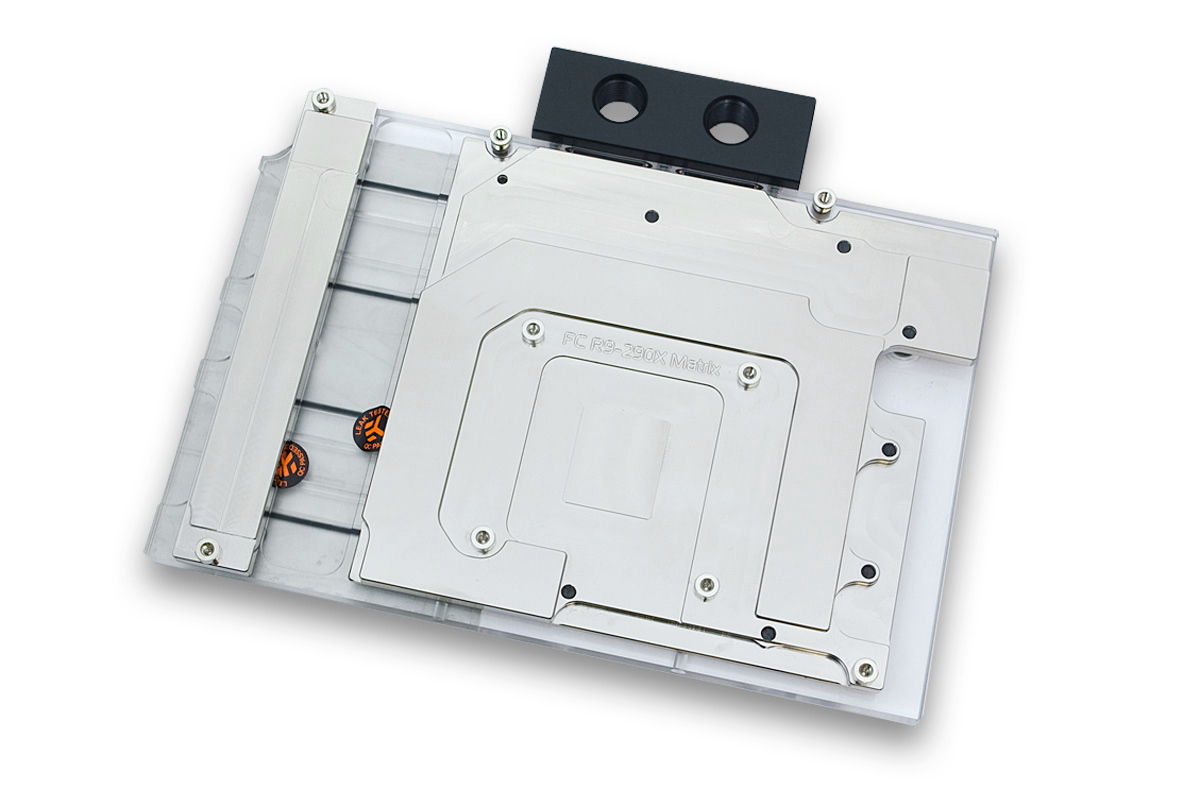

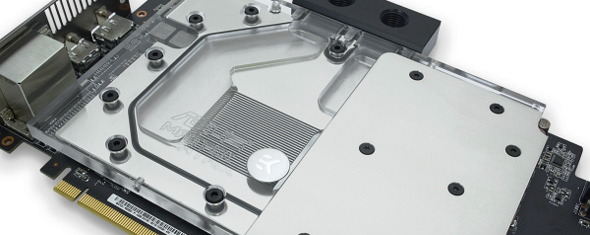

Base is made of nickel-plated electrolytic copper while the top is made of quality cast acrylic material or POM Acetal (depending on the variant). Screw-in brass standoffs are pre-installed and allow for safe installation procedure. The cooling engine uses refined 0.6mm wide microchannel structure to even further improve the heat transfer while not sacrificing the famous low hydraulic restriction design.
Up to four EK-FC780 GTX Ti Matrix or -R9-290X Matrix series water blocks can be interconnected with EK-FC Terminal which allows for hassle-free piping job. The product is readily available for purchase through EK Webshop and Partner Reseller Network and each comes in two different variants. An aesthetic retention backplate is also available:
||MSRP (incl. VAT)
|EK-FC780 GTX Ti Matrix – Nickel||FC Terminal / HD Tube||114,95€|
|EK-FC780 GTX Ti Matrix – Acetal+Nickel||FC Terminal / HD Tube||116,95€|
|EK-FC R9-290X Matrix – Nickel||FC Terminal / HD Tube||114,95€|
|EK-FC R9-290X Matrix – Acetal+Nickel||FC Terminal / HD Tube||116,95€|
|EK-FC780 GTX Ti Matrix Backplate – Black||–||34,95€|
|EK-FC R9-290X Matrix Backplate – Black||–||34,95€|
Made in Slovenia – Europe!
In order to simplify the search for suitable and compatible water block EK is adding newly released graphics cards and motherboard from various manufacturers to EK Cooling Configurator database and compatible graphics cards are being added to the list on daily basis:
