Additional mounting plates for EK-VGA Supremacy
EK Water Blocks has recently released three new mounting plates for EK-VGA Supremacy series water blocks in order to further expand the compatibility of this highest performing GPU water block. These additional mounting plates extend the compatibility to support graphics cards with less common mounting pattern:

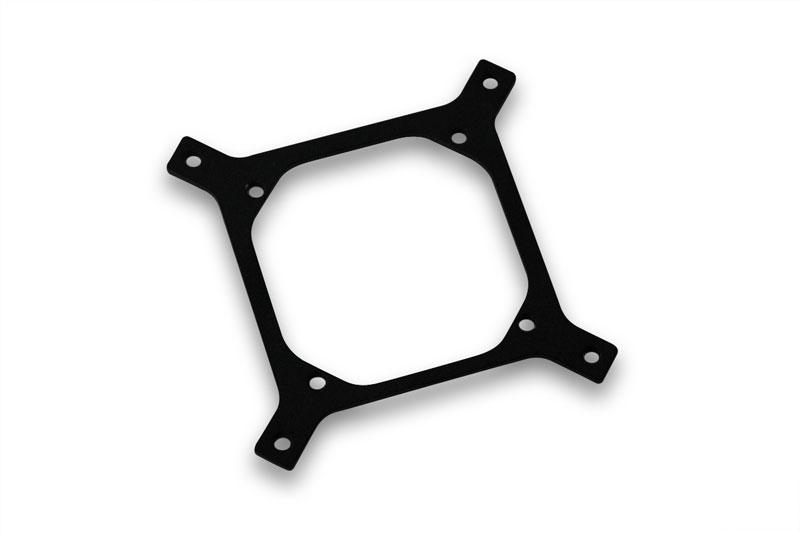

Mounting plate VGA Supremacy GF560 allows aforementioned water block to be installed on majority of GeForce GTX 460- and 560 (Ti) graphics cards with mounting holes pattern 51 x 60.9mm.

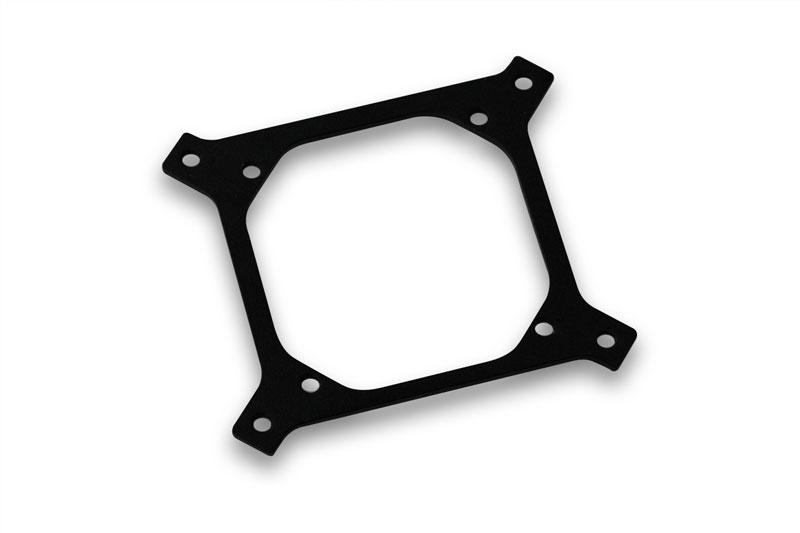

Mounting plate VGA Supremacy GF2x0 allows aforementioned water block to be installed on majority of GeForce GTX 200 series graphics cards (i.e. GeForce GTX 260/275/280/285) with mounting holes pattern 61 x 61mm.

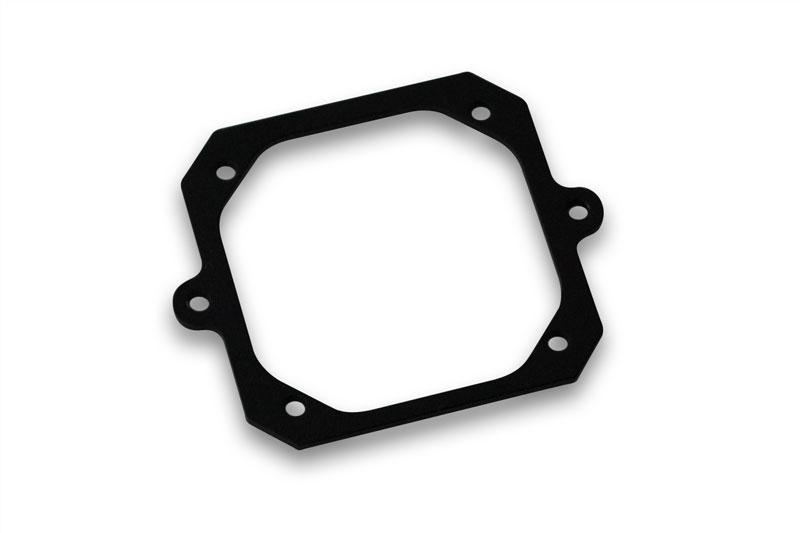

Mounting plate VGA Supremacy HD6770 allows aforementioned water block to be installed (rotated 45°) on majority of AMD Radeon HD 5500/5600/5700, HD 6500/6600/6700 as well as HD 7750 series graphics cards with mounting holes square pattern 43 x 43mm. Please note this mounting plate allows for use of two mounting screws only. The water block needs to be installed rotated 45° in either direction.
All mounting plates are made of plack painted 2mm thick steel plate. 2mm Allen key needed to dissasemble your EK-VGA Supremacy series water block is enclosed with each mounting plate.
Made in Slovenia, EU!
