As the most advanced EK CPU water block to date, Magnitude delivers lower temperatures with less hydraulic restriction across all platforms.
From the solid aluminum frame to the integrated mounting mechanism, all details of Magnitude were engineered without compromise.
With modular design in mind, you can choose different materials, colors, and lighting options to make your Magnitude more personal.

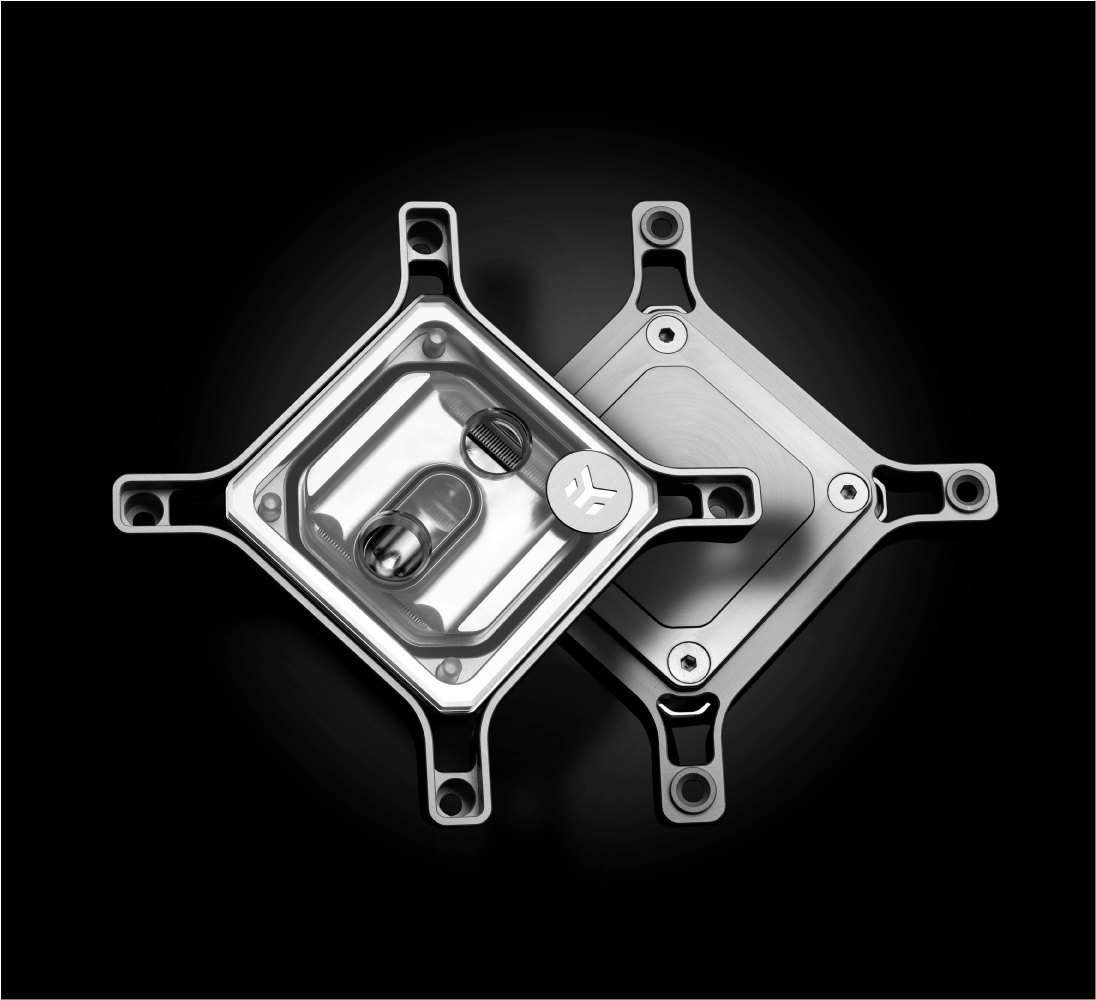

Engineered from scratch, Magnitude was built to dominate and carve a new path without limits. Specialized manufacturing techniques were deployed for the first time to create a truly unique product. All components are bespoke, inside and out, developed specifically for the task, and honed to perfection with thousands of design and testing hours.

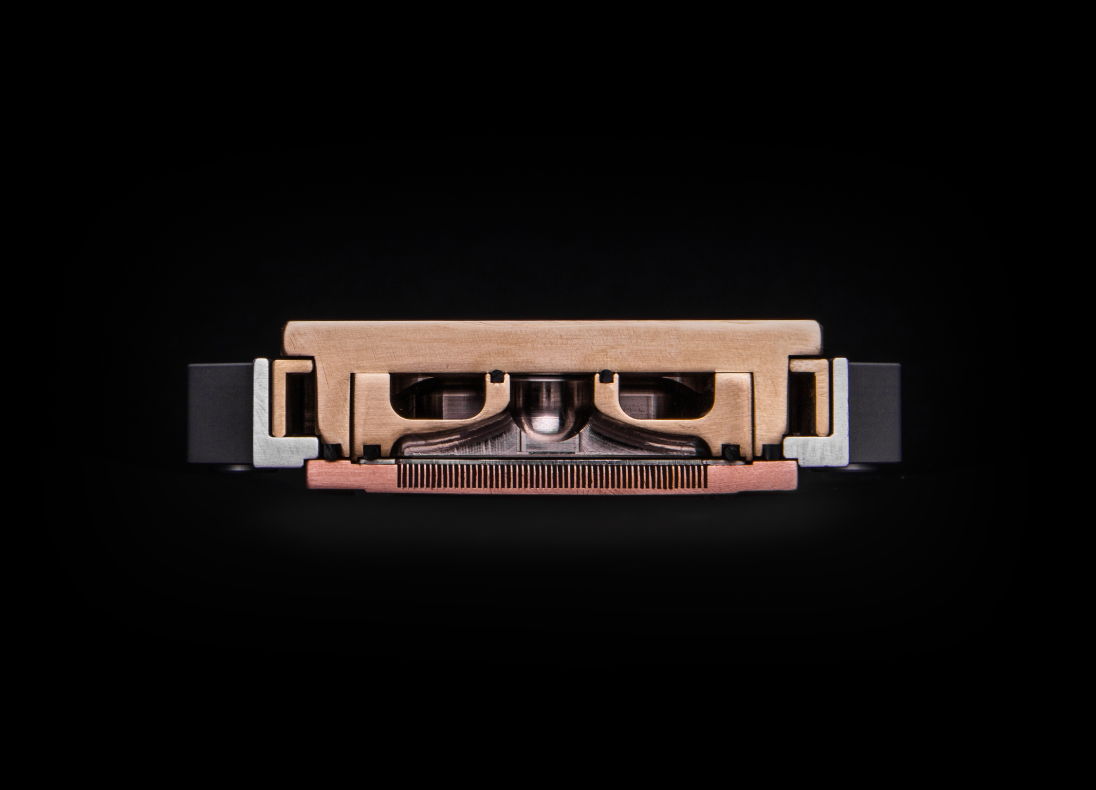

At the heart of Magnitude lies the CNC-machined solid brass insert. This component made it possible to significantly enlarge and optimize the cooling engine. Compared to previous generations of water blocks, the fin array has a 50% bigger surface area, all contained in a smaller footprint to ensure maximum compatibility. The copper cold plate uses 0.40mm wide microchannels and 0.26mm thick microfins to maximize the thermal transfer with minimal flow restriction.
To outshine the competition and ensure the perfect fit and flow distribution for each platform, individual optimizations were required. The cold plates are machined with two precise curvatures allowing for the best physical contact with every CPU IHS. Three inserts and two jet plate designs in multiple thicknesses are also combined to manipulate the flow and apply pressure exactly where it’s needed.
Clean industrial design truly sets the Magnitude apart, with every piece being CNC-milled out of a solid piece of material. The mounting mechanism is ether a three-dimensional X- or H-shaped aluminum piece, making the screws a seamless part of the water block. Strong edges and chamfers root this award-winning icon firmly among the EK Quantum line. Magnitude is proudly bearing the prestigious iF Design Award.

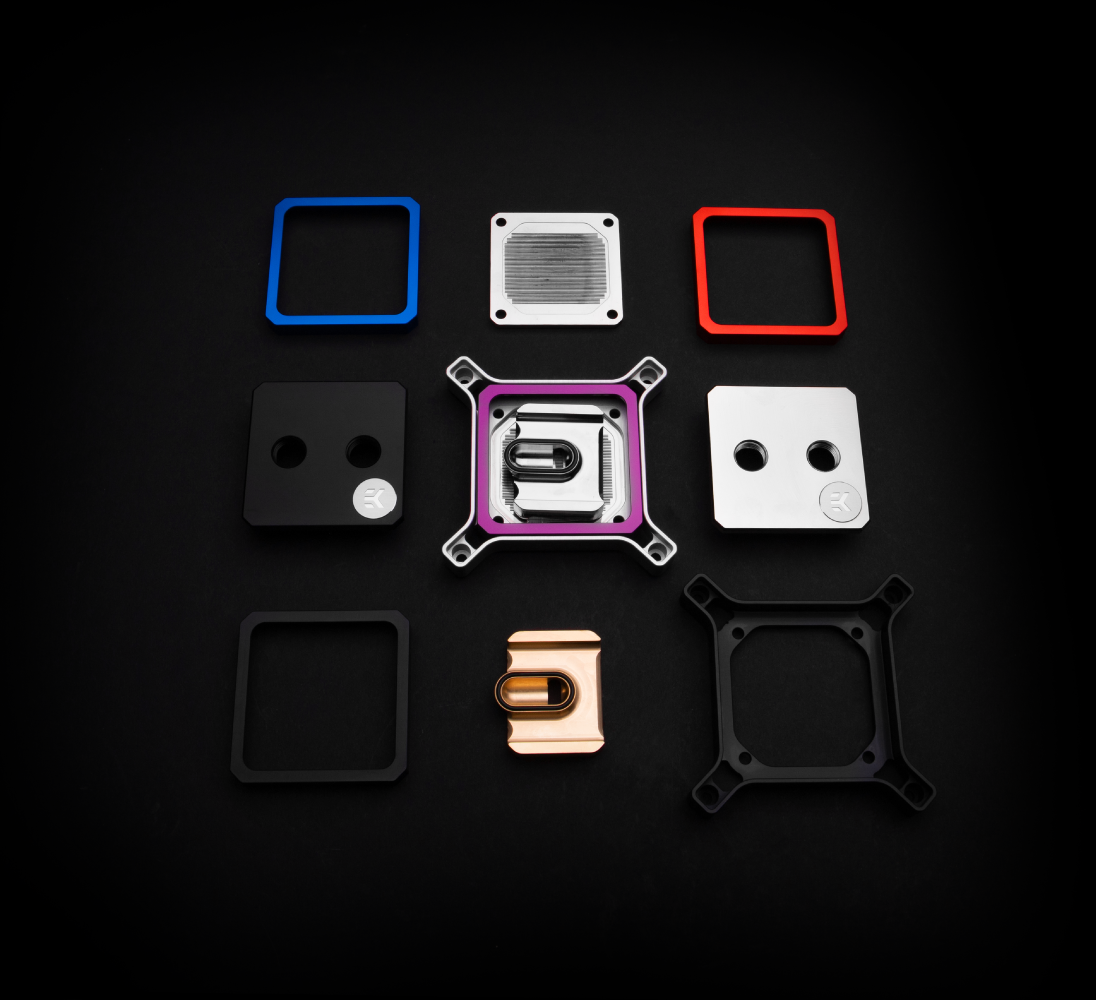

Magnitude is not just tailor-made for each socket; it can also be configured to complement every individual build. The aluminum frame reveals a subtle interchangeable accent available in various colors, finishes, and materials. For special applications such as custom IHS where the curvature is not necessary, Magnitude can also be fitted with a flat cold plate.

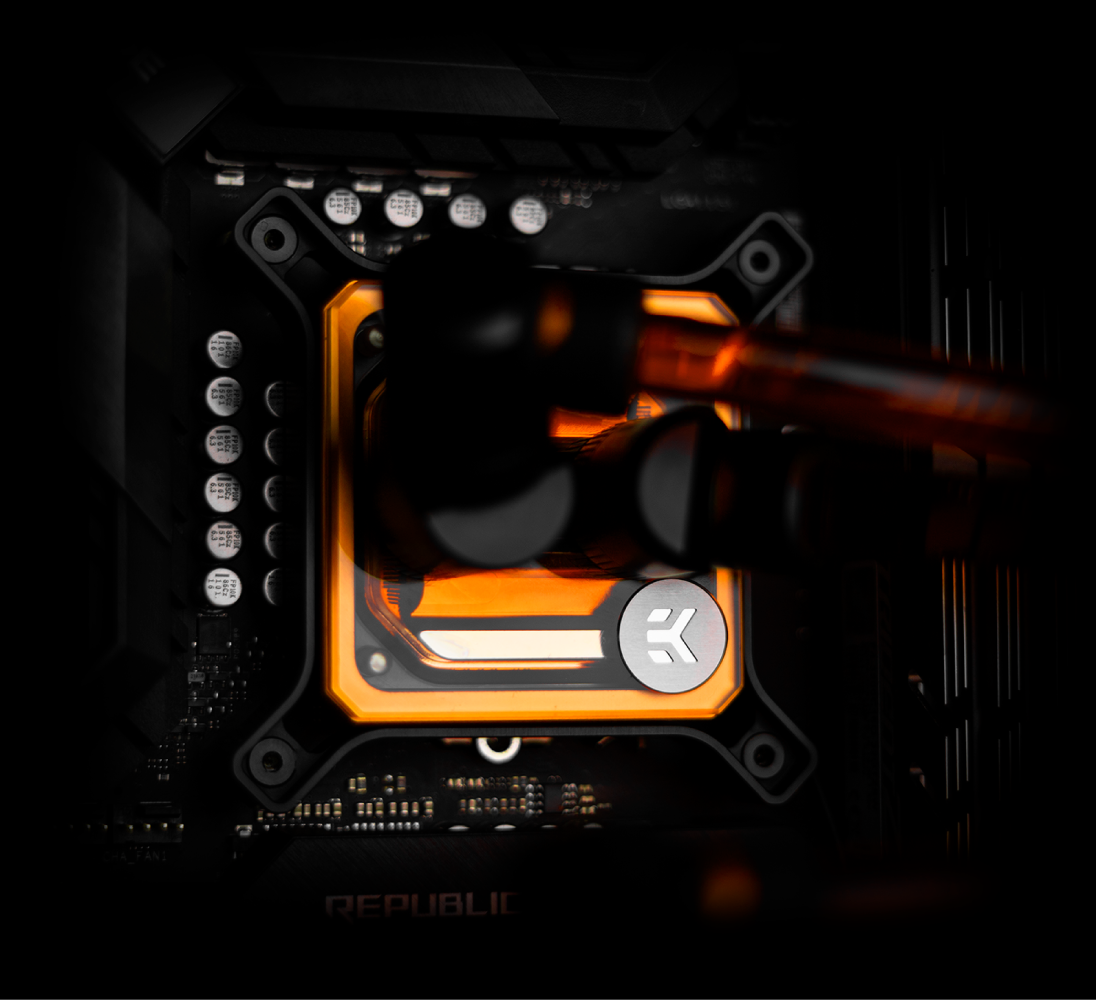

On D-RGB versions, elegantly concealed under the aesthetic inner frame, is the LED strip boasting incredible 30 individually addressable RGB diodes. Versions without implemented lights can be upgraded later on with an LED strip and a special white accent for light dispersion. Plexi versions of blocks are illuminated inwards, evenly lighting coolant and the entire top, while those with an opaque top are bordered by a halo of colorful lights.
EK-Quantum Magnitude comes in 115x, 20xx, and AM4 optimized configurations, with each being available in four different material versions.

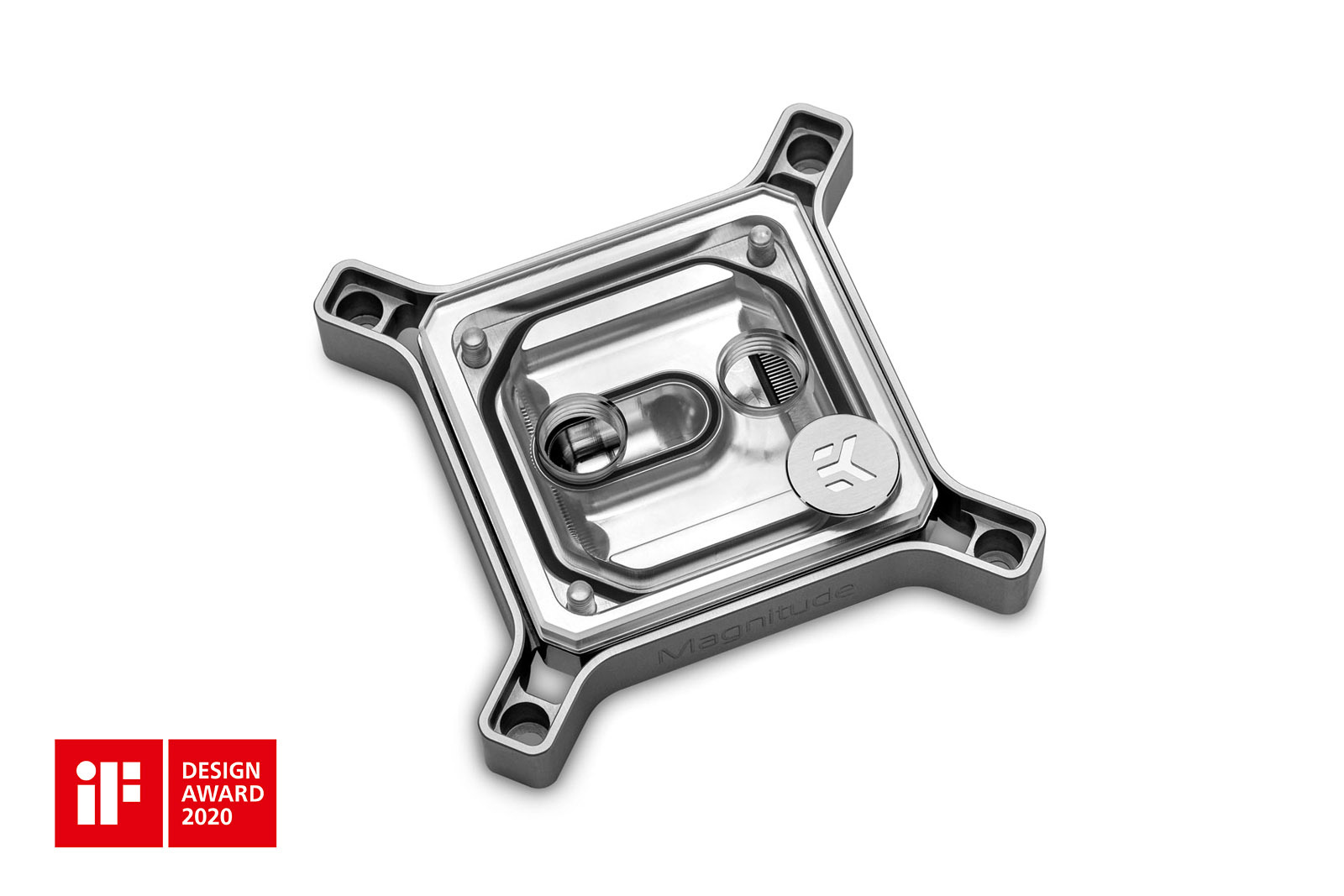

The 115x version of the water block is using a specific combination of flow distribution insert, mounting pressure, and cold plate geometry tailored for the IHS and die layout of Intel 115x socket processors. The design accentuates an integrated X-shaped, three-dimensional frame with premium finishes.

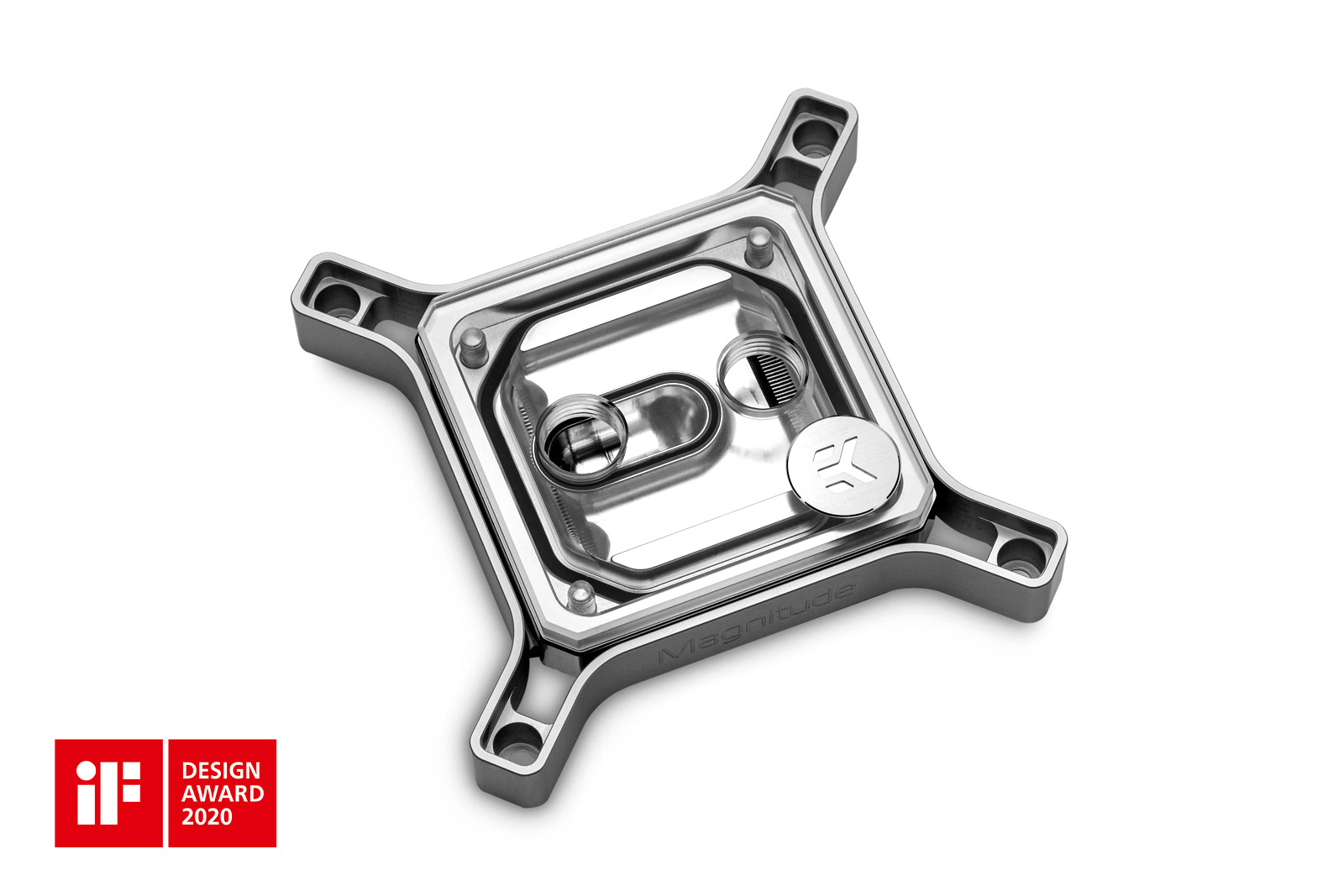

The 20xx version of the Magnitude water block is using a specific combination of flow distribution insert, mounting pressure, and cold plate geometry tailored for the IHS and die layout of Intel HEDT 20xx socket processors. The design highlights an integrated X-shaped, three-dimensional premium frame.

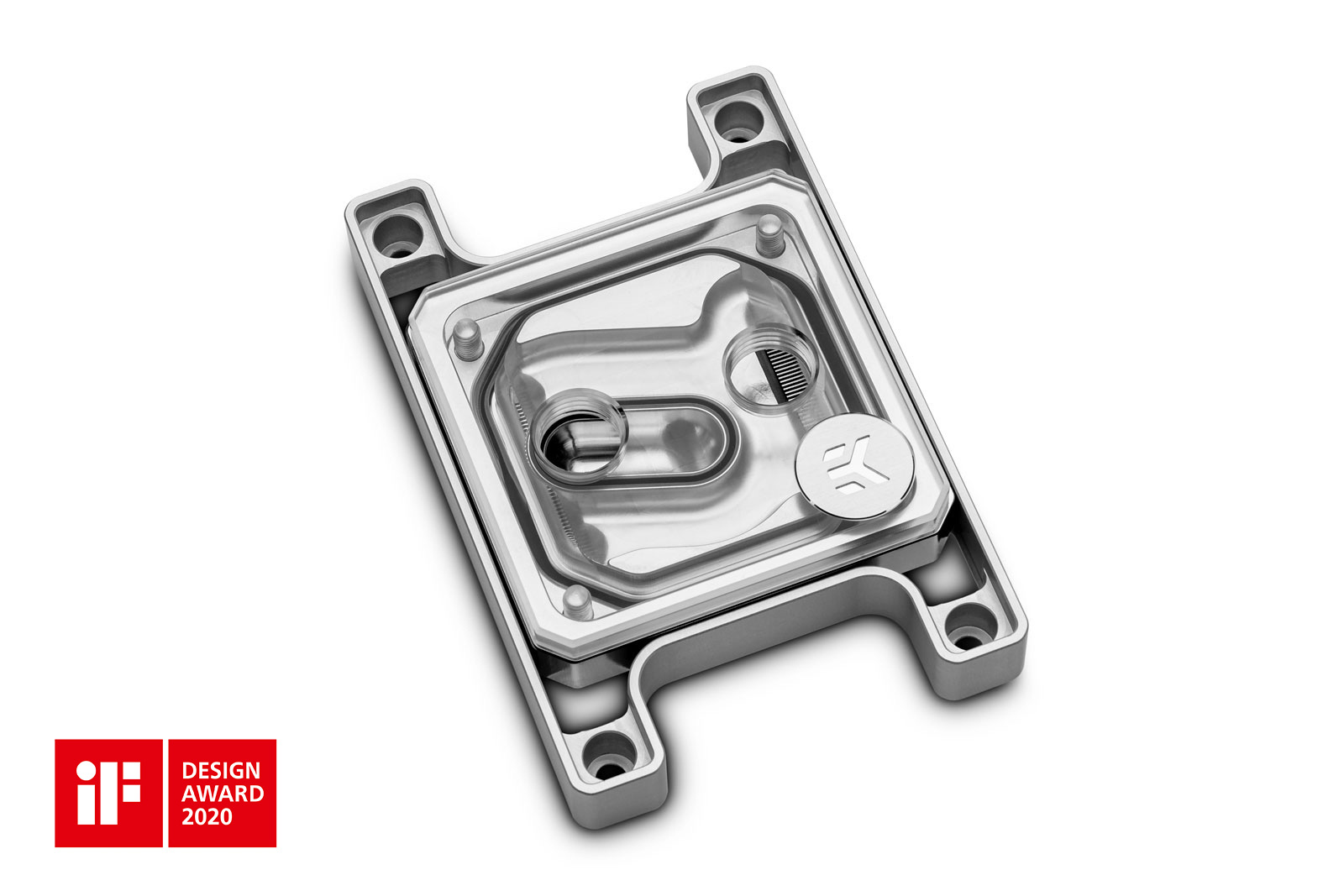

The AM4 version is using a specific combination of flow distribution insert, mounting pressure, and cold plate geometry tailored for the IHS and chiplet layout of AMD AM4 socket processors. The design accentuates an integrated H-shaped, three-dimensional frame with premium finishes.
