Shop the Loop - Zen Lotus

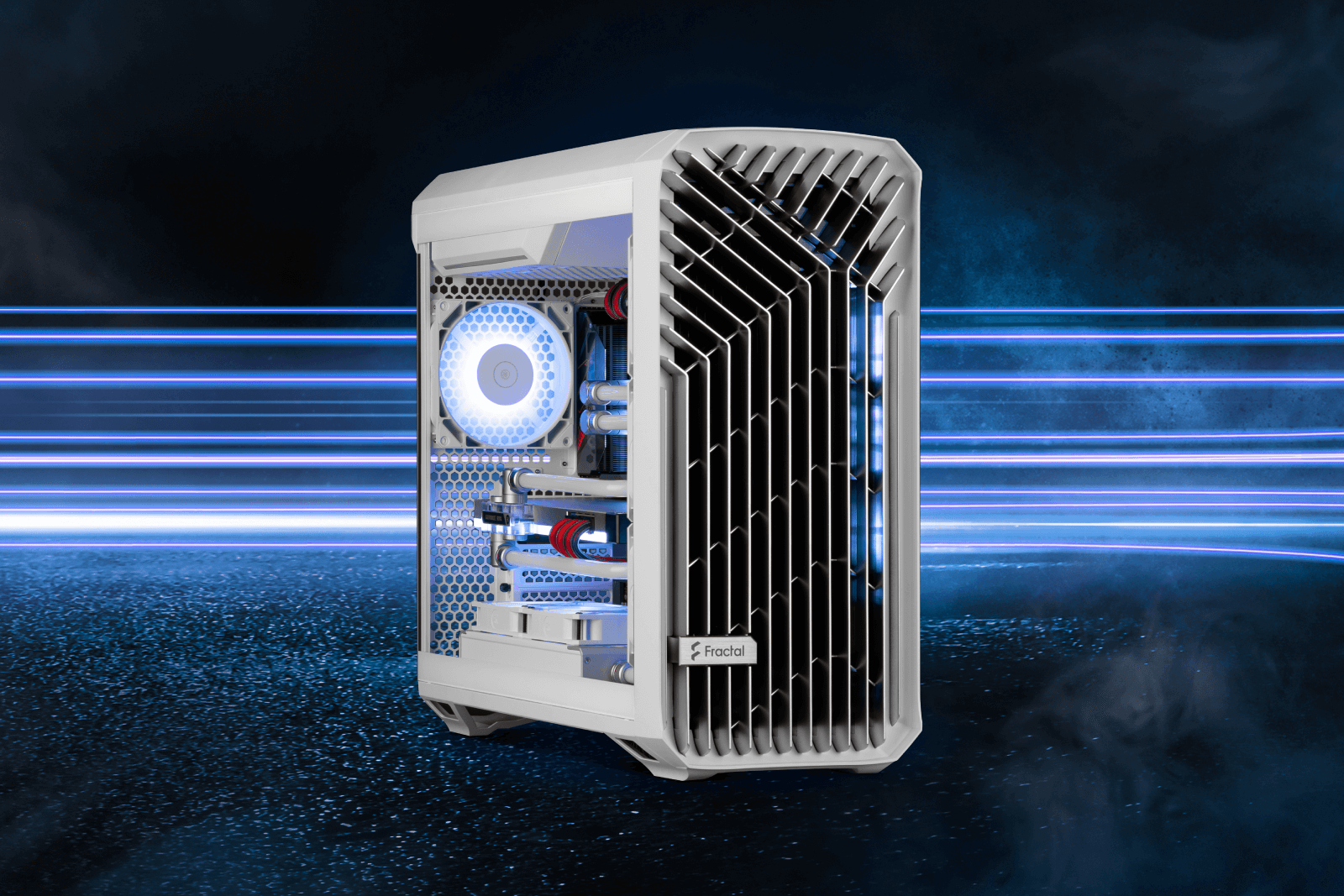

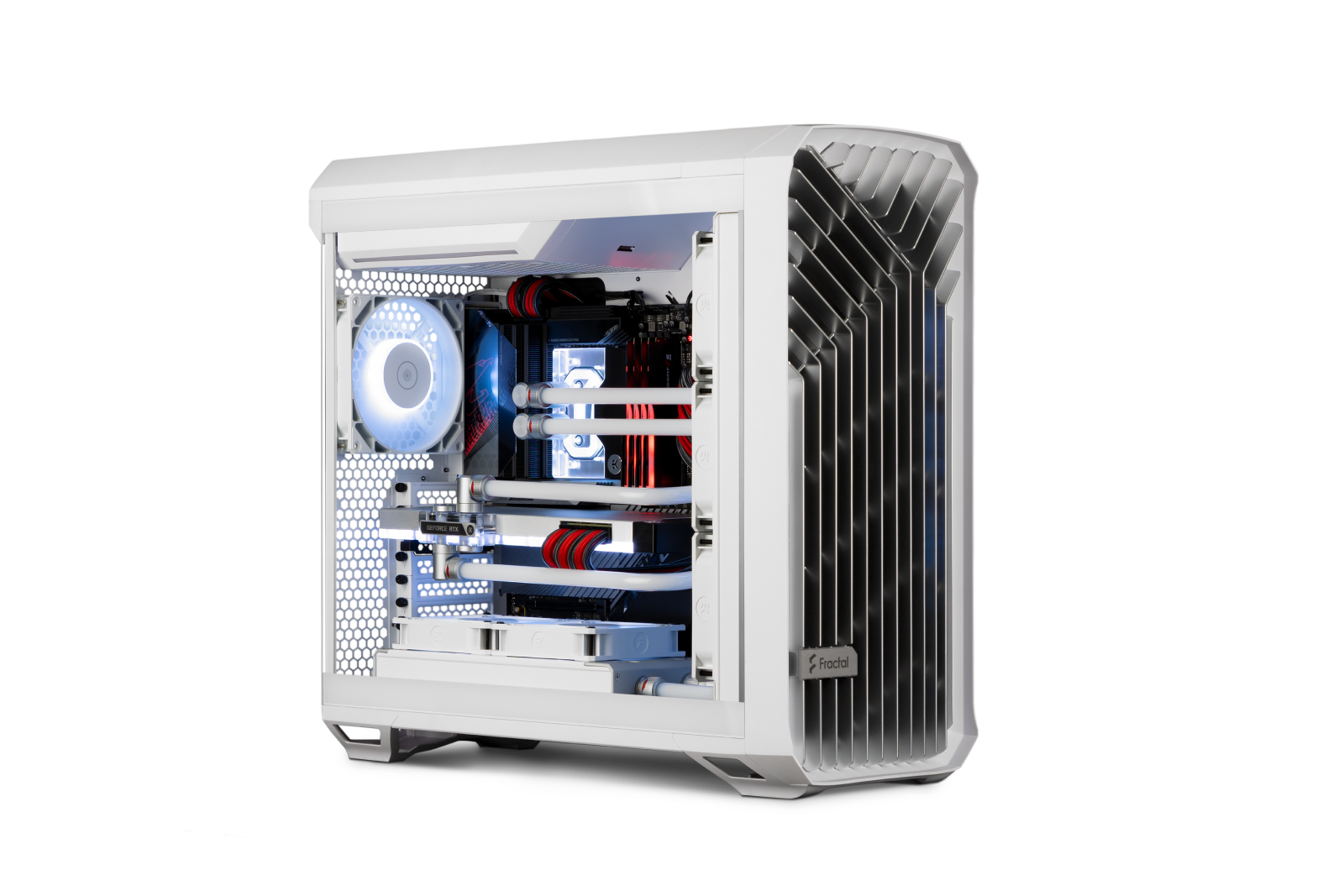

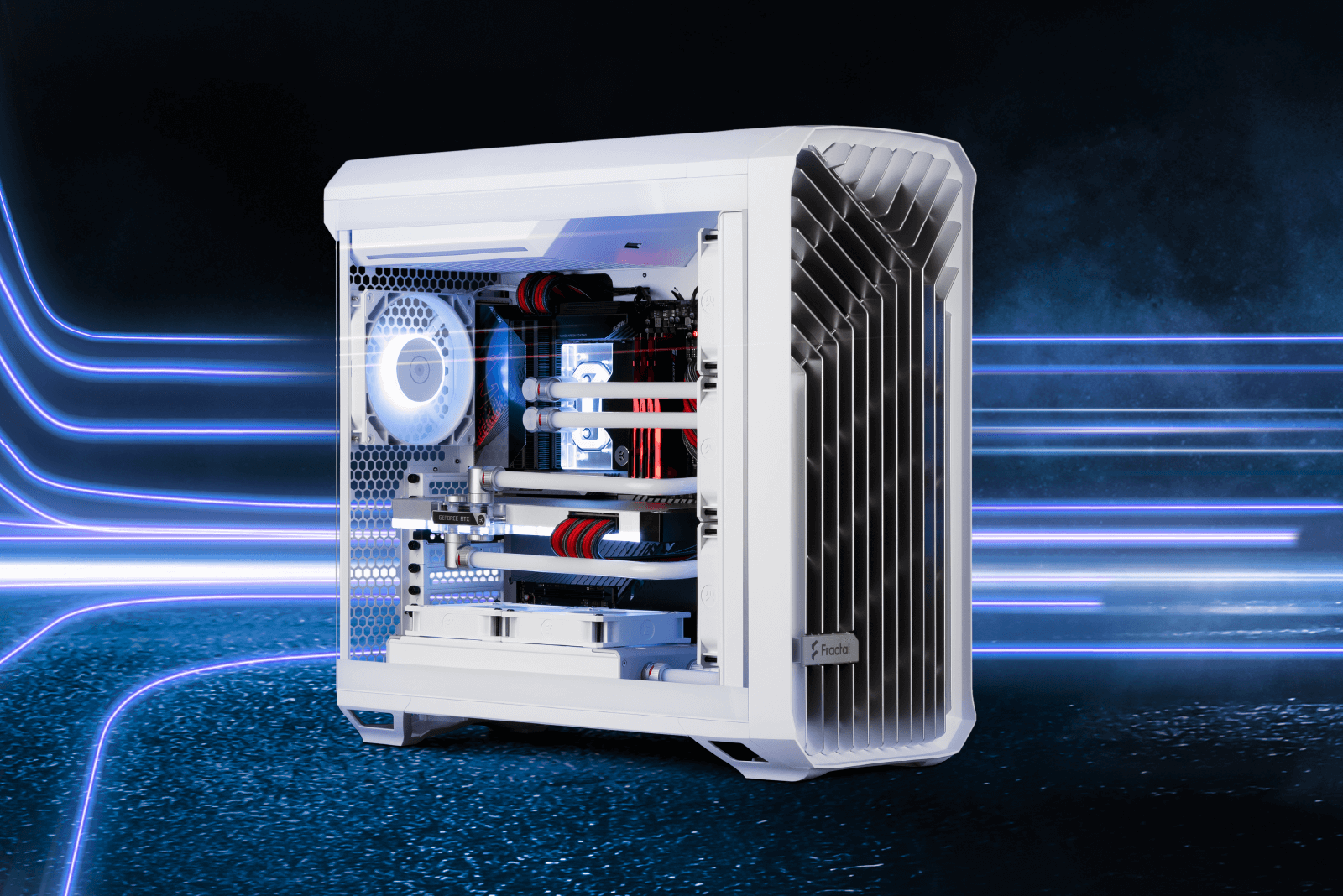

The gorgeous white Torrent PC case from Fractal Design is now fully equipped with its own tailor-made distribution plate that features the front bracket for a 360 radiator, allowing the front panel shape to be followed perfectly. With two P-sized radiators, one at the front and one at the bottom, along with other top-of-the-line liquid cooling components from EK, this loop is aesthetically superior, ready to tackle all the heat, and keep both you and your PC hardware cool.


About the Build

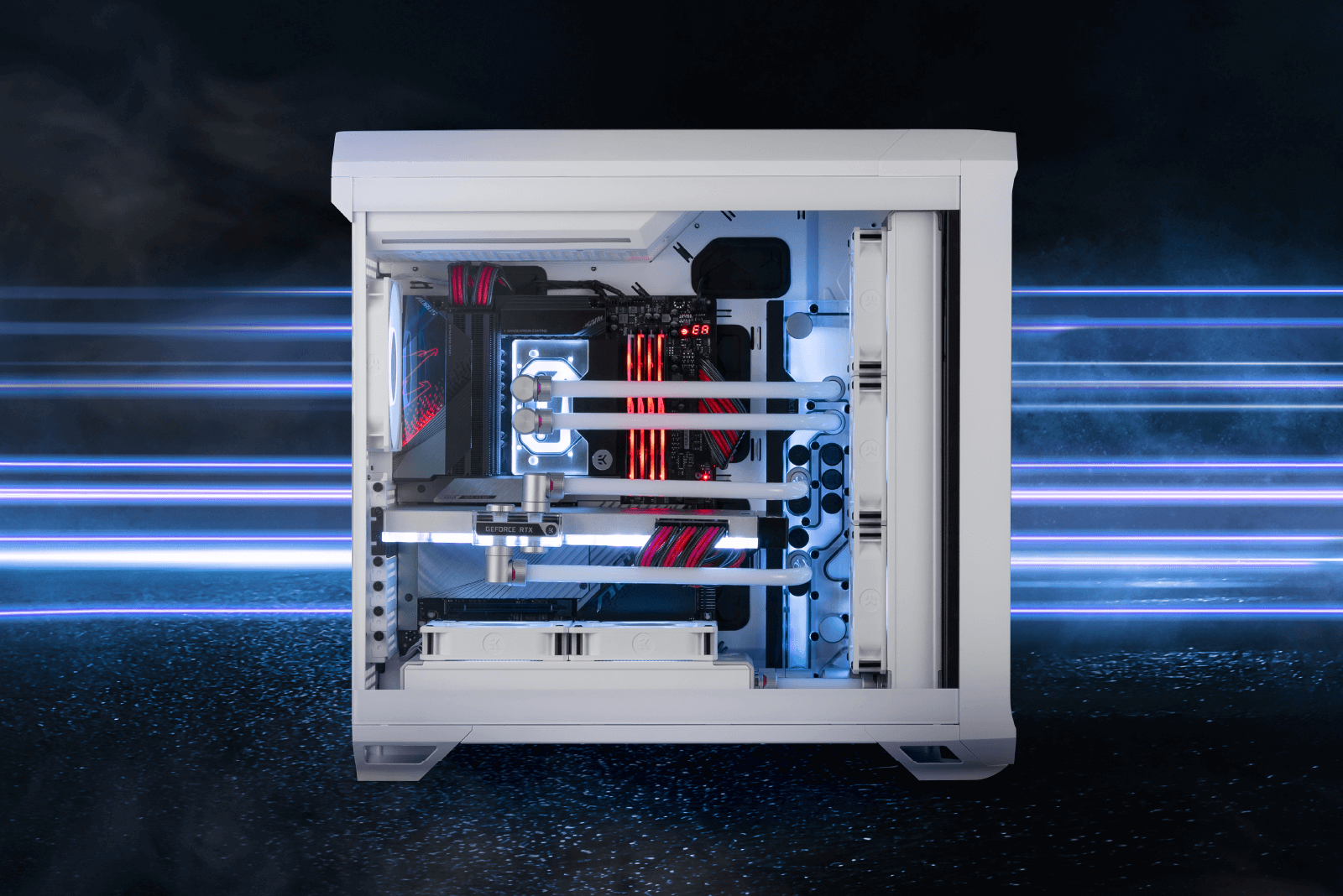

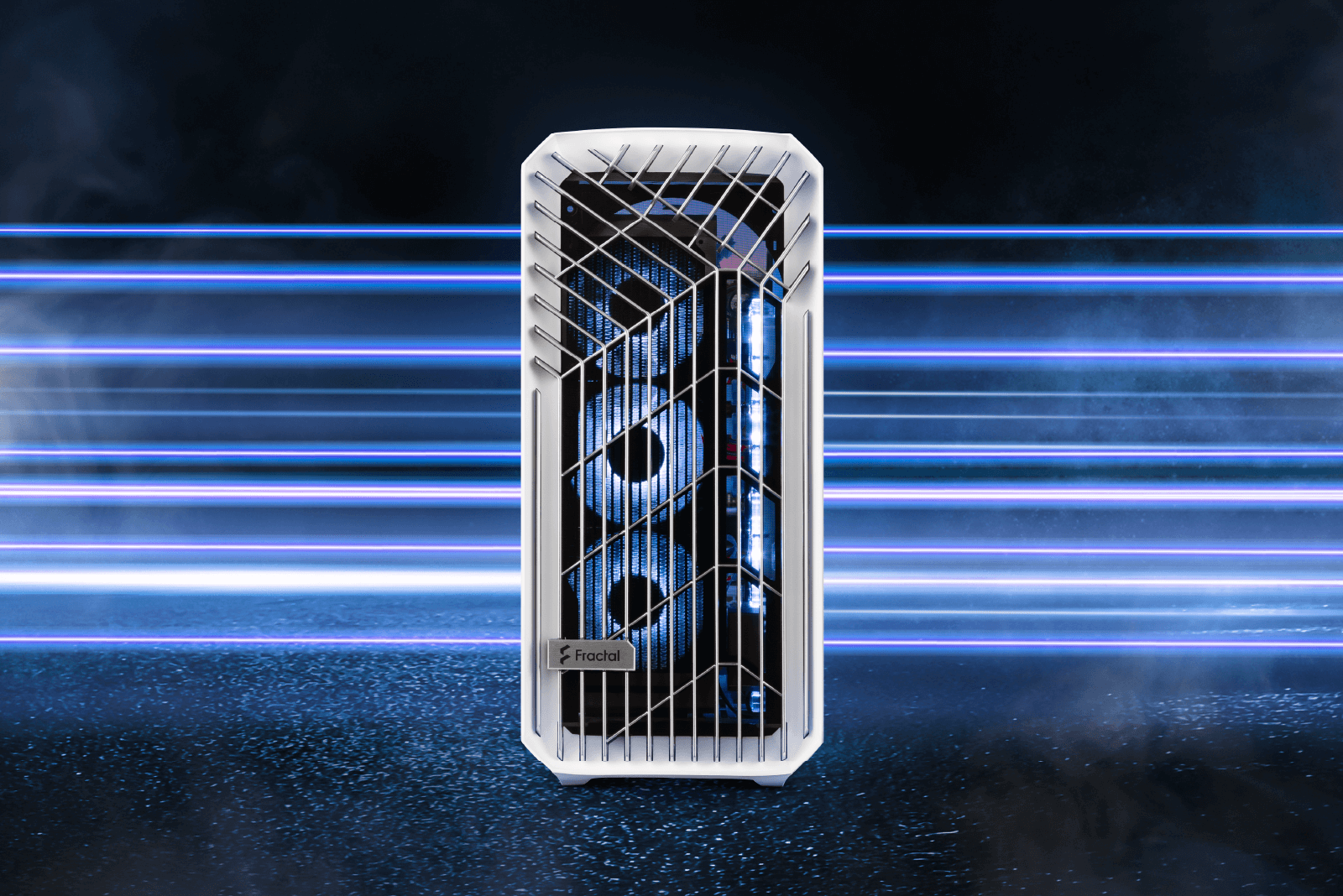

With all the components being EK-Matrix7 compliant, it is easy to see the simplicity of the build. The front EK-Quantum P360M Surface radiator, coupled with the all-new FPT fans in matching white color, means that this build packs the latest and best from EK in terms of both performances and looks. This neat package mounts to the front bracket that comes with the side distribution plate. Thanks to the bottom radiator being the multiport version with side ports, the two are connected in series, and then both neatly find their way to the side distroplate. All that is then needed is a couple of 14-mm extenders and 90° rotary dapters, and it all lines up perfectly for some serious fitting and tubing action.

The fittings in the satin titanium finish are a perfect match for this white build, and with some additional red color rings added to the mix, they do pop and break the all-white setup nicely. But we’re sure that no matter which secondary color you go with, the color matching will work perfectly.

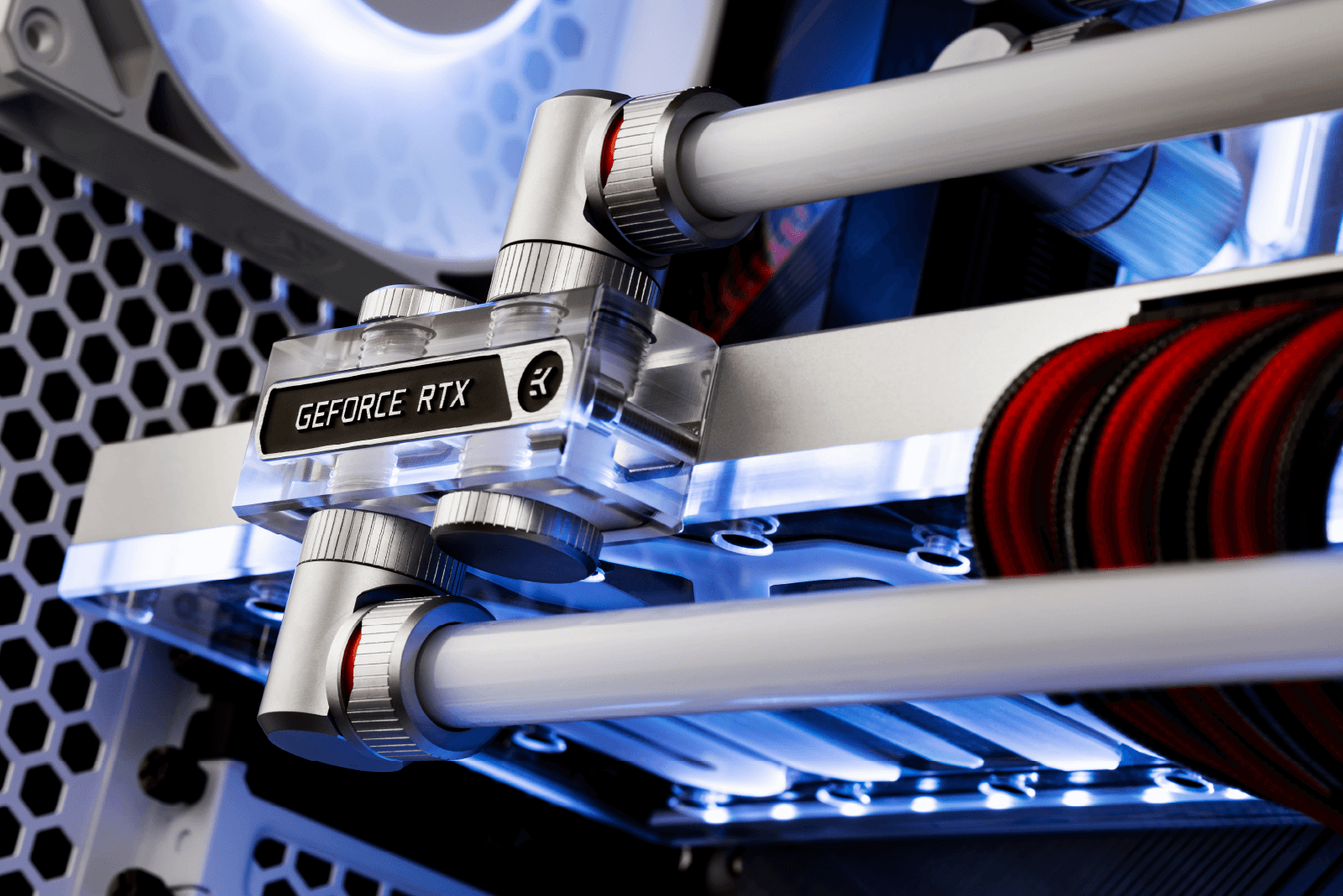

The GPU is handled by the EK-Quantum Vector² FTW3 RTX 3080/90 D-RGB water block, but its stock backplate was swapped with a silver one to match the fittings. And don’t worry; we did not forget to update the terminal to a Plexi version. It would be a shame not to do it as we have it available.

Pro Tip: Do not forget that you can use any Vector² GPU block or ABP set version, and it will match perfectly with the side distro thanks to the Matrix7 system.

For the CPU block, we cover that AM5 socket with the greatest of them all, the EK-Quantum Velocity² D-RGB - AM5 Nickel + Plexi version. And boy, did we have a tough call, as there is also a Nickel + Satin Titanium version available. But we think we made the right choice and hope you like it as much as we do.

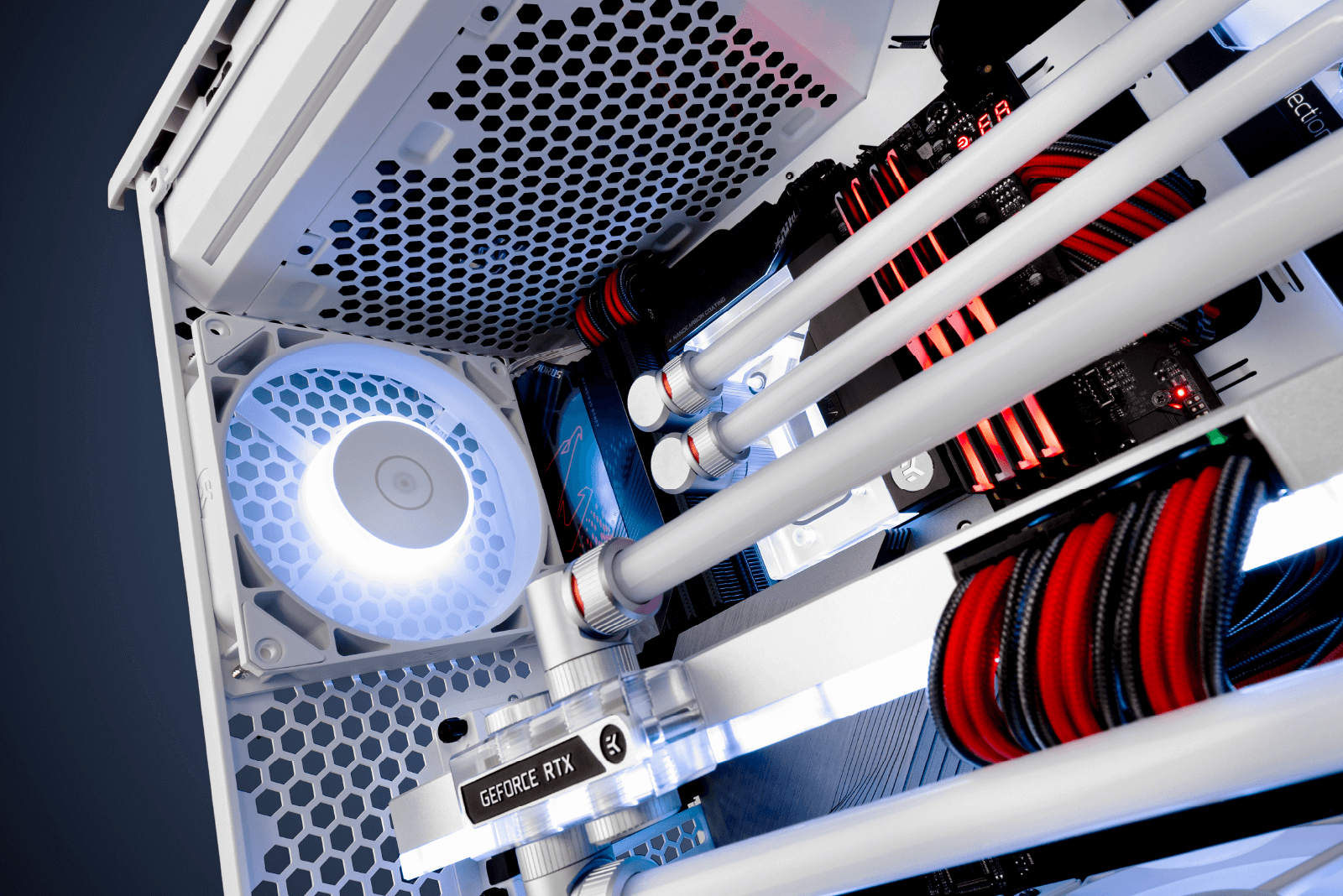

From the CPU, we go straight to those beautiful RAM sticks. For them, we only need a couple of 3-mm offsets that also help us line up the ports horizontally. A couple of 90° rotary adapters were also added on top of it, and now all is ready for some fittings and pre-bent hard tubing.

For the last touch, we installed the EK-Quantum Convection DDC – Silver heatsink and pump cover on the distro and filled it with Solid Cloud white Premix. For coolant stability, the system was prepped with the EK-CryoFuel Loop Cleaner + Superflush combo.

And just like that, this stunning and high-performing Zen Lotus build is ready for action!

Hardware used in this example build:

  • PC Case: Fractal Design Torrent
  • Motherboard: Gigabyte X670E Aurus Master
  • Graphics Card: Nvidia GeForce RTX 3080 (FTW3)
  • RAM: G.SKILL Trident Z5 RGB black
  • Processor: AMD Ryzen 9 7950X
  • Cables:CableMod red/carbon

PLEASE NOTE:

  • Check your GPU for a compatible block.
  • Choose the correct CPU block for your platform using our configurator.
  • Depending on the motherboard used, the CPU socket might not be in the same horizontal position. Offset fittings are needed to help you align the tubing horizontally. The example build uses the 3-mm offsets.
  • Check your motherboard for available D-RGB and PWM headers. Choose proper cable accessories for the D-RGB and PWM connection of the EK-Loop products accordingly.
  • Do not use chemicals or alcohol on Acrylic/Plexi surfaces.
  • Do not use acidic preparations or chemicals to clean your loop.
  • Contact our Customer Support if you have any questions or need assistance.
