High-Performance GPU Cooling

The packaging now contains a high-performance GPU water block of the latest generation and a premium quality backplate. A black full coverage backplate is included with every Vector² water block, and its distinctive L shape profile encloses the entire GPU while increasing the cooling surface area at the same time. The backplate also comes with pre-Installed, captive backplate screws that simplify the installation ensuring the correct length is always used where it is needed.

EK Vector² Water block for the EVGA RTX 3080 and 3090 FTW3 GPU

Technical and Visual Master Piece

The new look of the next-gen water blocks is dominated by minimalistic straight lines. An 11mm thick copper cold plate is used for all Vector² GPU water blocks. For plexi versions, D-RGB Lighting is now deployed on the longest edge of the water block for improved fidelity and brightness from every viewing angle. The LED PCB is concealed inside a clean aluminum extrusion.

EK-Matrix7 Support

Matrix7 standardizes the dimensions of the products, including the port position and spacing, making liquid cooling loop assembly more intuitive and easier. EK-Quantum Vector² GPU water blocks follow the EK-Matrix7 standard, making them seamlessly integrate with the upcoming 2nd generation of EK Reflection distribution plates. This brings perfect alignment of ports in both horizontal or vertical positions, meaning less time used for planning of the loop, bending tubes, and the end result will still be an epic build.

Included

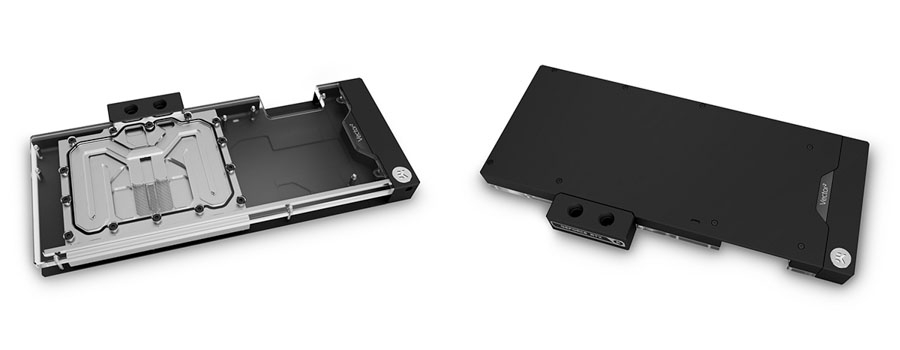

It includes an EK-Quantum Vector² FTW3 RTX 3080/90 D-RGB - Nickel + Plexi water block, EK-Quantum Vector² FTW3 RTX 3080/90 Backplate - Black, the mounting gear, and necessary TIM.

EK-Quantum Vector² FTW3 RTX 3080/90 D-RGB - Nickel + Plexi

The EK-Quantum Vector² FTW3 RTX 3080/90 D-RGB - Nickel + Plexi GPU water block and backplate set is compatible with FTW3 RTX 3080, 3080 Ti, and 3090 graphics cards. The Vector water block actively cools the GPU, VRAM (on the front), power stages, and chokes in the VRM (voltage regulation module), and passively the PCB hotspots that are found on the backside of the GPU core, and the VRM (voltage regulation module). On the RTX 3090, the VRAM located on the backside is passively cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM.

For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

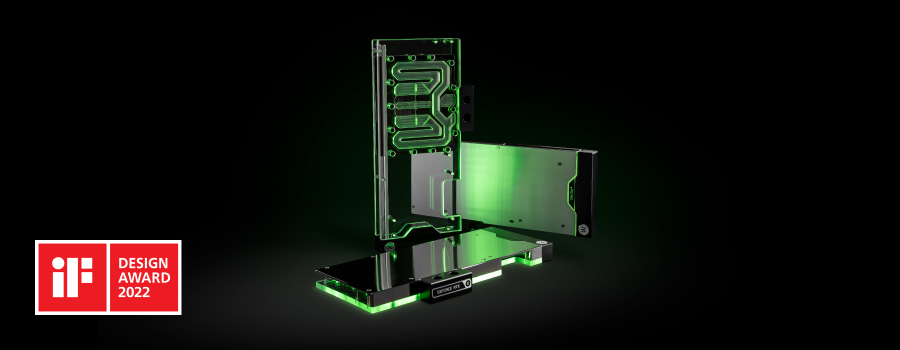

The implemented 3rd-generation Vector cooling engine uses a novel 3D machined acrylic insert to improve flow distribution and thermal performance. This new cooling engine is based on an Open Split-Flow design, but the asymmetric shape of the jet insert helps distribute an even flow between the first and last copper fins. The fin structure geometry has been optimized to provide even flow distribution with minimal losses and optimal performances even when used in reversed water flow scenarios. It is also characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance.

EK Vector² Water block for the EVGA RTX 3080 and 3090 FTW3 GPU

Great care was taken to achieve a symmetrical flow domain by utilizing an internal bridge to secondary components. This was done to ensure the cooling of secondary components without sacrificing flow distribution over the GPU core.

All Vector² GPU water blocks use a thick 11mm copper coldplate with an acetal terminal attached directly to it to create a robust assembly. A single o-ring design is used to create a seal between the cold plate and the water block top, reducing the number of failure points. This also means that you have seen the end of stainless steel bridge plates that were utilized on GPU water blocks before. This simple construction provides confidence during customization and maintenance. Tactile magnetic covers are used to conceal the terminal screws, which allows rotating the branding when the GPU is inverted in the case.

The cold plate is CNC-machined out of high-quality, pure electrolytic copper which is then nickel-plated, while its top is CNC-machined out of glass-like cast acrylic. The black anodized backplate has a new L-shaped profile that touches the base of the water block and encloses the entire GPU while increasing the cooling surface leading to even better performance.

EK Vector² Water block for the EVGA RTX 3080 and 3090 FTW3 GPU

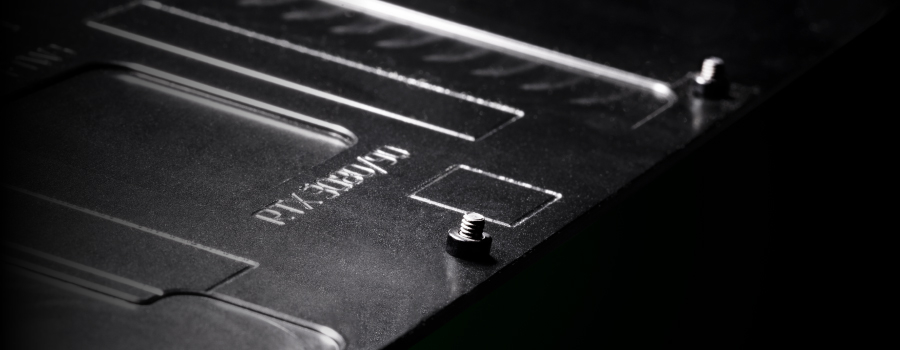

Captive backplate screws simplify installation, ensuring the correct length is always used where it is needed to avoid any user error or second-guessing.

EK Vector² Water block for the EVGA RTX 3080 and 3090 FTW3 GPU

The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section.

Rotatable Magnetic Covers

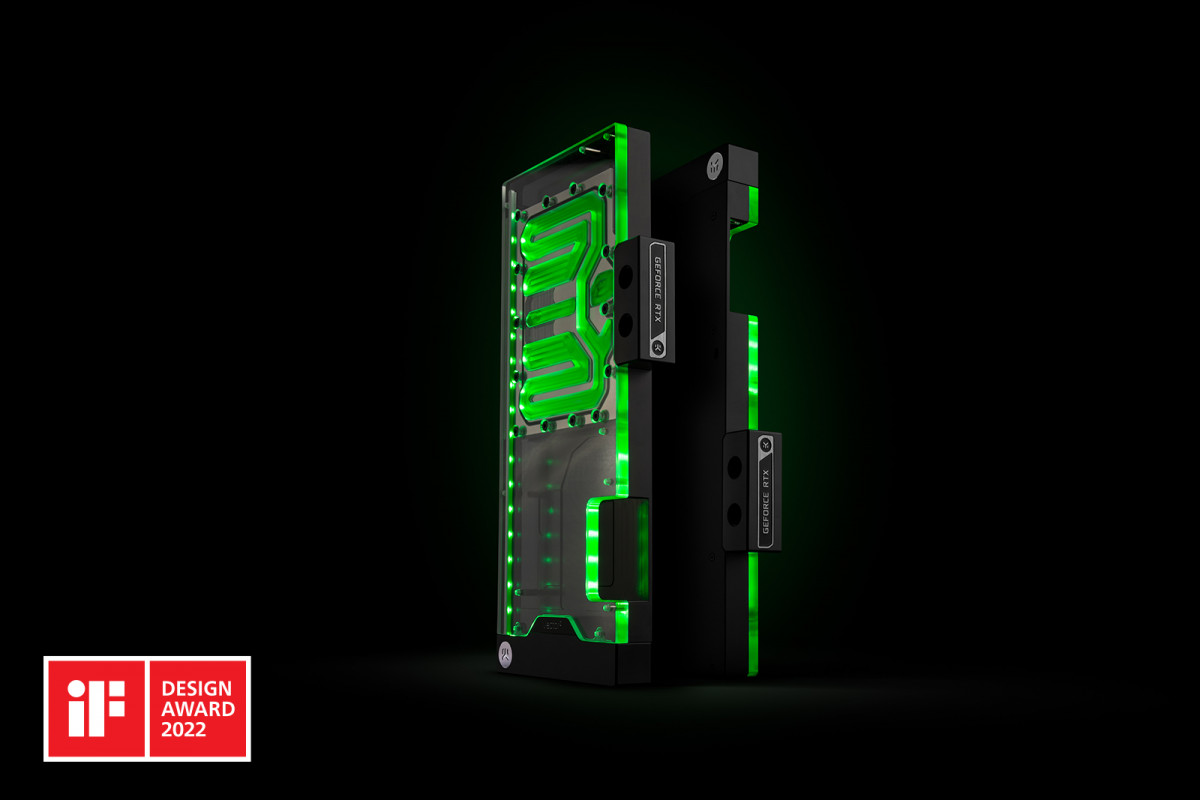

Sleek magnetic covers are used to conceal the terminal screws, which allows rotating the branding when the GPU water block and active backplate enclosure is inverted in the case, or being used on a vertical GPU mount.

EK Vector² Water block for the EVGA RTX 3080 and 3090 FTW3 GPU

Addressable D-RGB Compatibility

Addressable D-RGB LED lighting is deployed on the longest edge of the water block for improved uniformity and brightness. The PCB and diodes are concealed inside a clean aluminum extrusion. The individually addressable RGB LED is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header (Pinout: +5V | Data | Blocked | Ground).

EK Vector RGB compatibility

Enclosed:

- EK-Quantum Vector² FTW3 RTX 3080/90 D-RGB series high-performance water block
- EK-Quantum Vector² FTW3 RTX 3080/90 Backplate - Black
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- Thermal pad installation quick start guide
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
Thermal grease EK-TIM Ectotherm (1g)

Technical Specification:

- Dimensions: (LxHxW): 328,5x 155 x 27 mm
- D-RGB LED count: 17
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Data | Blocked | Ground)

Made in Slovenia - Europe!

PLEASE NOTE:

  • Due to an immense variety of fittings/barbs available on the market and no prescribed standards, we guarantee compatibility only for connectors bought from our website.
  • Factory backplates are not compatible with this water block!
  • This product should NOT be installed with any aluminum Fluid Gaming parts!
  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block! EK is offering a selection of such products in the coolants section.
  • Only compatible with Active Backplate in a Nickel + Plexi finish due to D-RGB implementation.

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
Chip Manufacturer Nvidia GeForce
