Gold Prospect

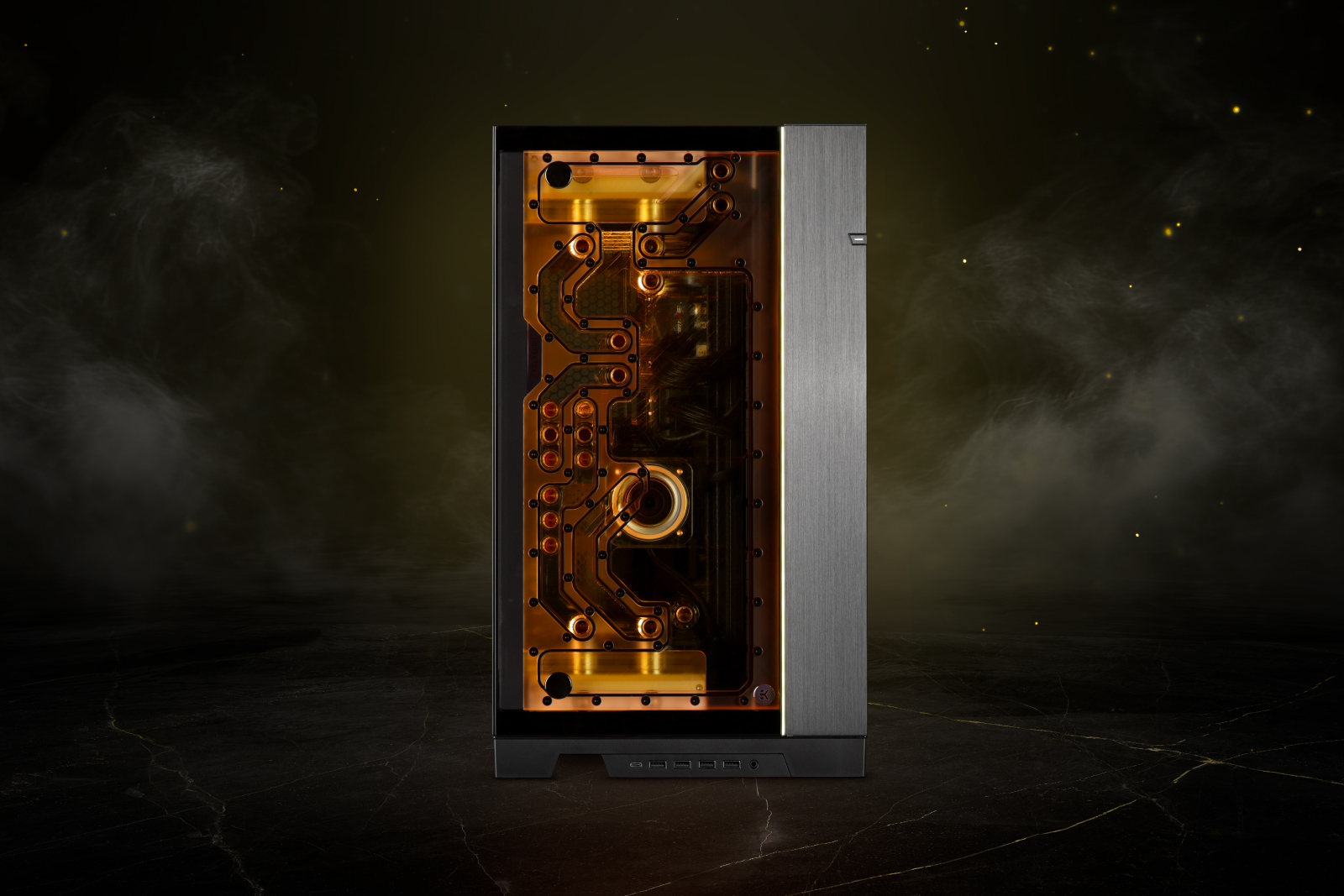

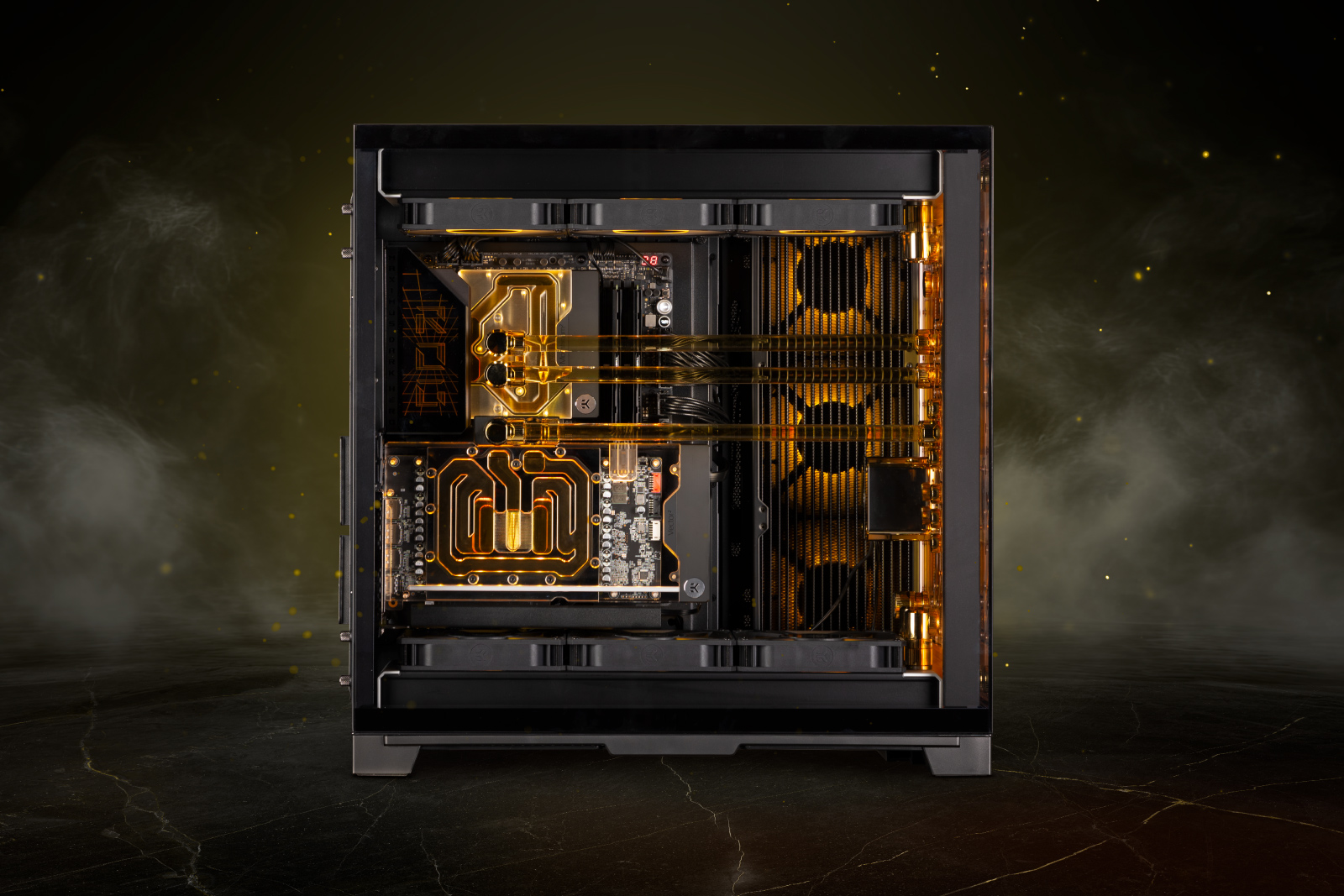

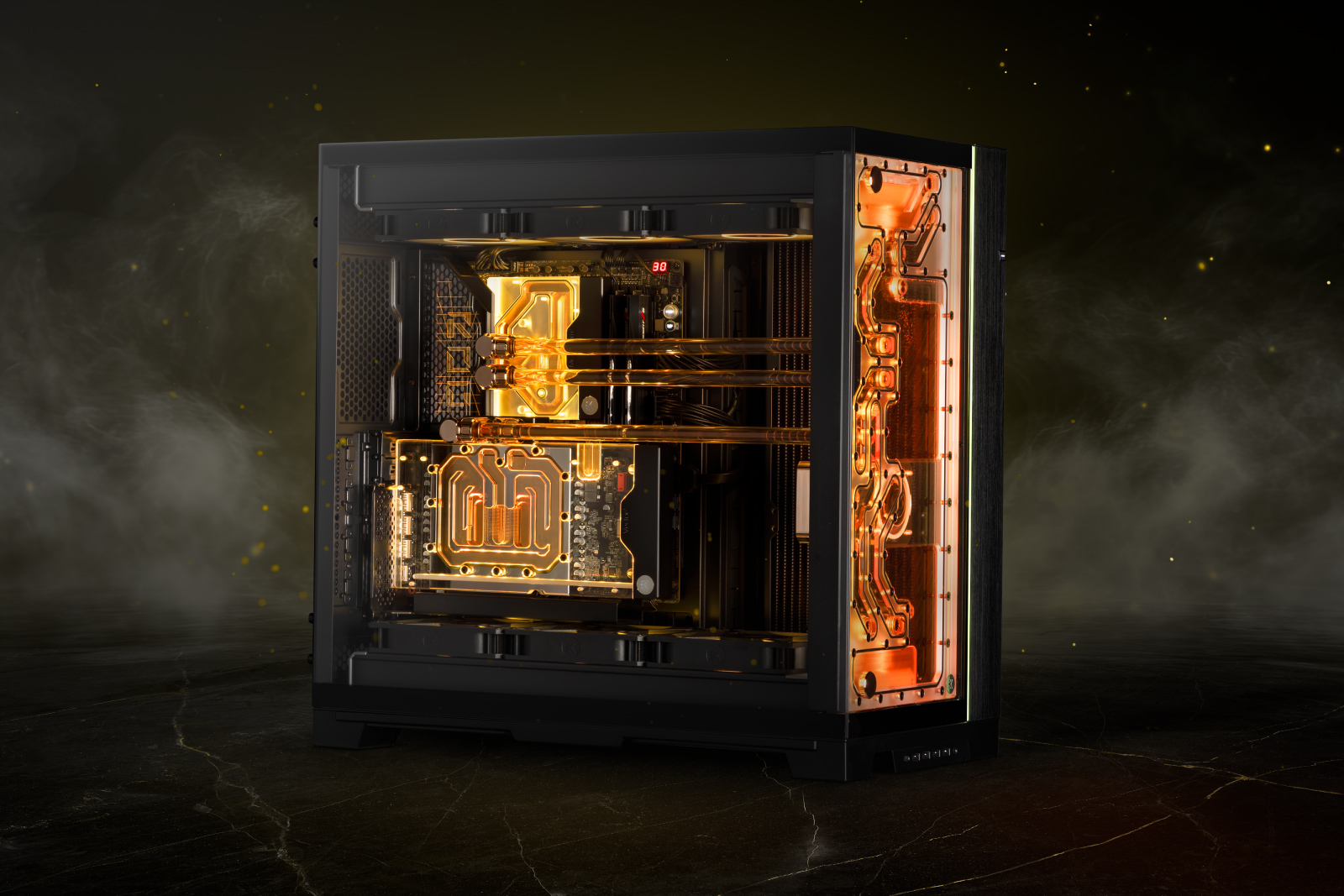

Step into the realm of luxury with the Gold Prospect build, a marvel of engineering housed in the sophisticated Lian Li EVO XL case. This build combines EK Quantum water cooling components, featuring Momentum² and Vector² water blocks, three Surface radiators, and clear hardline tubing. The pristine, clear golden coolant and sleek Torque fittings underscore the build's elegant black and gold aesthetic. EK-Matrix7 compatibility ensures that replicating this masterpiece is as seamless as it is impressive.

❮ ❯

Get EK Products for This Loop

About the Build

CPU Cooling

• EK-Quantum Momentum² ASUS ROG Maximus Z790 Dark Hero D-RGB - Plexi

GPU Cooling

• EK-Quantum Vector² AMP/Trinity RTX 4080 D-RGB - Nickel + Plexi

Radiator and Fans

• 3x EK-Quantum Surface P480M - Black
• 10x EK-Loop Fan FPT 140 D-RGB - Black (600-2200rpm)

Distribution Plate

• EK-Quantum Reflection² PC-O11D EVO XL D5 PWM D-RGB - Plexi

Fittings and Tubing

• EK-Quantum Torque fittings in gold
• EK-Loop Hard Tube 14mm - Acrylic

Loop Connections

Connecting Top and Bottom Radiators to Distro:

• Both ports: Connect the top and bottom radiators to the distro plate using a 14mm extender, a 90° rotary adapter, and a Push-In adapter M 7. This setup is mirrored on both radiators and both ports.



Connecting Side Radiator to Distro:

• Right port: Begin with a 90° rotary adapter and an HDC 14 fitting. Connect a tube to another HDC 14 fitting on the distro plate.


• Left port: Use a double rotary offset 28 and an HDC 14 fitting. Connect with a tube to another HDC 14 fitting on the distro plate.



Connecting CPU Block to Distro:

• Both ports: Start with a 28mm extender and a 90° rotary adapter, followed by an HDC 14 fitting. Connect a tube to another HDC 14 fitting on the distro plate.



Connecting GPU Block to Distro:

• Right port: Attach a 90° rotary adapter and an HDC 14 fitting. Connect a tube to another HDC 14 fitting on the distro plate.


• Left port: Use a 28mm extender and a 90° rotary adapter, followed by an HDC 14 fitting. Connect a tube to another HDC 14 fitting on the distro plate.

Hardware in the Sample Build:

• PC Case: Lian Li O11 Dynamic EVO XL
• Motherboard: ASUS® ROG Maximus Z790 Dark Hero
• Graphics Card: Nvidia GeForce RTX 4080 Super (Zotac)
• RAM: G.SKILL Trident Z5
• Processor: Intel® Core™ i9-14900K
• Riser: EK-Loop Vertical GPU Holder EVO - Gen4 Riser
• Cables: Cable Mod

CAUTION:

For custom coolant colors, select the Dye Pack in conjunction with EK-CryoFuel Solid Cloud White or EK-CryoFuel Clear premix. If a custom color is not desired, ensure the Dye Pack is unchecked from the bundle.

Gold Prospect Loop Kit

CPU Monoblock:

Select item EK-Quantum Momentum² ROG Maximus Z790 Hero D-RGB - Plexi EK-Quantum Momentum² ROG Maximus Z790 Extreme D-RGB - Plexi

+

GPU block:

Select item EK-Quantum Vector² AMP/Trinity RTX 4080 D-RGB - Nickel + Plexi EK-Quantum Vector² Master RTX 4080 D-RGB - Nickel + Plexi EK-Quantum Vector² Trio RTX 4080 D-RGB - Nickel + Plexi EK-Quantum Vector² FE RTX 4080 D-RGB - Nickel + Acetal EK-Quantum Vector² FE RTX 4080 D-RGB - Nickel + Plexi EK-Quantum Vector² EVO for NITRO+/Pulse RX 7900 XT/XTX D-RGB - Ni + Plexi EK-Quantum Vector² FE RTX 4090 D-RGB - Nickel + Acetal EK-Quantum Vector² AMP/Trinity RTX 4090 D-RGB - Nickel + Plexi EK-Quantum Vector² Trio RTX 4090 D-RGB - Nickel + Plexi EK-Quantum Vector² Master RTX 4090 D-RGB - Nickel + Acetal EK-Quantum Vector² Master RTX 4090 D-RGB - Nickel + Plexi EK-Quantum Vector² RX 7900 XTX D-RGB - AMD Radeon Edition EK-Quantum Vector² TUF RX 7900 XTX D-RGB - Nickel + Plexi EK-Quantum Vector² Red Devil RX 7900 XTX D-RGB - Nickel + Plexi EK-Quantum Vector² RX 7900 XTX D-RGB - Nickel + Plexi

+

EK-Loop Vertical GPU Holder EVO - Gen4 Riser

+

EK-Quantum Reflection² PC-O11D EVO XL D5 PWM D-RGB - Plexi

+

Pump cover:

Select item EK-Quantum Convection D5 - Black EK-Quantum Convection D5 - Nickel EK-Quantum Convection D5 - Silver EK-Quantum Convection D5 D-RGB - Black EK-Quantum Convection D5 D-RGB - Nickel EK-Quantum Convection D5 D-RGB - Silver

+

3x

Radiators:

Select item EK-Quantum Surface P480M - Black (3x) EK-Quantum Surface P480M - White (3x)

+

10x

Fans:

Select item EK-Loop Fan FPT 140 D-RGB - Black (600-2200rpm) (10x) EK-Loop Fan FPT 140 D-RGB - White (600-2200rpm) (10x) EK-Loop Fan FPT 140 - Black (600-2200rpm) (10x)

+

2x

EK-Loop Hard Tube 14mm 0.5m - Acrylic (2pcs)

+

3x

Coolant:

Select item EK-CryoFuel Solid Cloud White (Premix 1000mL) (3x) EK-CryoFuel Clear (Premix 1000mL) (3x) EK-CryoFuel Solid Azure Blue (Premix 1000mL) (3x) EK-CryoFuel Solid Electric Purple (Premix 1000mL) (3x) EK-CryoFuel Solid Scarlet Red (Premix 1000 mL) (3x) EK-CryoFuel Solid Neon Green (Premix 1000mL) (3x) EK-CryoFuel Solid Fire Orange (Premix 1000mL) (3x) EK-CryoFuel Mystic Fog (Premix 1000mL) (3x) EK-CryoFuel Blood Red (Premix 1000mL) (3x) EK-CryoFuel Indigo Violet (Premix 1000mL) (3x) EK-CryoFuel Acid Green (Premix 1000mL) (3x) EK-CryoFuel Amber Orange (Premix 1000mL) (3x)

+

EK-CryoFuel Dye Pack

+

12x

Fittings - HDC 14:

Select item EK-Quantum Torque HDC 14 - Nickel (12x) EK-Quantum Torque HDC 14 - Black (12x) EK-Quantum Torque HDC 14 - Satin Titanium (12x)

+

9x

Fittings - Rotary 90°:

Select item EK-Quantum Torque Rotary 90° - Nickel (9x) EK-Quantum Torque Rotary 90° - Black (9x) EK-Quantum Torque Rotary 90° - Satin Titanium (9x)

+

4x

Fittings - Static Extenders MF 14:

Select item EK-Quantum Torque Extender Static MF 14 - Gold (4x) EK-Quantum Torque Extender Static MF 14 - Nickel (4x) EK-Quantum Torque Extender Static MF 14 - Black (4x) EK-Quantum Torque Extender Static MF 14 - Satin Titanium (4x)

+

3x

Fittings - Static Extenders MF 28:

Select item EK-Quantum Torque Extender Static MF 28 - Nickel (3x) EK-Quantum Torque Extender Static MF 28 - Black (3x) EK-Quantum Torque Extender Static MF 28 - Satin Titanium (3x)

+

4x

Fittings - Push-In Adapters M 7:

Select item EK-Quantum Torque Push-In Adapter M 7 - Gold (4x) EK-Quantum Torque Push-In Adapter M 7 - Nickel (4x) EK-Quantum Torque Push-In Adapter M 7 - Black (4x) EK-Quantum Torque Push-In Adapter M 7 - Satin Titanium (4x)

+

Fittings - Drain Valve:

Select item EK-Quantum Torque Drain Valve - Gold EK-Quantum Torque Drain Valve - Nickel EK-Quantum Torque Drain Valve - Black EK-Quantum Torque Drain Valve - Satin Titanium

+

Fittings - Double Rotary Offset 28:

Select item EK-Quantum Torque Double Rotary Offset 28 - Gold EK-Quantum Torque Double Rotary Offset 28 - Nickel EK-Quantum Torque Double Rotary Offset 28 - Black EK-Quantum Torque Double Rotary Offset 28 - Satin Titanium

+

7x

Fittings - Micro Plugs:

Select item EK-Quantum Torque Micro Plug - Nickel (7x) EK-Quantum Torque Micro Plug - Black (7x) EK-Quantum Torque Micro Plug - Satin Titanium (7x)

+

5x

Fittings - Plugs:

Select item EK-Quantum Torque Plug - Nickel (5x) EK-Quantum Torque Plug - Black (5x) EK-Quantum Torque Plug - Satin Titanium (5x) EK-Quantum Torque Plug w/Badge - Gold (5x) EK-Quantum Torque Plug w/Badge - Nickel (5x) EK-Quantum Torque Plug w/Badge - Black (5x) EK-Quantum Torque Plug w/Badge - Satin Titanium (5x)

=

Full Price

Starts at $2,504.28

Add All 19 To Cart

Gold Prospect Build Accessories

EK-ATX Bridging Plug (24 pin)

+

2x

EK-Loop D-RGB 2-Way Splitter Cable

+

3x

EK-Loop D-RGB 3-Way Splitter Cable

+

Screwdriver set:

Select item EK-Loop Screwdriver Basic Set (49 Pcs) iFixit Mako Precision Bit Set

+

2x

EK-Loop CMS

+

EK-Loop Multi Allen Key (6mm, 8mm, 9mm)

+

EK-Loop Leak Tester Flex

+

EK-HD Tube Reamer

+

Out of stock

Filling Bottle (1000mL)

+

EK-HD Tube D.I.Y. Kit 10&12mm

+

Out of stock

EK-CryoFuel Loop Cleaner + Superflush (Concentrate 250mL)

+

2x

EK-Quantum Torque STC-10/13 - Black

+

EK-Loop Soft Tube 10/13mm 3m - Clear

=

Full Price

Starts at $227.84

Add All 13 To Cart
