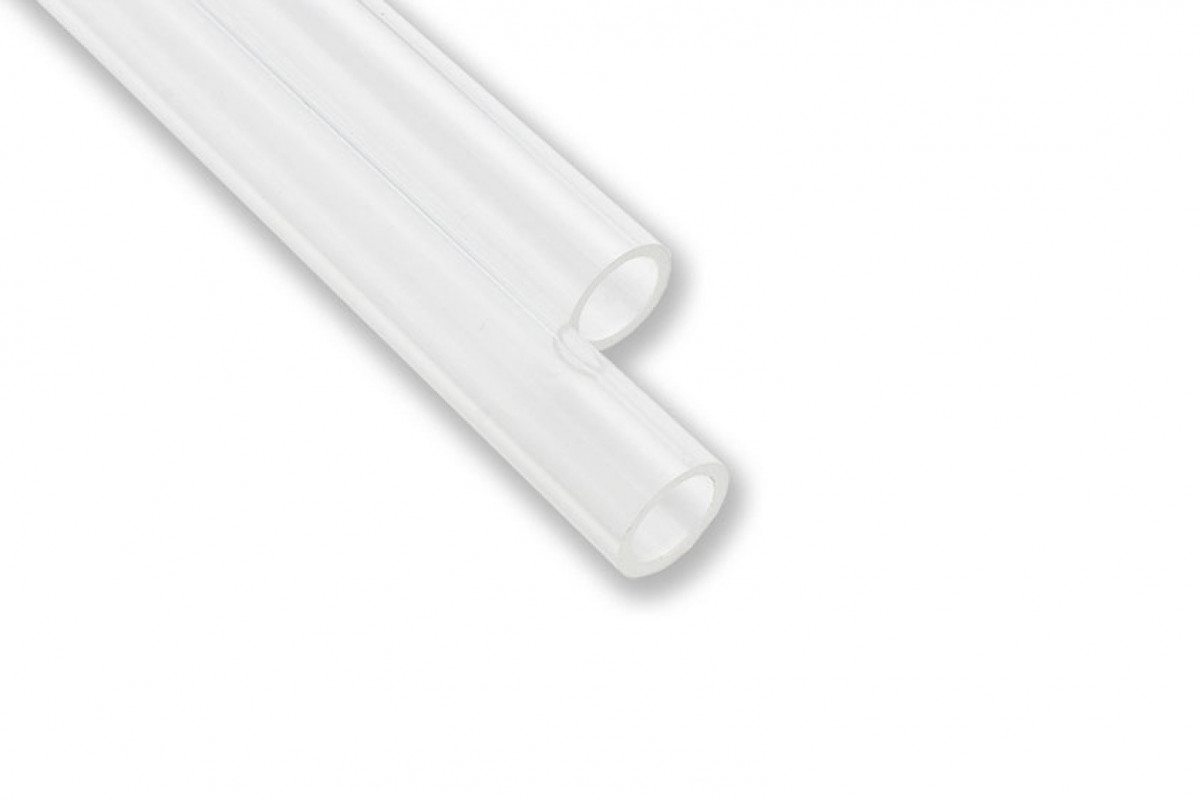

EK-Loop Hard Tube 14mm 0.5m - Acrylic (2pcs)

EK-Loop Hard Tube is a solid type of extruded acrylic tubing intended for use with EK-HD push-in adapters and EK-HDC series compression fittings. The tubing may be heat treated to achieve certain bends. For expert users only!

It is mandatory to chamfer the edges of the freshly cut tube in order to prevent gasket (O-ring) damage. EK recommends a 0,5mm x 45° chamfer.

Technical data:
- Material: Extruded acrylic
- Inner diameter: 10 mm
- Outer diameter: 14 mm
- Length: 2x 500 mm (19.5")

The package contains 2 pieces of the tube only. Please purchase EK-HD Adapter or EK-HDC compression fittings separately!

For easier installation, we recommend wetting the gasket (O-ring) using drops of water prior to installing the solid tubes.

Made in Germany - Europe!
