Shop the Loop - Code Orange

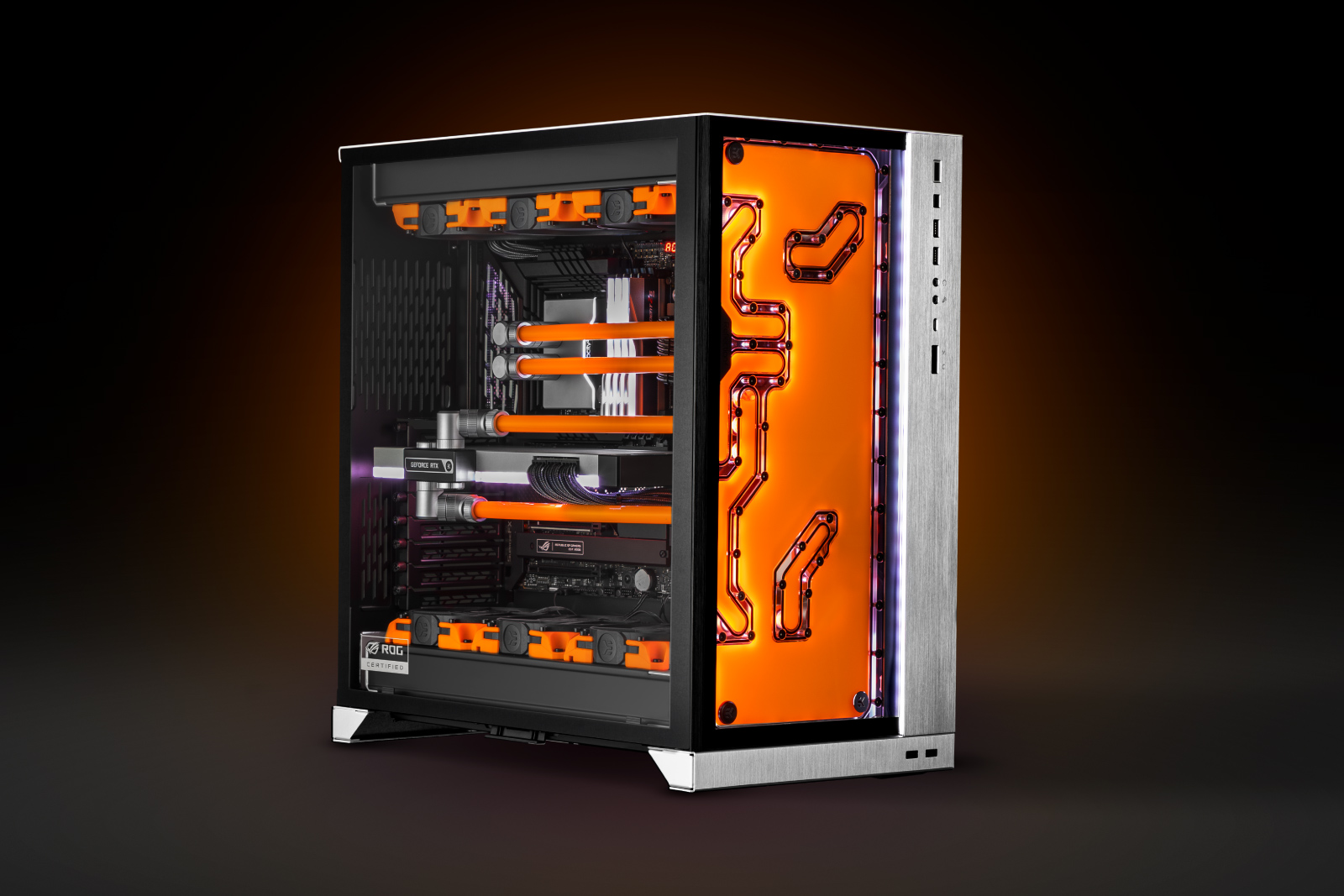

The daring silver and orange color combination is the focal point of this EK-Matrix7 build. The triple Quantum Surface P-size radiator setup is nestled in a Lian Li PC-011D XL case and coupled with second-generation EK-Quantum products. All this is tied together with a beautiful EK-Quantum Reflection² D-RGB Distribution plate for a true masterpiece of a build.


Understand the Build

This stunning and performance-driven build features an EK-Quantum Reflection PC-O11D XL Distribution plate (with integrated D5 pump) built specifically for the Lian Li PC-O11D XL case, a custom CNC-machined silver pump cover that also acts as a heatsink, and a triple Quantum Surface 360mm radiator set – so you know cooling is (and will stay for many years) truly top-tier.

All the liquid components are easily connected using straight tubing and fittings thanks to the EK-Matrix 7 design that places each product inside the PC case in a designated space. No matter which GPU or motherboard you plan to use, you will be able to achieve the same look and easy build – all due to our EK-Matrix7 standard.

The Radical Set of Rads

We did go over and beyond with a triple P-size radiator setup, and that is to give you the ultimate performance edge no matter the hardware demand. With a black finish and silver end cap covers, it really does sit well with this build.

The internal structure design of the radiators was executed with low flow restriction in mind, providing no unnecessary stress on the rest of the cooling loop. This means a triple-radiator setup in a single-pump cooling loop is no issue. The radiators are airflow-friendly and low-restriction, allowing lower fan speed operation to achieve the same performance. Low airflow restriction keeps the case well ventilated and allows other radiators in the case to breathe properly.

The GPU

The graphics card is encased in a second-generation EK-Quantum Vector² water block. If needed, an active backplate can be added to cool those high-performing memory modules at the back of an RTX 3090 GPU, if that is the GPU model you will go with.

Just make sure to pick the correct GPU block or ABP set for your GPU. This is quickly done through our Loop Configurator here. With EK-Matrix7, no matter which GPU block or ABP set you go with, it can be easily connected using proper fitting selection.

The CPU

Finally, the gem on the CPU is also our second-generation EK-Quantum Velocity² CPU block. Yes, you guessed it, it is also EK-Matrix7 compliant to ensure easy connection. As the CPU socket height is the only thing we cannot control, and is quite crucial to achieving straight tubing, we came up with a solution in the form of an offset fitting.

With those fittings, you can offset the ports on the distribution plate to match the exact height of the CPU block ports. The socket height on the example build’s motherboard was not aligned by 3mm, so we used a 3mm offset with a 7mm extender on the CPU block ports, and the issue was elegantly solved.

Pro Tip: If you use a Momentum² monoblock, the ports will always be spot on with the distribution plate.

Tubing, Fittings, Extenders, Adapters

For the finish, we have 14mm hard tubing and a careful selection of fittings, extenders, and adapters in Satin Titanium finish for a perfect aesthetic match and easy connections. In the example build, we used five rotary male-to-male extenders to connect the radiators directly to the distribution plate. But now we have a new product, the EK-Quantum Torque Push-In Adapter, that replaces them and gives you an even easier build experience.

Hardware used in this example build:

  • PC Case: Lian Li O11 Dynamic XL Silver
  • Motherboard: ASUS® ROG MAXIMUS Z690 HERO
  • Graphics Card: Nvidia GeForce RTX 3080 Ti FTW3
  • RAM: G.SKILL Trident Z5 RGB
  • Processor: Intel® Core™ i9-12900K
  • Cables: CableMod Carbon

PLEASE NOTE:

  • Check your GPU for a compatible block via our Loop Configurator here.
  • Depending on the GPU block width, different fitting combinations are needed. For example, a Reference design and XC3 GPU blocks will perfectly align with a single 90° rotary adapter on each GPU terminal port.
  • Choose the correct CPU block for your platform via our Loop Configurator here.
  • Depending on the motherboard used, the CPU socket might not be in the same horizontal position. Two offset fittings on the distribution plate are needed to help you align the tubing horizontally. For offsets bigger than 3mm, an additional 14mm extender must go over one offset with another. Check here.
  • Check your motherboard for available D-RGB and PWM headers. Choose the proper cable accessories for the D-RGB and PWM connection of the EK-Loop products accordingly.
  • Do not use chemicals or alcohol on Acrylic/Plexi surfaces.
  • Do not use acidic preparations or chemicals to clean your loop.
  • Contact our Customer Support if you have any questions.

Content of this kit is only for EK products listed, and not for the PC or its hardware components.

Code Orange Loop Kit

+

+

+

+

+
3x

+
2x

+
2x

+
10x

+

+
11x

+
2x

+
5x

+
2x

+
2x

+
2x

+
5x

+
4x

+
7x

+

=
Full Price
$2,042.18

Code Orange Build Accessories

+
3x

+
2x

+

+
2x

+

+

+

+

+

+

=
Full Price
$181.30
