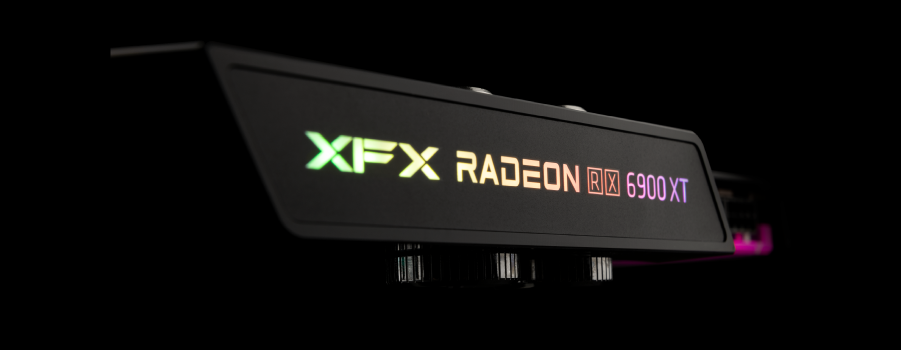

XFX Speedster ZERO Radeon RX 6900XT RGB EKWB

The XFX Speedster ZERO Radeon RX 6900XT RGB EKWB is a cutting-edge AMD® RDNA™2-based GPU that has 80 compute units with 5120 stream processors and 16GB of high-speed GDDR6 VRAM to buffer even the mightiest 4k textures.  The EK®-made water block allows XFX® to unleash the unrestrained potential of the AMD Radeon RX 6900 XT GPU in a slim and stylish package, bringing gamers the necessary power for 4K high-refresh-rate gaming.

This new Speedster series GPU is equipped with a 14-phase VRM power delivery system consisting of DrMOS and high polymer capacitors. To make sure these lightning-fast graphics processors manage to hit their maximum clocks, a unique EK water block is pre-installed, which also brings a prolonged lifespan due to the superior thermals that liquid cooling provides. This card uses 3 x 8-pin PCI-E connectors for ample power delivery even under the heaviest overclocks. To ensure optimal operation and headroom for unlimited overclocking, EK suggests a quality 850W power supply or better.

Thanks to liquid cooling, peak performance and prolonged lifespan of the GPU are guaranteed. The New Generation Open Split-Flow cooling engine delivers low GPU temperatures, boosting the clock frequency to the incredible 2525MHz, and making your card perform at levels that air cooling simply cannot sustain.

It enables reliable operation at the highest possible frequencies while the lifespan of your graphics card is prolonged due to the benefits that only liquid cooling can provide. Our product guarantees low operating temperatures for all essential components on the card, including the voltage regulation module, GDDR6 VRAM, and the GPU core itself.

The base of the block is made of nickel-plated electrolytic copper while the top is made of see-through frosted cast Acrylic.

The addressable D-RGB is controlled directly through RGB control utilities for added customization.

The XFX Speedster ZERO Radeon RX 6900XT RGB EKWB comes with a pre-installed aluminum backplate. Not only does this improve the looks of your graphics cards, but it also provides some passive cooling to the circuit board VRM section, as well as the PCB as a whole, as it pulls the heat away from the backside of the components. The backplate also adds structural rigidity against GPU sagging and protects the backside of the PCB. The I/O shield takes up two slots, thus is compatible with most vertical GPU holders for vertical mounting.

Technical Specifications

• PCI-E standard: 4.0
• Stream Processors: 5120
• Compute Units: 80
• Memory Bus: 256 bit
• Memory Clock: 16 Gbps
• Memory Size: 16 GB
• Memory Type: GDDR6
• Card Profile: Dual Slot
• Thermal Solution: EK Water block

Core Clock Frequency:

• Base clock Up to: 2200 MHz
• Game Clock Up to: 2375 MHz
• Boost clock Up to: 2525 MHz

Enclosed:
- XFX Speedster ZERO Radeon RX 6900XT RGB EKWB
