EK-Quantum Torque Micro Rotary 90° - Satin Titanium

Product EAN: 3831109849699

In stock

$14.99
Estimated Delivery Date: 21 January 2022
?
  • DHL Economy tracking: 24 January 2022
  • DHL Express with tracking: 21 January 2022
  • UPS with tracking: 21 January 2022

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Details

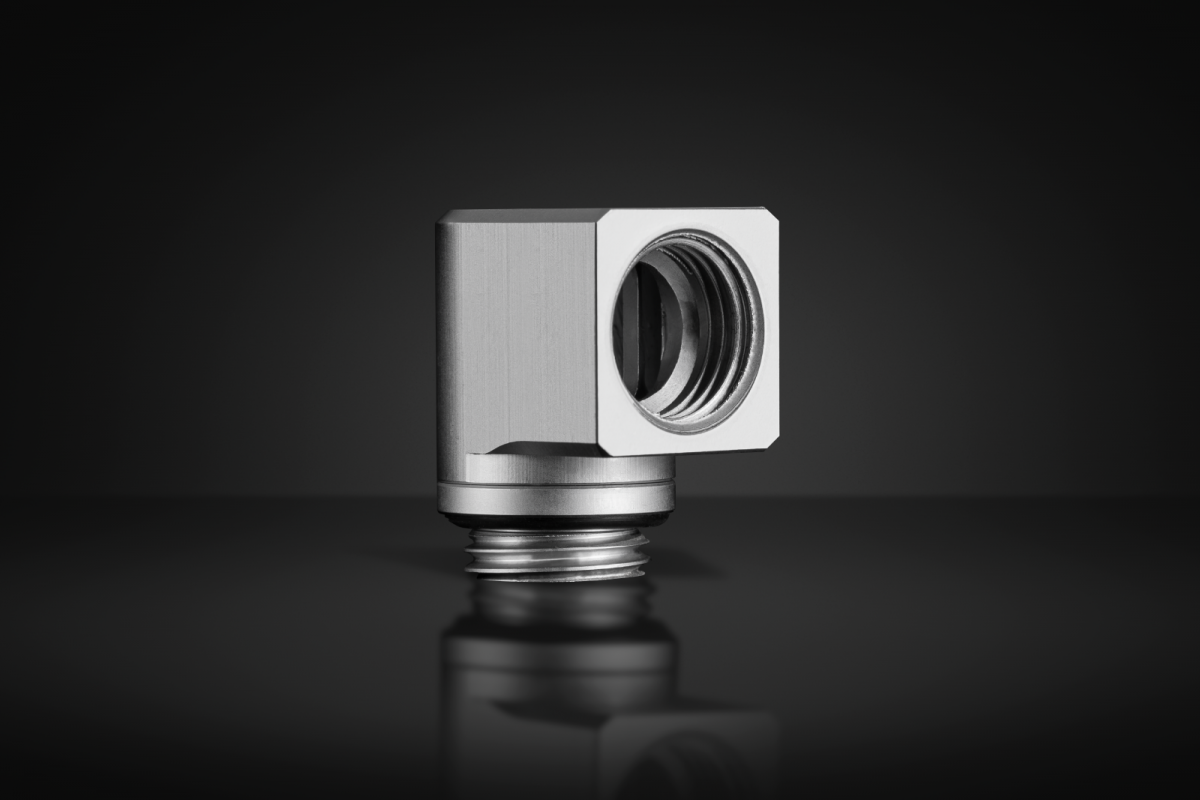

EK-Quantum Torque Micro Rotary adapter fittings allow you to make a simple 90° turn in the smallest possible footprint and installation height. With an overall installed height of just 21mm, Torque Micro Rotaries can squeeze into the most difficult places where it would be otherwise impossible to make a bend. This means it is 10mm lower in height than the standard 90° EK-Quantum Torque Rotary angled fitting

Micro rotary 90-degree adapters for SFF builds

This Quantum Line adapter fitting is CNC-machined from a solid brass bar and protected with a high-quality satin Silver finish. The two parts of the fitting are permanently assembled and sealed with high-quality rubber O-rings. Satin Titanium EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop. This precision manufacturing ensures satisfying engagement and a consistent appearance.

Micro rotary 90-degree adapters for SFF builds

Since there is no space for conventional knurling, the base of the fitting extends through an opening in the top face where a 6mm Allen key has to be used to secure it in place. Once secured, the body of the fitting is free to rotate in either direction. EK recommends the use of the EK-Loop Multi Allen Key for this application.

Micro rotary 90-degree adapters for SFF builds

A male G1/4” thread is screwed into the desired port, and a fully rotatable joint allows the female G1/4” port to be directed in any perpendicular direction. You can install components in very close proximity thanks to this.

Micro rotary 90-degree adapters for SFF builds

The centreline of the female G1/4" port is 12.5mm above the mounting surface, the EK-Quantum Torque Micro Rotary 90 rotary angled adapter is compatible with any STC or HDC EK-Quantum Torque fitting. The width and overall diameter of the base is 16.5mm.

Technical specification:

- Material: Brass
- Finish: Satin Titanium
- Threads:
* G1/4" BSP; 4,5mm male thread length
* G1/4" BSP, 5mm female thread length
- The outer diameter: 16.5mm
- Installed height: 20,75mm
- Sealed with high-quality o-ring

Additional Info

Material / Design / Color option Satin Titanium
Threads G1/4
