EK-XRES 140 Revo D5 RGB (stand-alone)

Product EAN:
3830046995308

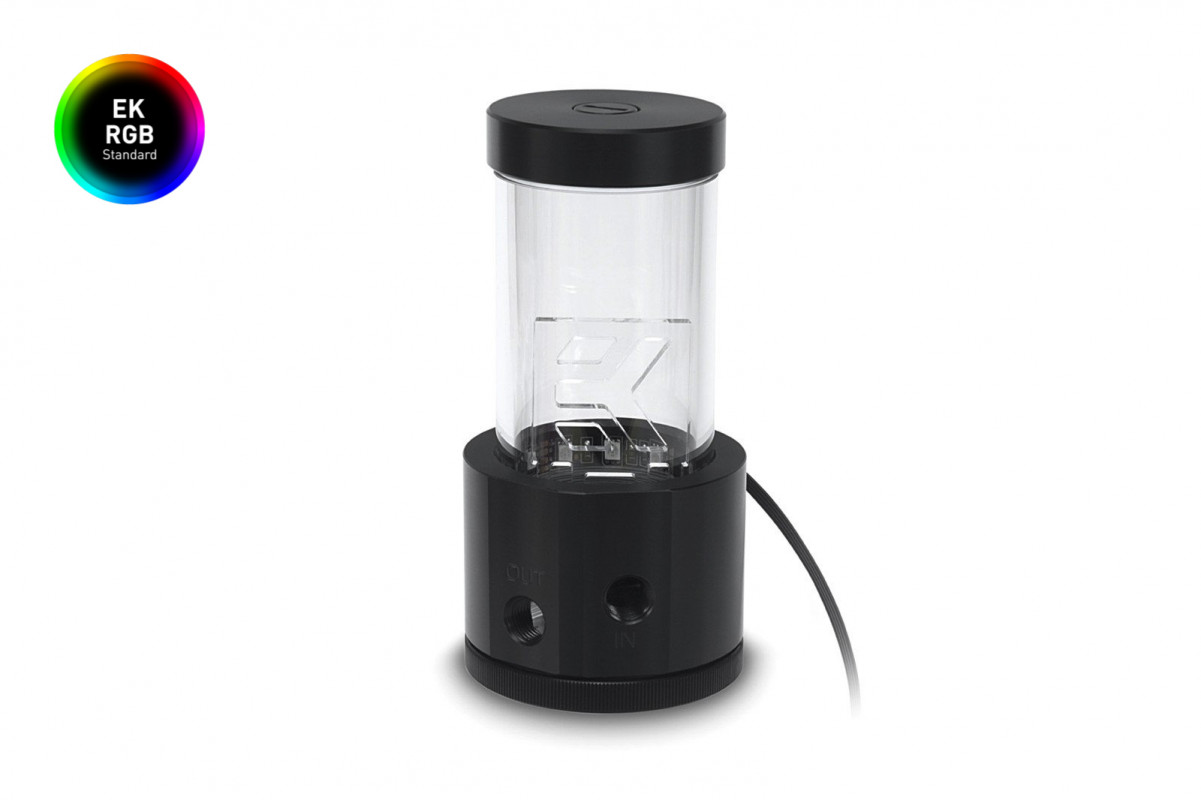

EK-XRES 140 Revo D5 RGB is a high-performance stand-alone pump top (volute) for Xylem D5 series water pumps with an integrated reservoir and a pre-installed 4-pin 12V RGB LED strip. This top offers increased hydraulic performance (up to 15%) compared to factory top. This stand-alone pump top kit does not include a pump!

$ 99.99

In stock!

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

Details

EK-XRES 140 Revo D5 RGB is a high-performance stand-alone pump top (volute) for Xylem D5 series water pumps with an integrated reservoir. This top offers increased hydraulic performance (up to 15%) compared to factory top. This stand-alone pump top kit does not include a pump!

REVO RGB

EK-XRES 140 Revo D5 RGB features a fully rounded see-through acrylic design thus offering stunning looks and greater usability. This allows installation at any angle within 360° of rotation. Special rubber shock absorber is used to de-couple the main pump body from the mounting clip for silent operation, free of vibration induced noise. Additionally, horizontal and vertical positioning is supported for easier tube routing possibilities. EK-XRES 140 Revo D5 RGB series reservoirs come preinstalled with anti-cyclone insert. Optional PU anti-vortex foam and EK-HD Tube is enclosed for additional options.

LED Compatibility

Compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 4-pin LED connector is to be aligned with the +12V marking on the RGB header.

This water pump/reservoir combo unit can be mounted directly on computer chassis by using enclosed Revo D5 Holder.

The 60mm diameter tube is made of a high-quality acrylic material, while the reservoir bottom/pump top is CNC machined acrylic glass.

Once the D5 pump is installed, the EK-XRES 140 Revo D5 RGB (stand-alone) can also be upgraded with either:

This reservoir can be easily upgraded with longer acrylic tubes used by EK-RES X3 series reservoirs.

Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: ~ 205mL
- Overall unit height: 190mm
- Mounting hole pattern: 65x34mm
- RGB connector classic 4-pin (12+ R G B)

Enclosed:
EK-XRES 140 Revo D5 RGB (stand-alone)
- Mounting clip with rubber insert
- Self-adhesive mounting hole pattern sticker
- Anti-vortex PU foam and 12mm OD plexiglass tube
- Mounting mechanism (incl. required Allen keys)
- Installation manual

Made in Slovenia - EU!
Pump motor made in Hungary - EU!

PLEASE NOTE:

  • The D5 pump is not included!
  • Compatible with any D5 pump motor.
  • The EK-UNI Pump Bracket bracket is just for showcase and it is not included with the unit.
  • The installed 4-pin RGB LED stripe is compatible with every major motherboard manufacturer and mainstream 12V RGB controller.
  • Do not clean acrylic tube with alcohol derivates or other solvents as the acrylic may crack!
  • This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info

Threads G1/4
