Delivery:

EK-Quantum Torque Micro HDC 12 - Black

Product EAN: 3831109837405

In stock

$7.99
Estimated Delivery Date: 1 July 2022
?
  • DHL Economy tracking: 5 July 2022
  • DHL Express with tracking: 1 July 2022
  • UPS with tracking: 1 July 2022

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Frequently Bought Together

+

+

=
Full Price
$80.47

Details

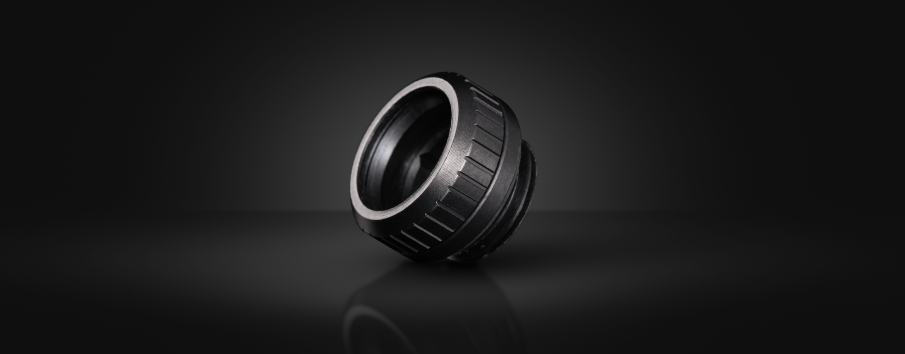

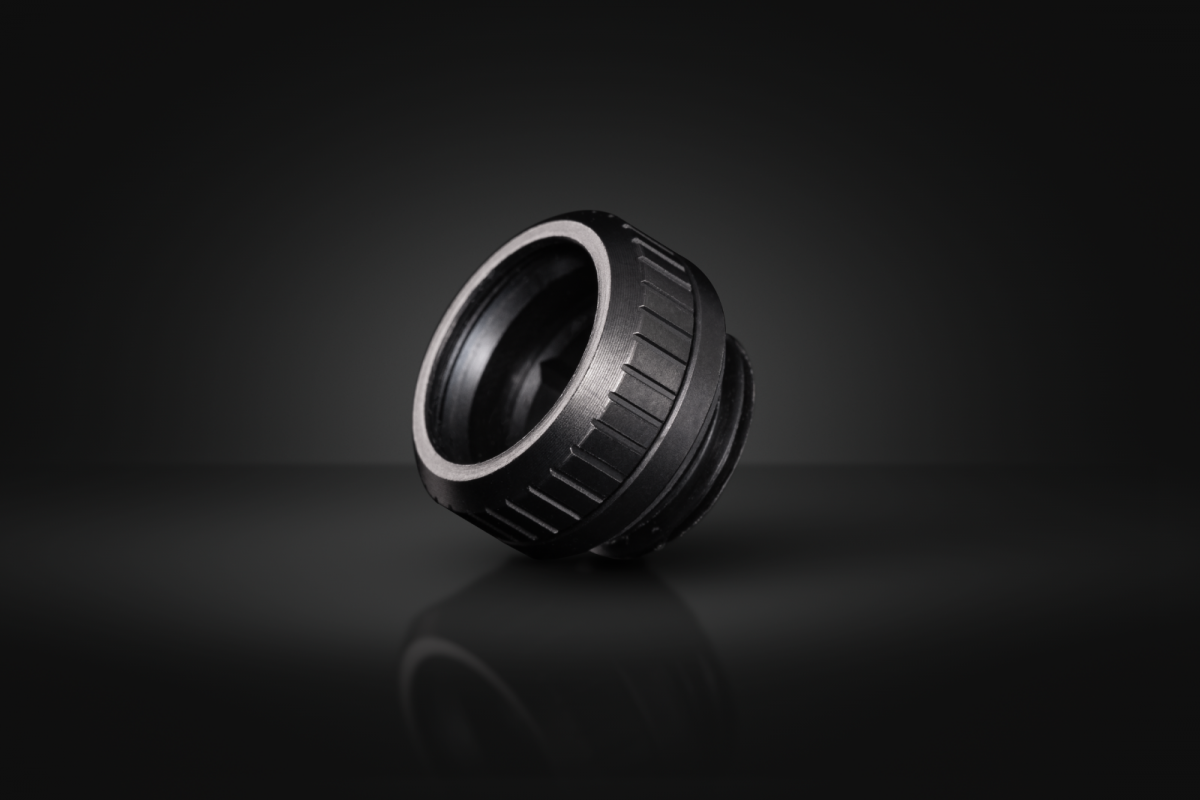

EK-Quantum Torque Micro HDC 12 - Black is a premium 12mm fitting made for solid tubing, such as acrylic, PETG, and brass. A much smaller footprint will allow tube placement in places where a regular fitting would be too large or inconvenient. It was named Micro due to an installed height of only 11.5mm, which is 23% shorter than standard Torque HDC 12 fittings. The outer diameter of the fitting is also significantly smaller than its bigger brother, with only 16mm across the fitting.

micro compression fitting for SFF build EK watercooling

The solid tube is gripped by the high-quality EPDM rubber gasket inside the Torque Micro compression ring. The fitting is made of CNC-machined brass with a satin black finish.

The surface of the fitting is smooth and has no adequate gripping surface, but the inside of the barb is socketed with a 9mm hex Allen key pattern. It's highly recommended to use an EK-Loop Multi Allen Key in order to prevent damage to other liquid cooling products.

micro compression fitting for SFF build EK watercooling

These fittings are guaranteed to be compatible with all other EK Water Blocks liquid cooling products.

Technical data:
- Finish: Satin Black
- Material: Brass
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 12mm OD
- The outer diameter of a fitting: 16mm
- Installed height: 11.5mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel, Glass.

Made in Europe - Slovenia!

PLEASE NOTE:

  • Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
  • Do not use excessive force when inserting solid tube!
  • Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
  • It is mandatory to use a chamfer tool on the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!
  • EK strongly recommends the use of PETG inserts with the use of PETG tubes.

Additional Info

Material / Design / Color option Black
Threads G1/4
