EK-Quantum Momentum² ROG Maximus Z790 Extreme D-RGB - Plexi

Product EAN: 3831109916919

Only 2 pieces left

$609.99
Estimated Delivery Date: 25 July 2024
?
  • UPS with tracking: 25 July 2024
  • DHL Express with tracking: 25 July 2024

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Details

EK-Quantum Momentum² ROG Maximus Z790 Extreme D-RGB - Plexi is a premium Quantum Line Ultrablock-class product designed for the ASUS® ROG Maximus Z790 Extreme motherboard. It features the high-performing and award-winning EK-Quantum Velocity² cooling engine, renowned for its low restriction and high performance. This monoblock's intricate design offers optimal cooling for the CPU, Voltage Regulation Module (VRM), LAN controller, and primary m.2 drive. Meticulously engineered, this exceptional monoblock represents the ultimate all-in-one solution, delivering outstanding cooling performance for a diverse range of processors, including the 14th Gen Intel® Core™, 13th Gen Intel® Core™ and 12th Gen Intel® Core™ processors.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

This Momentum² product is EK-Matrix7 compliant.

It boasts many premium features, some of them being:

  • Direct connection to the Vector² GPU water block and Active Backplate Sets via bypass valves
  • Temperature sensors
  • Liquid flow meter
  • Direct connection to the ROG water-cooling zone
  • ILM Replacement Kit

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

The EK-Quantum Momentum² ROG Maximus Z790 Extreme D-RGB – Plexi is exclusively designed for the LGA 1700 socket-based ASUS ROG Maximus Z790 Extreme motherboard. To ensure seamless integration with the motherboard, the monoblock utilizes a reliable pogo-pin connection, eliminating the need for additional cables and reducing clutter.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

This Ultrablock-class product is built from two parts. The first is a massive aluminum heatsink, CNC-machined from a massive aluminum brick of roughly 188mm x 167,5mm x 50mm in size. This heatsink is attached to and cooled by the second part of this product via thermal pads. The second part is the actual monoblock that brings a plethora of advanced features. The monoblock base is made of nickel-plated electrolytic copper, while the top is made of high-quality cast acrylic material.

ROG Water-Cooling Zone

With a direct connection to the ROG water-cooling zone, the EK-Quantum Momentum² ROG Maximus Z790 Extreme D-RGB offers the convenience of comprehensive parameter readouts that provide essential information, allowing users to have complete control over their liquid cooling setup. This monoblock ensures seamless integration into your system.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

Equipped with two integrated temperature sensors, it precisely monitors both inlet and outlet temperatures, enabling accurate measurement of temperature differentials.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

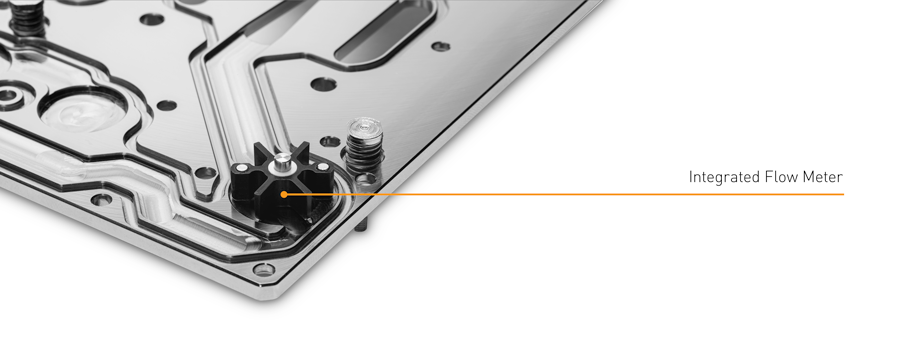

Additionally, the integrated flow sensor provides precise measurements of coolant flow, empowering users to fine-tune pump speeds and achieve the perfect balance between performance and acoustics.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

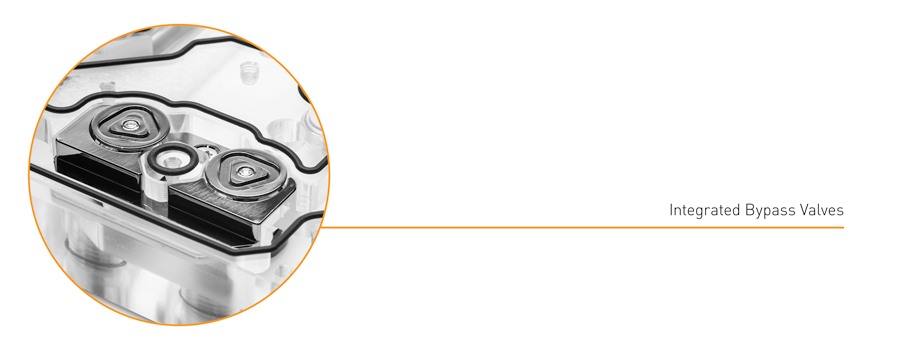

Integrated Bypass Valves

The monoblock features four ports, two of which are equipped with integrated bypass valves. This innovative feature offers the flexibility to choose from three different setups when building a PC, allowing for customization based on personal preferences.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

Approach No. 1 - Standard Setup

In the first setup, the valves are closed, and the monoblock functions in a standard manner providing efficient cooling performance exclusively to the CPU. However, removing the valve plugs allows you to unlock two alternative configurations that offer increased flexibility.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

Approach No. 2 - GPU Connection Setup

In the second setup, you can establish a direct connection between the monoblock and the EK-Quantum Vector² GPU water block. Coolant flows through the monoblock into the GPU block and through it back to the monoblock. It’s important to note that the ports are compatible with all EK GPU water blocks except for the Strix 40 series GPU blocks which require additional fittings – 2 x 21mm double rotary offsets plus a regular 90-degree rotary fitting.

Horizontal GPU mount

Regular (horizontal) setup is also compatible with Vector² Active Backplate Sets. It requires two 90-degree rotary adapters, two 14mm Male-Female extenders, and four fittings for Vector² GPU water blocks, and for ABP set no Male-Female extenders are needed. To use the ABP set an additional productEK-Quantum Momentum² ROG Maximus Z690/Z790 Extreme I/O Cover – Black is required.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

Vertical GPU mount

Vertically mounting the ABP set is not supported. Vertical GPU water block setup requires 4x 90-degree rotary adapters, two 7mm Male-Female extenders, and four fittings for Vector² GPU water blocks.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

Approach No. 3 - Distribution Plate Setup

Alternatively, in the third approach, you can explore an alternative setup using a distribution plate, such as the Hyperion Distroplate, to create a captivating and intricate liquid cooling arrangement, adding a touch of uniqueness to your system.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

This setup features one tube coming into the CPU monoblock inlet port, while the monoblock connects to the GPU block through the outlet bypass valve, and after that, the GPU water block connects to the distro plate. Additionally, this setup supports both vertical and regular-mounted GPUs and is also compatible with Vector² Active Backplate Sets in regular orientation. Again, no compatibility with vertically mounting the ABP set. To use the ABP set an additional productEK-Quantum Momentum² ROG Maximus Z690/Z790 Extreme I/O Cover – Black is required.

ANIME MATRIX™ LED DISPLAY Compatibility

The monoblock's aftermarket heatsink is designed to perfectly accommodate the motherboard's original ANIME MATRIX™ LED DISPLAY over the I/O shield. Made of black ELOX aluminum, this thoughtful addition preserves the motherboard's stunning lighting and enhances the overall aesthetic appeal of the Republic of Gamers motherboard.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

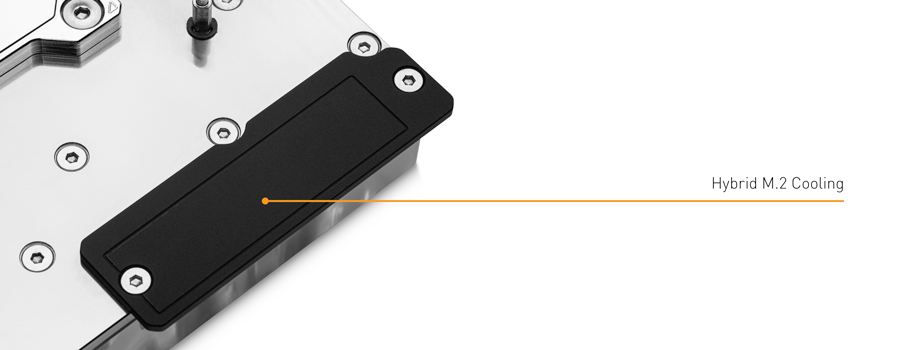

Hybrid M.2 Cooling

The monoblock's coldplate incorporates a specialized plate that acts as a dedicated heatsink for the primary M.2 SSD, ensuring efficient hybrid cooling and maximizing its performance. The specialized plate is constantly cooled by the monoblock's coldplate, which, in turn, is actively cooled by the circulating liquid passing through it. This design provides an effective hybrid cooling solution, optimizing the performance and temperature management of the primary M.2 SSD.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

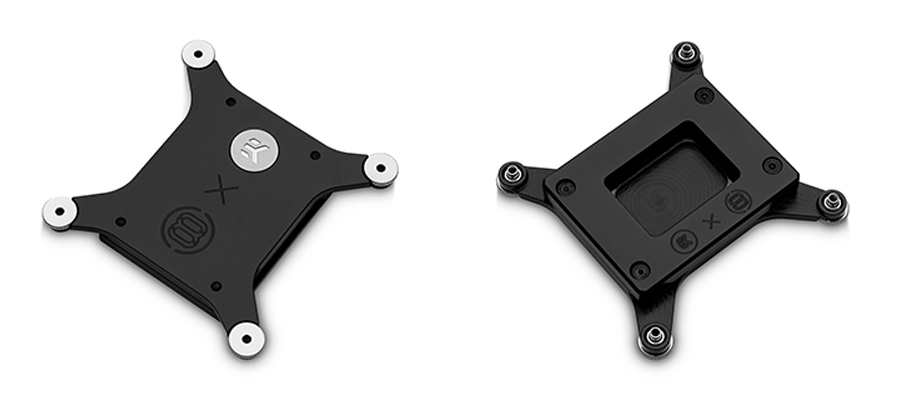

ILM Replacement Kit

This monoblock features the ILM replacement kit with a backplate and contact frame, which could be used to replace the motherboard's stock ILM, that bolsters the structural rigidity of the socket, motherboard, and even the CPU.

The replacement process is simple, involving the removal of a few screws to replace the ILM. Additionally, the kit allows for frame installation while keeping the CPU in the socket, protecting the pins from accidental damage.

Plexi edition ultrablock-class product for ROG Maximus Z790 Extreme water cooling

EK-Matrix7

EK-Quantum Momentum² ROG Maximus Z790 Extreme D-RGB - Special Edition follows the EK-Matrix7 standard. EK-Matrix7 is adding a new dimension to PC liquid cooling, where the height of products and the distance between ports are managed by increments of 7mm. This means perfect alignment of ports, less time planning the loop, bending tubes, and the result will still be an epic build.

Technical Specifications:

  • Dimensions: (LxHxW): 151.65 x 112.3 x 32.7mm
  • D-RGB cable length: 500 mm
  • D-RGB LED count: 8
  • D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Motherboard Compatibility:

  • ASUS® ROG Maximus Z790 Extreme

CPU Compatibility:

  • 12th Gen,13th Gen and 14th Gen Intel® Core™

Enclosed:

  • EK-Quantum Momentum² ROG Maximus Z790 Extreme D-RGB – Plexi monoblock
  • Aluminum Heatsink piece
  • EK-Loop Thermal Paste NGP
  • Mounting mechanism
  • Thermal pads
  • EK-Quantum Velocity² ILM Replacement – 1700

Made in Slovenia - EU!

PLEASE NOTE:

  • To use the ABP set, an additional product – EK-Quantum Momentum² ROG Maximus Z690/Z790 Extreme I/O Cover – Black is required.
  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block! EK is offering a selection of such products in the coolants section.
  • This product should NOT be installed with any aluminum EK Fluid Gaming parts!
  • Fittings and plugs are not included! Due to the immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our website.

Additional Info

Material / Design / Color option Plexi
Threads G1/4
Sockets LGA 1700
Chip Manufacturer Intel
