Delivery:

EK-FCW8100 (no print & S/N)

Product EAN: 3831109869499
End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made in the EU

Details

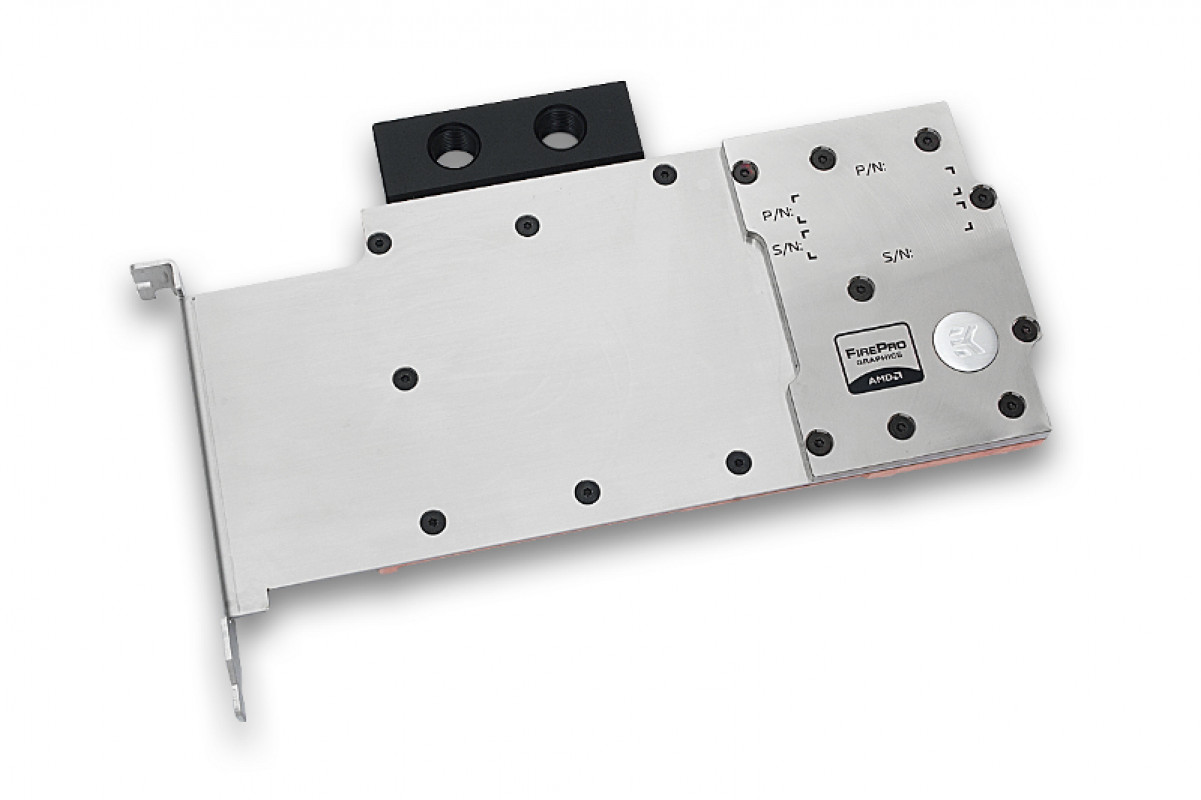

EK-FCW8100 is a high performance full-cover water block for AMD® FirePro W8100 series professional CAD/CAM graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain 100% stable under any given workload. EK-FCW8100 water block also features a high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

Base is made of C110 grade electrolytic copper while the top is made of laser cut stainless steel metal plate, which also serves as a I/O bracket. The sealing is performed by quality NBR rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 and M3x8 DIN7991 screws.

This water block features a very slim design therefore up to seven EK-FCW8100 or EK-FCW9100 water blocks can be used in a single ATX form factor motherboard. Contact us for custom multiple-port FC Terminal built per your demands.

Any G1/4" threaded opening can be used as inlet or outlet.

Enclosed in the box:
- EK-FCW8100 series water block with single FC Terminal
- mounting mechanism with screw-in brass standoffs
- thermal pads
- thermal grease (EK-TIM Ectotherm; 1g)

Made in Slovenia - Europe!

PLEASE NOTE:
- EKWB recommends the use of EK-Tube ZMT Matte Black 15,9/9,5mm for trouble-free (no plasticizer leakage), low maintainance systems. This industry grade tubing is the only solution for long lasting water cooling systems.
- Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.

Additional Info

Material / Design / Color option Full Copper
Threads G1/4
