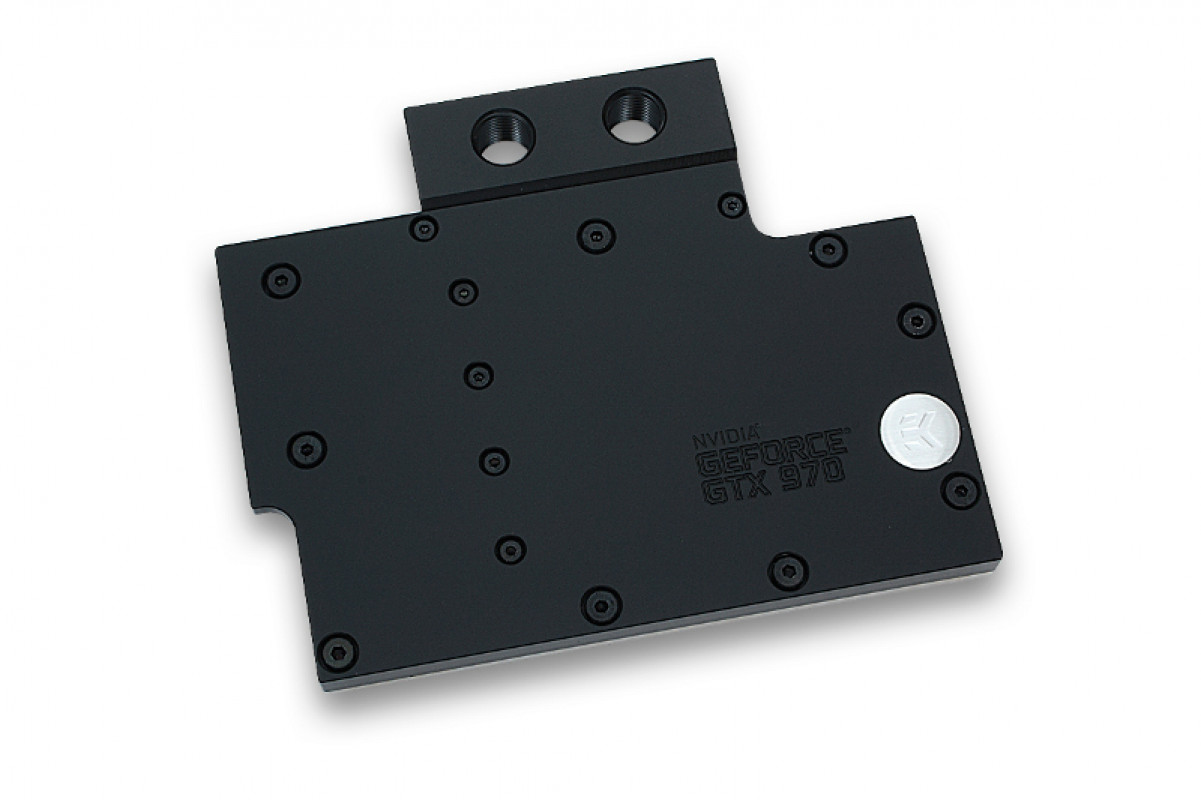

EK-FC970 GTX - Acetal+Nickel

EK-FC970 GTX is a high performance full-cover water block for nVidia reference (NVA-P2004) design GeForce GTX 970 series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC970 GTX water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps. The cooling engine now uses refined, more narrow microchannel structure to even further improve the heat transfer.

Base is made of nickel plated electrolytic copper while the top is made of POM Acetal material. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC970 GTX Backplate - Black, Nickel) which improves the looks of your graphics cards and also provide some passive cooling to the memory IC on the backside of the circuit board.

G1/4" threaded fittings can be used on both sides of the FC terminal. Up to four EK-FC980 GTX water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.

Enclosed:
- EK-FC970 GTX series water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts and washers
- 2x EK plug G1/4”
- 6mm Allen key
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)

Made in Slovenia - Europe!
