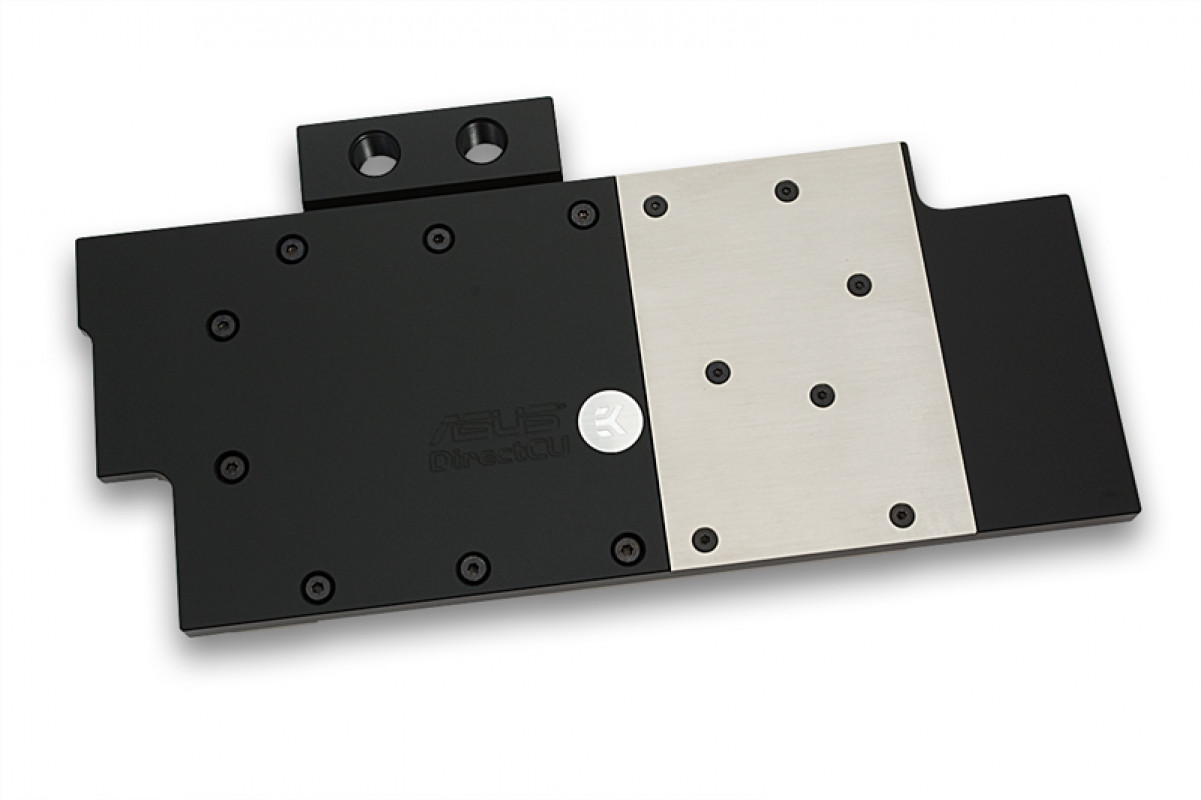

EK-FC R9-290X DCII - Acetal+Nickel

Product EAN:
3831109868744

EK-FC R9-290X DCII is a high performance full-cover water block for ASUS design Radeon R9 290X and -390X DirectCU II series design graphics card

End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

$120.99

Connect a pre-filled GPU water block to your EK-XLC Predator with QDC!

This Full-Cover GPU water block can be pre-filled and equipped with Quick Disconnnect (QDC) for connecting to the existing QDC found on the EK-XLC Predator.

Service Fee - Predator PRE-FILL

Additional Cost:

$29.99

See how it works

Details

EK-FC R9-290X DCII is a high performance full-cover water block for ASUS design Radeon R9 290X and -390X DirectCU II series graphics card. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC R9-290X DCII water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps. The cooling engine now uses refined, 0.6mm wide microchannel structure to even further improve the heat transfer.

Base is made of nickel plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is performed by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC R9-290X DCII Backplate - Black) which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.

G1/4" threaded fittings can be used on both sides of the FC terminal. Flow orientation doesn't matter and is thus not prescribed.

Up to four EK-FC R9-290X DCII water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link system is not compatible with this water block.

Enclosed:
- EK-FC R9-290X DCII series water block
- mounting mechanism with screw-in brass standoffs
- thermal pads
- thermal grease EK-TIM Ectotherm (1g)

Made in Slovenia - Europe!

PLEASE NOTE:
- Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.

- This water block aligns with EK-FC R9-280X DCII.

Additional Info

Material / Design / Color option Nickel Acetal
Threads G1/4
Chip Manufacturer AMD Radeon
