EK-DDC 3.25 (12V DC pump)
Product EAN:
3831109862629
End of life
Financing Available
Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.
Details

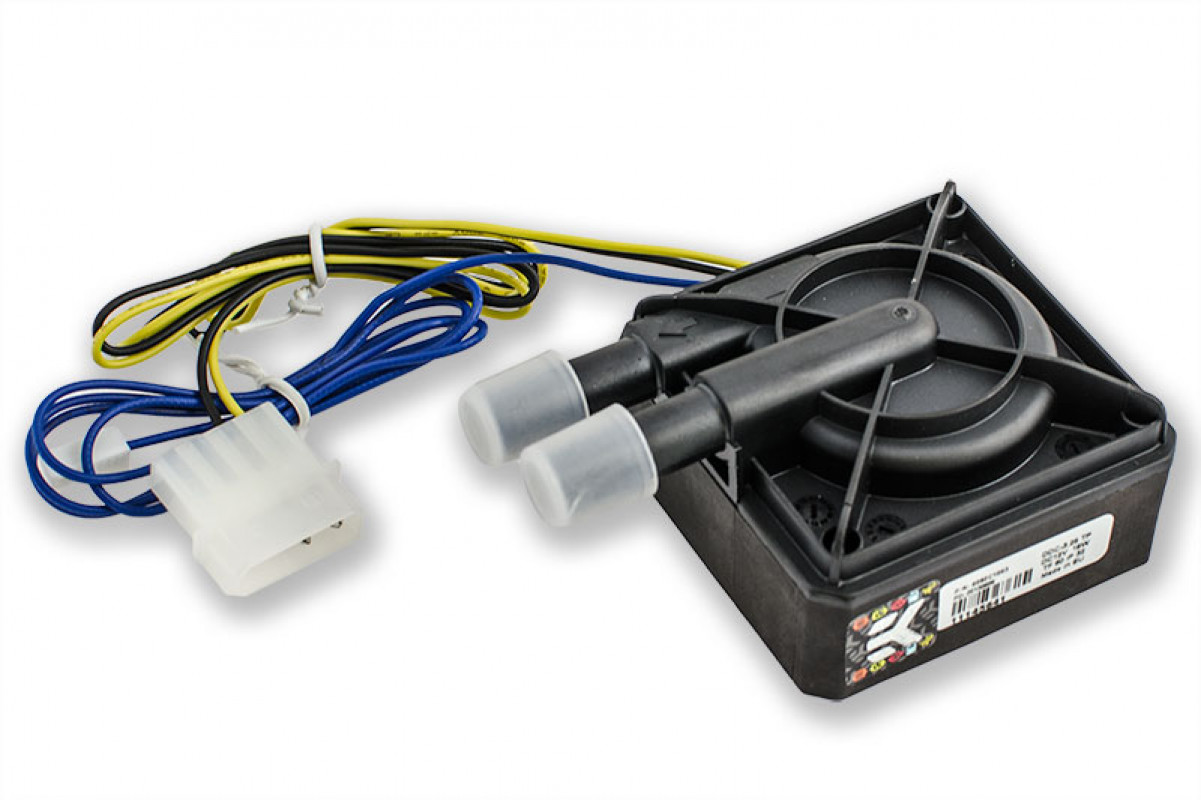

This is a branded Laing DDC high-performance water pump. This pump features 3/8" (10mm) non-removable plastic barbs to support any 10mm ID tubing.
This pump is compatible with any EK-DDC X-TOP pump top and X-RES series pump reservoir combo unit.
Despite a remarkably small footprint of 2.4" square, the pump features an astounding 5.7m of head to provide superior flow rates in today's most complex liquid cooled systems. The pump is also a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime).
It's compact design, quiet and powerful motor make it ideally suited for heavy duty cooling in environments where space is at a premium.
Technical specifications:
- Dimensions (W x D x H): 90 x 62 x 38 mm
- Motor: Electronically commuted ball bearing motor
- Rated voltage: 12 V DC
- Power consumption: 18 W
- Maximum head pressure: up to 5.7m
- Maximum flow rate: up to 900 L/h
- Maximum liquid temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
- Power connector: 4-Pin Molex- and 3-Pin DC FAN connector
Pump made in Hungary - EU!
PLEASE NOTE:
- DDC pumps are wet tested before shipping. While they are dried out before packaging, it can occasionally happen that the pump is deliver still slightly wet.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
- If no PWM signal is present, DDC pump runs at 100% RPM.
