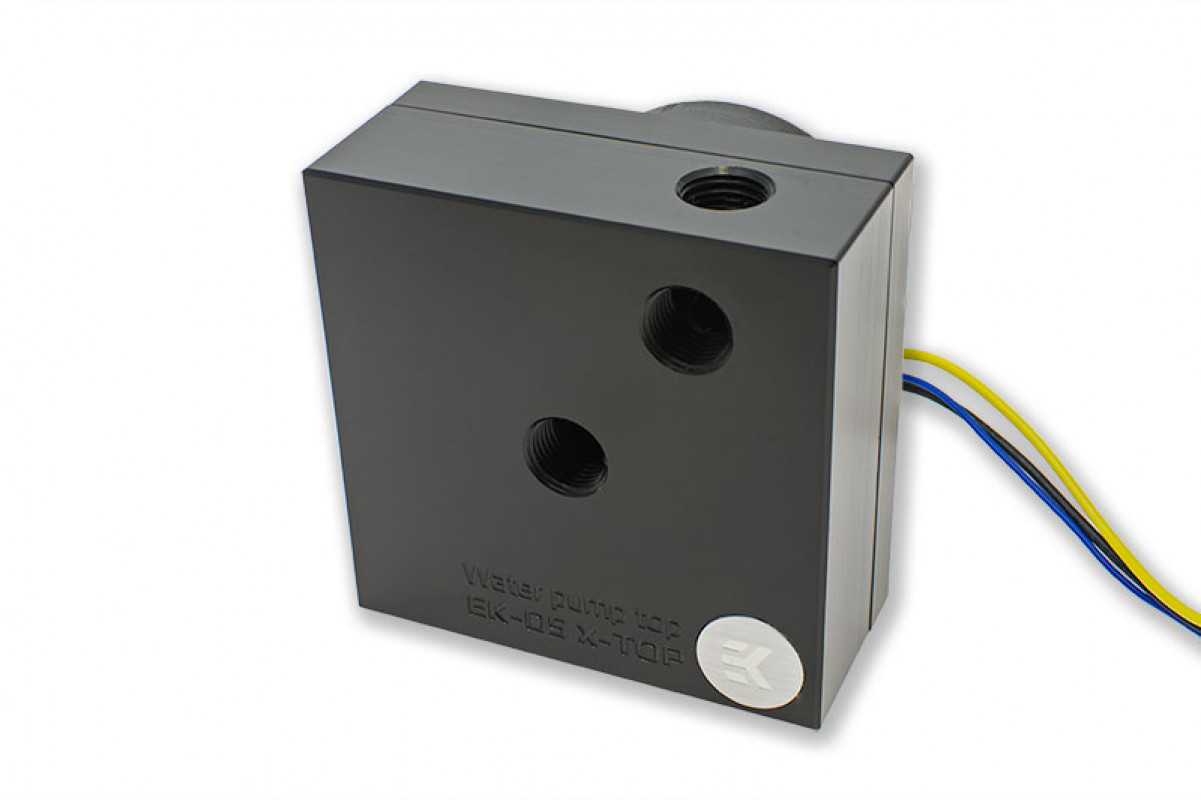

EK-XTOP D5 Vario - Acetal (incl. pump)

EK-XTOP D5 Vario - Acetal (incl. pump) is a High-Performance water cooling pump. The core of the unit is the market-proven Laing D5 Vario water pump (incl. tacho signal 3-pin header) and comes pre-assembled with Clean CSQ variant of EK-XTOP D5. This unit offers increased hydraulic performance (up to 15 %) compared to original Laing D5 Vario.

This water pump features three G1/4 threaded ports which allow installation of virtually any G1/4 thread fitting / barb. EK recommends EK-CSQ series compression fittings. Additional outlet port allows easier tube routing possibilities.

Top is made of quality POM Acetal material. Mounting mechanism and easy-to-follow installation guide are enclosed.

This pump is ideal for PC and other electronics water cooling. The D5 pump is equipped with an electronically commutated spherical motor. In a pump with a spherical motor the only moving part is a spherically shaped rotor which in this pump is held in place by a bearing ball made of ultra-hard and wear-resistant ceramic. Rated 50.000 hrs MTBF at 25°C ambient!

Adjustable speed in five steps:
Step 1: 1800 rpm
Step 2: 2550 rpm
Step 3: 3300 rpm
Step 4: 4050 rpm
Step 5: 4800 rpm

Technical specifications:
Motor: Electronically commuted spherical motor
Rated voltage: 12V DC
Power consumption: 23W
Permitted voltage range: 8-24V DC
Maximum pressure head: up to 3.9m
Maximum flow: up to 1500L/h
Maximum liquid temperature: 60°C
Materials: Stainless steel, PPS-GF40, EPDM O-rings, Aluminium oxide, hard coal
Power connector:  4-Pin Molex- and 3-Pin FAN connector

Made in Slovenia - EU!
Pump motor made in Hungary - EU!
