EK-Supremacy sTR4 RGB - Nickel

Product EAN:
3830046995803

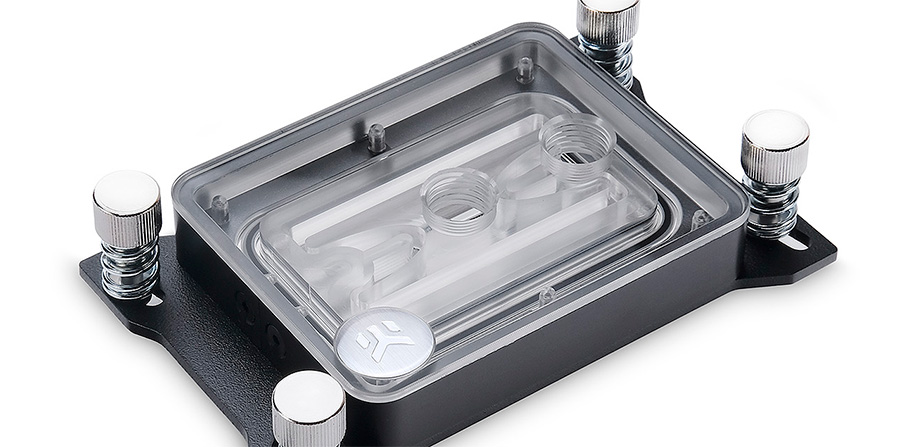

The EK-Supremacy sTR4 RGB is a CPU water block tailor-made for AMD® Ryzen™ Threadripper™ processors and it perfectly fits SocketTR4 motherboards. It comes with pre-assembled, error-preventing mounting mechanism, the result is a perfect installation which results in superb performance every time. The primary goal in designing the new EK-Supremacy sTR4 water block was to cover the entire IHS of HEDT AMD® Ryzen Threadripper processors and to optimize the fin structure according to the CPU die layout. The water block comes with pre-installed 4-pin 12V RGB LED strip.

$ 94.99

No stock!

Expected date of availability: 21 November 2018

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

Details

AMD Ryzen Threadripper Shop

The EK-Supremacy sTR4 RGB is a CPU water block tailor-made for AMD® Ryzen Threadripper processors and it perfectly fits SocketTR4 motherboards. It comes with pre-assembled, error-preventing mounting mechanism, the result is a perfect installation which results in superb performance every time.  The water block comes with pre-installed 4-pin 12V RGB LED strip.

EK-Supremacy sTR4

The primary goal in designing the new EK-Supremacy sTR4 water block was to cover the entire IHS of HEDT AMD® Ryzen Threadripper processors and to optimize the fin structure according to the CPU die layout. A dense micro-fin structure that counts 91 grooves is split in half in the center so that the CPU dies are cooled more directly. The water block features a patent-pending technology called TDC (Targeted Die Cooling), which is a unique approach to cooling of multi-die processors in order to maximize the cooling performance of every single die by addressing them directly.

EK-Supremacy sTR4 Fins

The base plate is covering 100% of the of the AMD® Ryzen Threadripper processors Integrated Heat Spreader (IHS). The EK-Supremacy sTR4 cooling engine implemented into the water block is the key to a high-flow design with low hydraulic restriction combined with high-performance cooling.

The top is made from CNC machined POM Acetal. Every EK-Supremacy sTR4 water block comes with a precisely machined copper base (sometimes referred to as ‘cold plate’) which is made from purest copper available on the market and is treated with nickel electroplating. Unlike some other CPU blocks, the sTR4 comes with a diamond cut unpolished cold plate to have a surface as flat as possible. This achieves the best possible contact with the large IHS of the AMD® Ryzen Threadripper processor, thus enabling better thermal transfer.

EK-Supremacy sTR4 Cold Plate

EK-Supremacy sTR4 comes with a pre-assembled error-preventing mounting mechanism that is installed directly onto the SocketTR4 mounting holes. The result is a perfect installation which results in optimal performance every time. This also means the water block is out of the box compatible with AMD’s server type Socket SP3 motherboards. With such a mounting solution, the user does not need to remove the motherboard from the case and so has a hassle-free installation procedure of the new CPU. The sliding mounting screws also allow the block to be flipped and to orient the In and Out ports based on the user's needs.

This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 4-pin LED connector is to be aligned with the +12V marking on the RGB header. You can easily remove the LED strip cover which is mounted with two screws to replace the LED strip with some other type LED strip.

EK RGB ALL

The water block is delivered with a small tube of high-performance Thermal Grizzly Hydronaut thermal grease. It’s suitable for high demanding users and for overclocking due to its excellent thermal conductivity. The thermal grease consists of a silicon-free structure, this makes it very light and highly flexible and easy to apply. It’s recommended that users follow the EK-Supremacy sTR4 water block installation manual for the suggested method of thermal grease application for the best-expected results.

CPU socket compatibility:
- AMD SocketTR4 (Socket SP3r2)
- AMD Socket SP3

AMD Ryzen Threadripper

Enclosed:
- EK-Supremacy sTR4 RGB water block
- TIM / thermal grease: Thermal Grizzly Hydronaut (EKWB 1.0g)

Made in Slovenia - EU!

PLEASE NOTE:

  • TO PREVENT DAMAGE TO YOUR WATER BLOCK, YOUR COOLANT MUST CONTAIN ANTICORROSIVES AND BIOCIDES! EK RECOMMENDS USE OF EK CRYOFUEL COOLANTS.
  • For best results, please refer to the installation manual regarding the thermal compound application.
  • A backplate is not included! The water block is mounted directly onto the  AMD TR4 socket mounting holes.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
Sockets AMD
