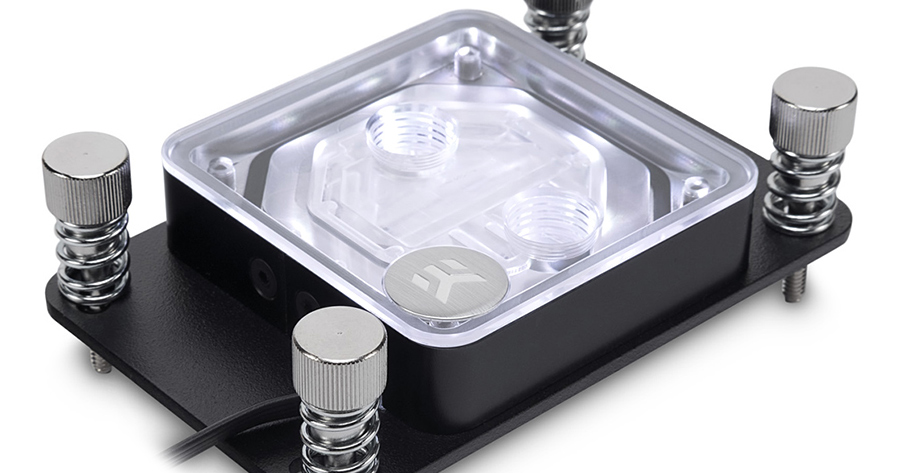

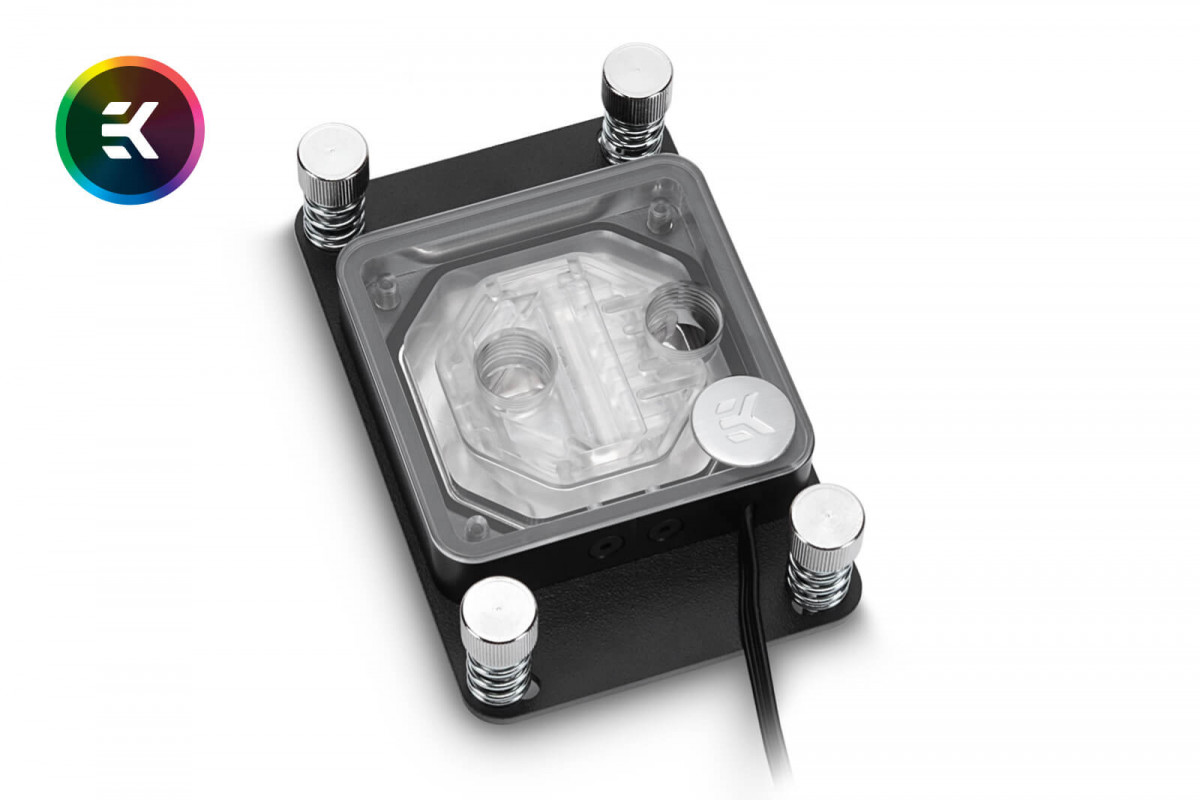

EK-Supremacy EVO AMD RGB is a flagship high-end, highly adaptable CPU water block, just as all the other EK-Supremacy EVO models so far. By combining jet plates and jet inserts, the cooling engine enables the water block to be fine-tuned for all mainstream Intel and AMD sockets for maximum performance. A high-flow design with low hydraulic restriction also allows this product to be used in setups using weaker water pumps or lower pump speed for added silent operation. The water block comes with pre-installed 4-pin 12V RGB LED strip.
The EK-Supremacy EVO AMD RGB water block comes with a precisely machined copper base (sometimes referred to as the cold plate) with a dense micro-fin structure that counts 52 grooves with a spacing of 0.25mm apart. The purest copper available on the market is used which is treated with nickel electroplating and further polished to an absolute mirror finish. The top is CNC machined out of high-quality acrylic glass and the newly added frame features a subtle black brushed aluminum look.
EK-Supremacy EVO AMD RGB comes with a pre-assembled error-preventing mounting mechanism that is installed directly onto the stock backplate that is factory supplied with Socket AM4 motherboards. The result is a perfect installation which results in optimal performance every time. A small tube of Thermal Grizzly Hydronaut high-performance thermal paste is also provided along with the water block.

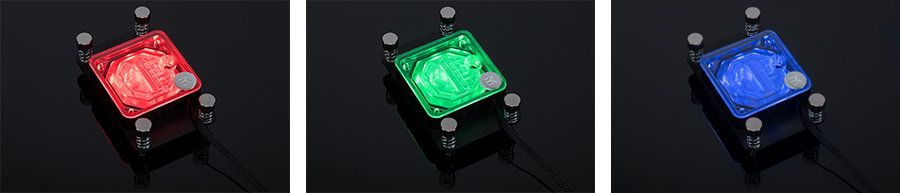

This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 4-pin LED connector is to be aligned with the +12V marking on the RGB header. You can easily remove the LED strip cover which is mounted with two screws to replace the LED strip with some other type LED strip.
Technical specifications:
- RGB cable length: 30cm
- RGB connector classic 4-pin (12+ R G B)
CPU socket compatibility:
- AMD Socket AM4
- AMD Sockets: AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+
Enclosed:
- EK-Supremacy EVO AMD RGB series water block
- TIM / thermal grease: Thermal Grizzly Hydronaut (EKWB 1.0g)
- Installation manual
Made in Slovenia - EU!
