Delivery:

EK-Quantum Vector² XC3 RTX 3080/90 D-RGB - Nickel + Acetal

Product EAN: 3831109892244

Out of stock

$248.99

$154.37 -38 %

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Details

High-Performance GPU Cooling

The New Vector² water blocks effortlessly solve the issue of excessive heat generation, during high load, on both the GPU core, voltage regulation module, and the GDDR6X VRAM of the EVGA XC3 RTX 3080, 3080 Ti, and 3090 Graphic cards.

Backplate Included

The package now contains:

  • A high-performance GPU water block of the latest generation
  • Premium quality CNC-machined backplate.
  • Mounting mechanism
  • Thermal paste
  • Thermal pads
  • Thermal pad installation quick start guide

For the first time, a black full coverage backplate is included with the GPU water block. Its distinctive L-shaped profile encloses the entire GPU while, at the same time, increasing the cooling surface area. The backplate also comes with pre-installed captive backplate screws that simplify the installation. They ensure that the correct size screw is always used where it is needed.

Vector2 GPU water block for EVGA XC3 RTX 3080, 3080 ti and 3090 GPU

Technical and Visual Master Piece

The new look of the next-gen water blocks is dominated by minimalistic straight lines. A 10mm thick copper cold plate is used for all Vector² GPU water blocks. The Acetal version of the Vector² GPU water blocks are all black and stealthy but are still equipped with a sophisticated Addressable RGB light guide that goes around the entire water block, making an elegant visual effect even on the backside.

Vector2 GPU water block for EVGA XC3 RTX 3080, 3080 ti and 3090 GPU

EK-Matrix7 Support - For Easier Loop Assembly and Straight Lines

Matrix7 standardizes the dimensions of the products, including the port position and spacing, making liquid cooling loop assembly more intuitive and easier. EK-Quantum Vector² GPU cooling enclosures follow the EK-Matrix7 standard, making them seamlessly integrate with EK-Quantum Reflection² distribution plates. This brings compatibility with the EK vertical GPU mount l perfect alignment of ports in both horizontal and vertical positions, meaning less time used for planning of the loop, bending tubes, and the end result will still be an epic build.

EK-Quantum Vector² XC3 RTX 3080/90 D-RGB - Nickel + Acetal

The EK-Quantum Vector² XC3 RTX 3080/90 D-RGB - Nickel + Acetal GPU water block + backplate set is compatible with:

  • EVGA XC3 RTX 3080
  • EVGA XC3 RTX 3080 Ti
  • EVGA XC3 RTX 3090

For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

New Cooling Engine - For Best Cooling In Every Scenario

The Vector water block actively cools the GPU, VRAM (on the front), power stages, and chokes in the VRM (voltage regulation module), and passively the PCB hotspots that are found on the backside of the GPU core, and the VRM (voltage regulation module). On the RTX 3090, the VRAM located on the backside is passively cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM.

Vector2 GPU water block for EVGA XC3 RTX 3080, 3080 ti and 3090 GPU

The implemented 3rd-generation Vector cooling engine uses a novel 3D machined acrylic insert to improve flow distribution and thermal performance. This new cooling engine is based on an Open Split-Flow design, but the asymmetric shape of the jet insert helps distribute an even flow between the first and last copper fins. The fin structure geometry has been optimized to provide even flow distribution with minimal losses and optimal performances even when used in reversed water flow scenarios. It is also characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance.

Vector2 GPU water block for EVGA XC3 RTX 3080, 3080 ti and 3090 GPU

Great care was taken to achieve a symmetrical flow domain by utilizing an internal bridge to secondary components. This was done to ensure the cooling of secondary components without sacrificing flow distribution over the GPU core.

Premium Materials and Clever Engineering for Longevity and Top Performance

All Vector² GPU water blocks use a thick 10mm copper coldplate with an acetal terminal attached directly to it to create a robust assembly. A single o-ring design is used to create a seal between the cold plate and the water block top, reducing the number of failure points. This also means that you have seen the end of stainless steel bridge plates that were utilized on GPU water blocks before. This simple construction provides confidence during customization and maintenance. Tactile magnetic covers are used to conceal the terminal screws, which allows rotating the branding when the GPU is inverted in the case.

The cold plate is CNC-machined out of high-quality, pure electrolytic copper which is then nickel-plated, while its top is CNC-machined out of durable black Acetal. The black anodized backplate has a new L-shaped profile that touches the base of the water block and encloses the entire GPU while increasing the cooling surface leading to even better performance.

Included EK-Quantum Vector² XC3 RTX 3080/90 Backplate - Black

For the first time, captive backplate screws are added to the backplate. They simplify installation, ensuring the correct length is always used where it is needed to avoid any user error or second-guessing.

Vector2 GPU water block for EVGA XC3 RTX 3080, 3080 ti and 3090 GPU

The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, VRAM on the 3090 cards, and backside of the printed circuit board VRM section.

Rotatable Magnetic Covers

Sleek magnetic covers are used to conceal the terminal screws, which allows rotating the branding when the GPU water block and active backplate enclosure is inverted in the case, or being used on a vertical GPU mount.

Vector2 GPU water block for EVGA XC3 RTX 3080, 3080 ti and 3090 GPU

Addressable D-RGB Compatibility

A dense D-RGB LED strip illuminates the parting line of the stand-out element on both sides of the block. This subtle effect allows vivid displays of color while the block remains entirely black. The individually addressable RGB LED is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header (Pinout: +5V | Data | Blocked | Ground).

EK Vector RGB compatibility

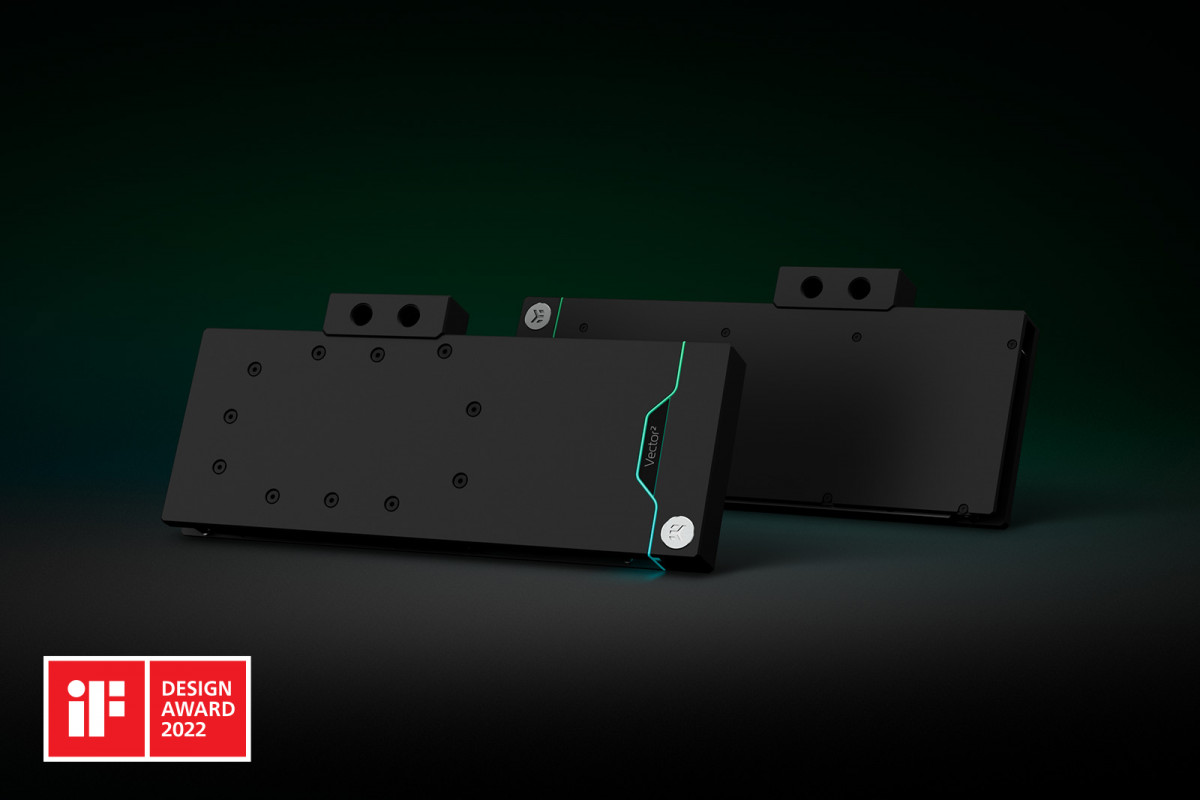

Vector² Water Blocks Won an iF Design Award

EK’s premium water blocks from the Quantum Vector² product line boast an iF Design Awards for 2022. These prestigious awards signify top-tier design levels delivered by our products to both consumers and the design community. Not only do Vector² water blocks have aesthetically pleasing looks to deserve these awards, but they also bring patent-pending technologies and valuable features to the table.

iF Awards 2022

Enclosed:

- EK-Quantum Vector² XC3 RTX 3080/90 D-RGB series high-performance water block
- EK-Quantum Vector² XC3 RTX 3080/90 Backplate - Black
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- Thermal pad installation quick start guide
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
Thermal grease EK-TIM Ectotherm (1g)

Technical Specification:

- Dimensions: (LxHxW): 302,5 x 134 x 27mm
- D-RGB LED count: 28
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Data | Blocked | Ground)

Made in Slovenia - Europe!

PLEASE NOTE:

  • This water block is not compatible with NVLink and NVIDIA SLI.
  • Due to an immense variety of fittings/barbs available on the market and no prescribed standards, we guarantee compatibility only for connectors bought from our website.
  • Factory backplates are not compatible with this water block!
  • This product should NOT be installed with any aluminum Fluid Gaming parts!
  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block! EK is offering a selection of such products in the coolants section.
  • Only compatible with Active Backplate in a Nickel + Acetal finish due to D-RGB implementation.

Additional Info

Material / Design / Color option Nickel Acetal
Threads G1/4
Chip Manufacturer Nvidia GeForce
