EK-Quantum Vector² Strix RTX 3080/90 ABP D-RGB - Nickel + Plexi

Product EAN: 3831109891353

In stock

$199.99

$159.99 -20 %

Estimated Delivery Date: 9 December 2022
?
  • DHL Economy tracking: 9 December 2022
  • DHL Express with tracking: 9 December 2022
  • UPS with tracking: 9 December 2022

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Details

This product can only be installed with EK-Quantum Vector² Strix RTX 3080/90 D-RGB - Nickel + Plexi

EK-Quantum Vector² Strix RTX 3080/90 ABP D-RGB - Nickel + Plexi is an Active Backplate addon for the EK-Quantum Vector² Strix RTX 3080/3090 D-RGB - Nickel + Plexi GPU water block. It is made to actively cool the backside of ROG Strix GeForce RTX™ 3080, 3080 Ti, and 3090 GPUs. As with the water block, when upgraded with an active backplate, the entire enclosure stays fully EK-Matrix7 compliant on every axis. This ensures ease of integration and alignment with all other EK-Matrix7 products.

For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

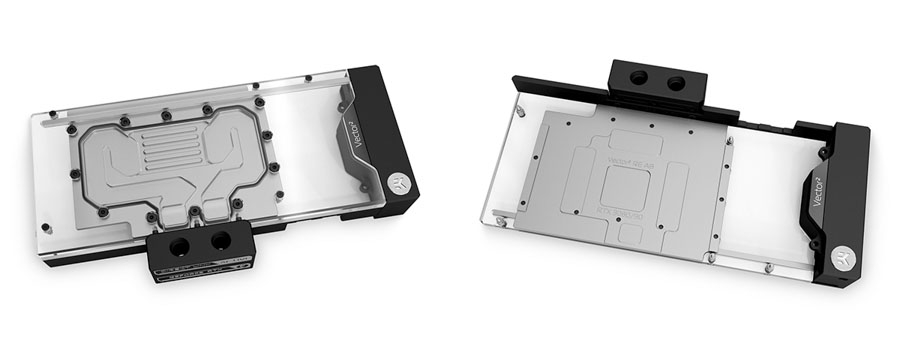

EK Vector² Active Backplate for the ROG Strix RTX 3080 and 3090 RE GPU

EK-Quantum Vector² Strix RTX 3080/3090 Active Backplate

The EK-Quantum Vector² Strix RTX 3080/90 ABP comes with a new terminal that replaces the stock terminal arriving with the Vector² water block and links the water block and Vector Active Backplate into a single unit. This way, the whole enclosure requires only one inlet and one outlet, removing unnecessary additional tubing and reducing clutter. It is the ultimate aesthetic and performance solution that finds your GPU sandwiched between two water blocks, allowing maximum cooling.

EK Vector² Active Backplate for the ROG Strix RTX 3080 and 3090 RE GPU

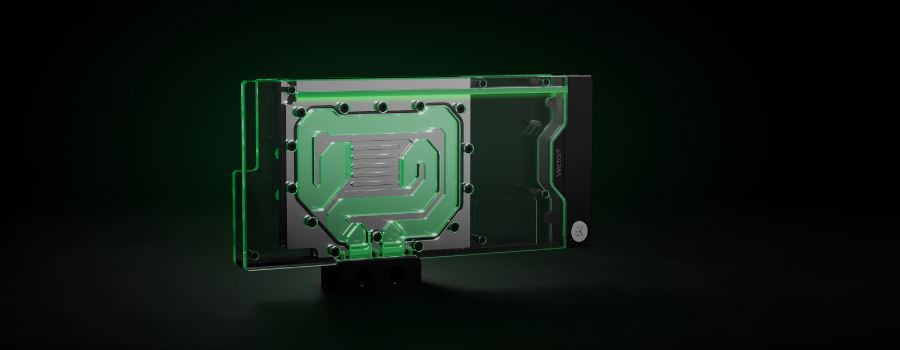

What Does it Cool?

The Vector² Active Backplate directly cools the PCB hotspots that are found on the backside of the GPU core and the VRM (voltage regulation module). On the RTX 3090, the VRAM located on the backside is cooled, while the RTX 3080 gets cooling for the PCB located around the front-mounted VRAM. Cooling liquid is channeled over all these critical areas.

EK Vector² Active Backplate for the ROG Strix RTX 3080 and 3090 RE GPU

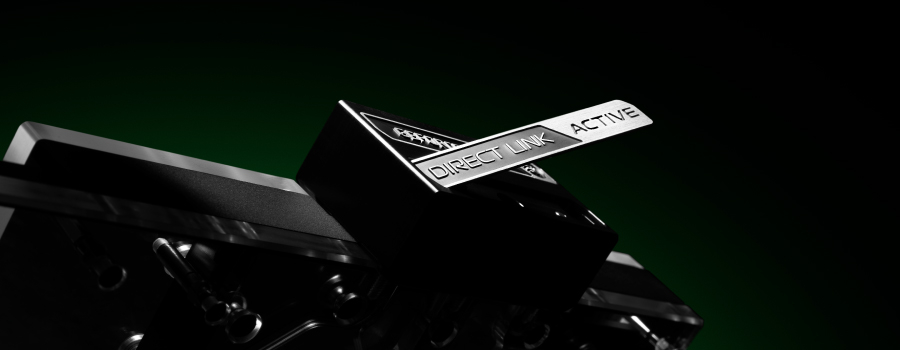

Innovative and Advanced Direct Link Flow Solution Allows Both Serial and Parallel Connections

These new Vector² Active Backplates feature a Direct Link flow solution - the first multiple block solution to implement a conventional 4-port terminal layout. That allows serial and parallel connections from adjacent or opposing sides of the block. It was made possible by the addition of a machined brass insert that diagonally links the water block directly to the active backplate inside the acetal terminal. Direct Link proves invaluable when incorporating an ABP with a standard distribution plate or vertical GPU mount.

EK Vector² Active Backplate for the ROG STRIX RTX 3080 and 3090 RE GPU

Hidden Terminal Screws for the Ultimate Aesthetic

Tactile magnetic covers are used to conceal the terminal screws, which allows rotating the branding when the GPU is inverted in the case.

EK Vector² Active Backplate for the ROG STRIX RTX 3080 and 3090 RE GPU

CNC-Machining and Premium Materials

The base of the active backplate is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. A black-anodized aluminum side cover is included with every active backplate to conceal the entire PCB and create a seamless enclosure.

D-RGB lighting on EK-Quantum Vector² Strix RTX 3080/3090 ABP D-RGB

RGB compatibility

D-RGB LED lighting is deployed on the longest edge of the water block for improved uniformity and brightness. The PCB and diodes are concealed inside a clean aluminum extrusion. The individually addressable RGB LED is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

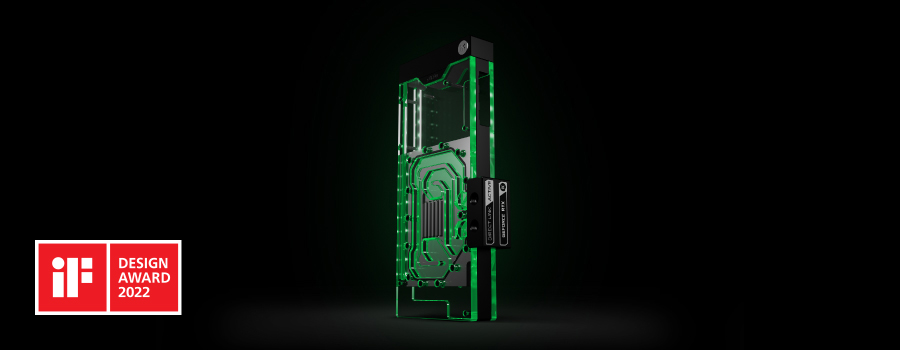

Vector² Water Blocks Won an iF Design Award

EK’s premium water blocks from the Quantum Vector² product line boast an iF Design Awards for 2022. These prestigious awards signify top-tier design levels delivered by our products to both consumers and the design community. Not only do Vector² water blocks have aesthetically pleasing looks to deserve these awards, but they also bring patent-pending technologies and valuable features to the table.

iF Awards 2022

Warning:

  • EK only guarantees compatibility with included EK-brand thermal pads. Installation process, cooling performance, and block contacts are tested exclusively with EK-brand thermal pads.
  • Listed thermal pad thicknesses apply only to EK thermal pads which are included in the package.
  • EK does not guarantee compatibility with aftermarket alternatives for thermal interface material.
  • Requires EK-Quantum Vector² Strix RTX 3080/90 D-RGB - Nickel + Plexi to operate properly. Nickel + Acetal variant of this block is not compatible due to LED implementation.

Enclosed:

- EK-Quantum Vector² Strix RTX 3080/90 ABP D-RGB - Nickel + Plexi
- Necessary mounting screws, nuts, and washers
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads

Technical Specification:

- Dimensions: (LxHxW): 307,5 x 155 x 41mm
- D-RGB LED count: 15
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground)

Made in Slovenia - Europe!

PLEASE NOTE:

  • This block is made for ROG Strix 3080, 3080 Ti, and 3090 cards. It is not a stand-alone unit and requires an EK-Quantum Vector² Strix RTX 3080/90 D-RGB Nickel + Plexi water block to pair with. Nickel + Acetal variant of the same water block is not compatible due to LED implementation.
  • Due to the immense variety of fittings/barbs available on the market, we guarantee compatibility only with EK fittings.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!
  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block! EK is offering a selection of such products in the coolants section.
  • Make sure there is enough clearance for the Active Backplate to fit above the PCIe slot. This Active Backplate requires 15mm clearance across the block’s entire length. The clearance is measured from the center of the PCIe slot, where the hole is located.

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
Chip Manufacturer Nvidia GeForce
