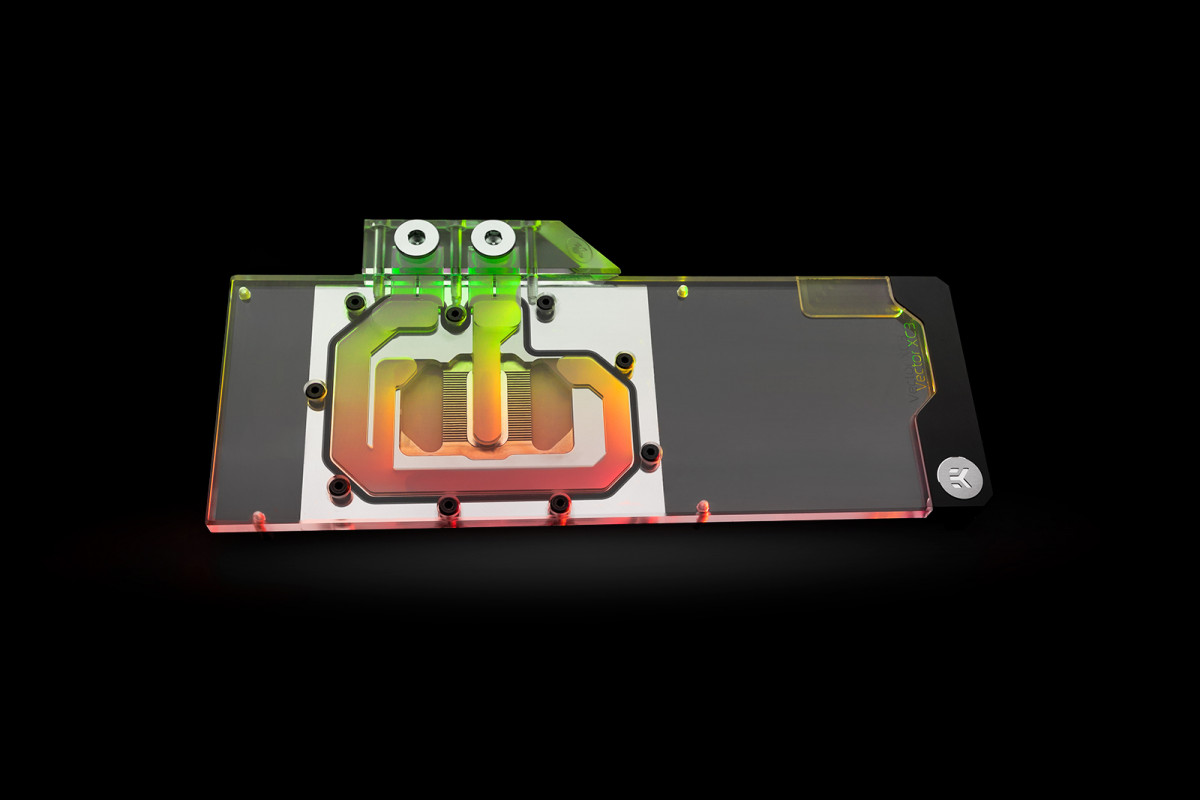

EK-Quantum Vector XC3 RTX 3070 D-RGB - Nickel + Plexi

Product EAN: 3831109836552

Out of stock. Expected date of availability is October 8, 2021

$184.99
Estimated Delivery Date: 15 October 2021
?
  • DHL Economy tracking: 15 October 2021
  • DHL Express with tracking: 15 October 2021
  • UPS with tracking: 15 October 2021

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Details

This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for EVGA® XC3 RTX 3070 graphics cards based on the latest NVIDIA® Ampere™ architecture.  For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

An EK water block for EVGA XC3 GeForce RTX 3070

EK-Quantum Vector XC3 3070 D-RGB water block is compatible with EVGA XC3 RTX 3070 graphics cards.

EK Water block for EVGA XC3 RTX 3070

The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with the power stages and inductors of the VRM.

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them. Additionally, this new design allows the terminal to be screwed directly onto the copper cold plate of the GPU block, making it more rigid and reducing the chances of damaging the water block.

The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

EK Water block for EVGA XC3 RTX 3070

Fin array is populated by 27 microfins with 0.5mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards.

EK Water block for EVGA XC3 RTX 3070

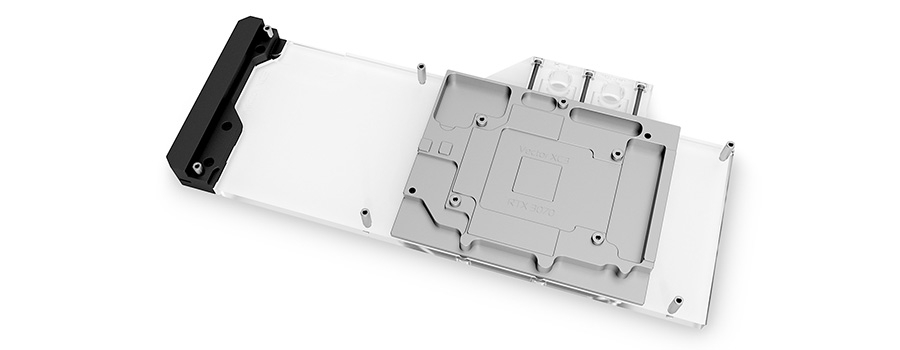

The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of glass-like cast Acrylic. These 2nd generation Vector GPU water blocks also feature plexi terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.

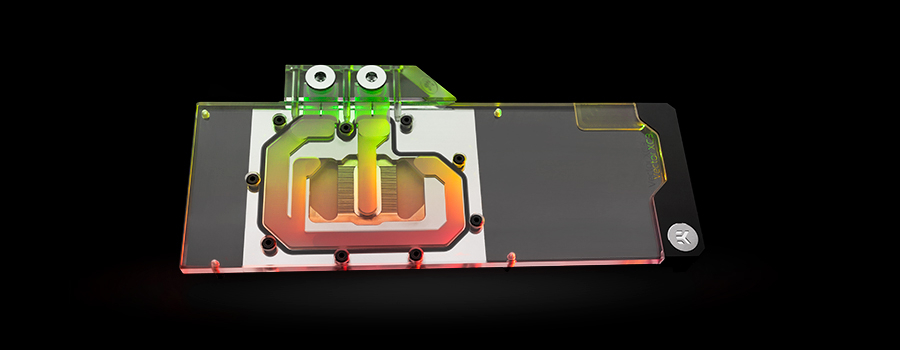

D-RGB lighting on EK-Quantum Vector XC3 RTX 3070 D-RGB water block

The aesthetic end-piece is housing the addressable D-RGB LED strip. This water block boasts a total of 5 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

RGB compatibility

Backplate for the EK-Quantum Vector XC3 RTX 3070 D-RGB water block

EK recommends the purchase of a retention backplate. The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, VRAM, and backside of the printed circuit board VRM section.

Enclosed:

- EK-Quantum Vector XC3 RTX 3070 D-RGB series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
Thermal grease EK-TIM Ectotherm (1g)

Technical Specification:

- Dimensions: (LxHxW) - 277x125x22mm
- D-RGB cable length: 500mm
- D-RGB LED count: 5
D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Made in Slovenia - Europe!

PLEASE NOTE:

  • Due to the immense variety of fittings/barbs available on the market, we guarantee compatibility only with EK fittings.
  • Factory backplates are not compatible with this water block!
  • Check your toolbox if you are missing this special Hex adapter for some of the screws.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!
  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel plated water block! EK is offering a selection of such products in the coolants section.

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
Chip Manufacturer Nvidia GeForce
