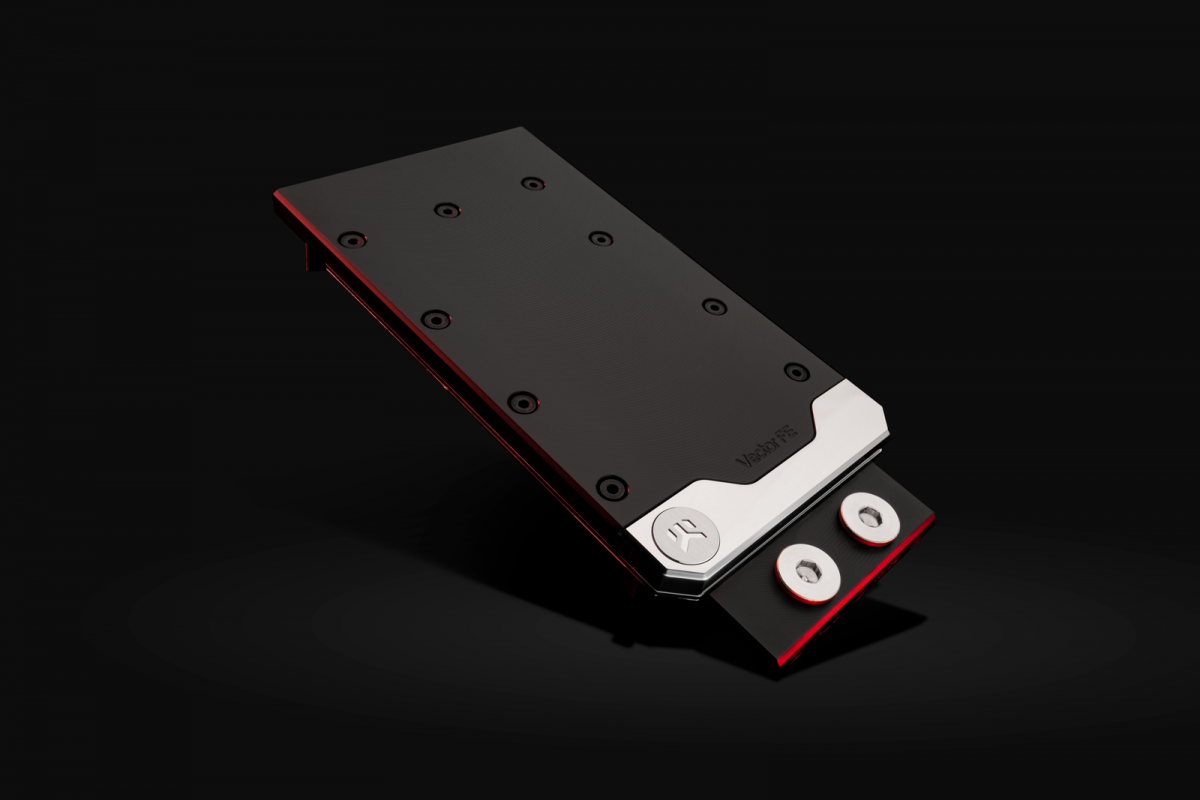

EK-Quantum Vector FE RTX 3070 is an updated design of the 2nd generation Vector GPU water block from the EK® Quantum Line. It is made for graphics cards based on the latest NVIDIA® Ampere™ architecture. This water block fits the Founders Edition RTX 3070. For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.
EK-Quantum Vector RTX FE water block for Founders Edition GeForce RTX 3070
EK-Quantum Vector RTX FE 3070 water block is compatible with Founders Edition GeForce RTX 3070 graphics cards. It is purpose-designed with a much thicker copper base to clear the tall components on the card and additionally, this new design allows the terminal to be screwed directly onto the copper cold plate of the GPU block, making it more rigid and reducing the chances of damaging the water block. This water block features a unique acetal terminal that is located in the far end of the GPU making the whole enclosure slimmer and perfect for small form factor cases.
The Vector water block directly cools the GPU, VRAM, and the VRM (voltage regulation module) as a cooling liquid is channeled right over these critical areas. The water block is in contact with MOSFETs and chokes to maximize cooling and minimize the chances of coil whine. These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them.
The EK-Quantum Vector FE Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.
Fin array is populated by 23 microfins with 0.6mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards.
The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable black POM acetal. These 2nd generation Vector GPU water blocks also feature acetal terminals that match the top cover. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.
Backplate for the Vector FE 3070 water block
EK recommends the purchase of a retention backplate, which improves the overall aesthetics of your graphics cards, and also provides additional passive cooling for the GPU core and backside of the printed circuit board VRM section.
Enclosed:
- EK-Quantum Vector RE RTX 3070 series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)
Technical Specification:
- Dimensions: (LxHxW) - 205x98x21mm
Made in Slovenia - Europe!
