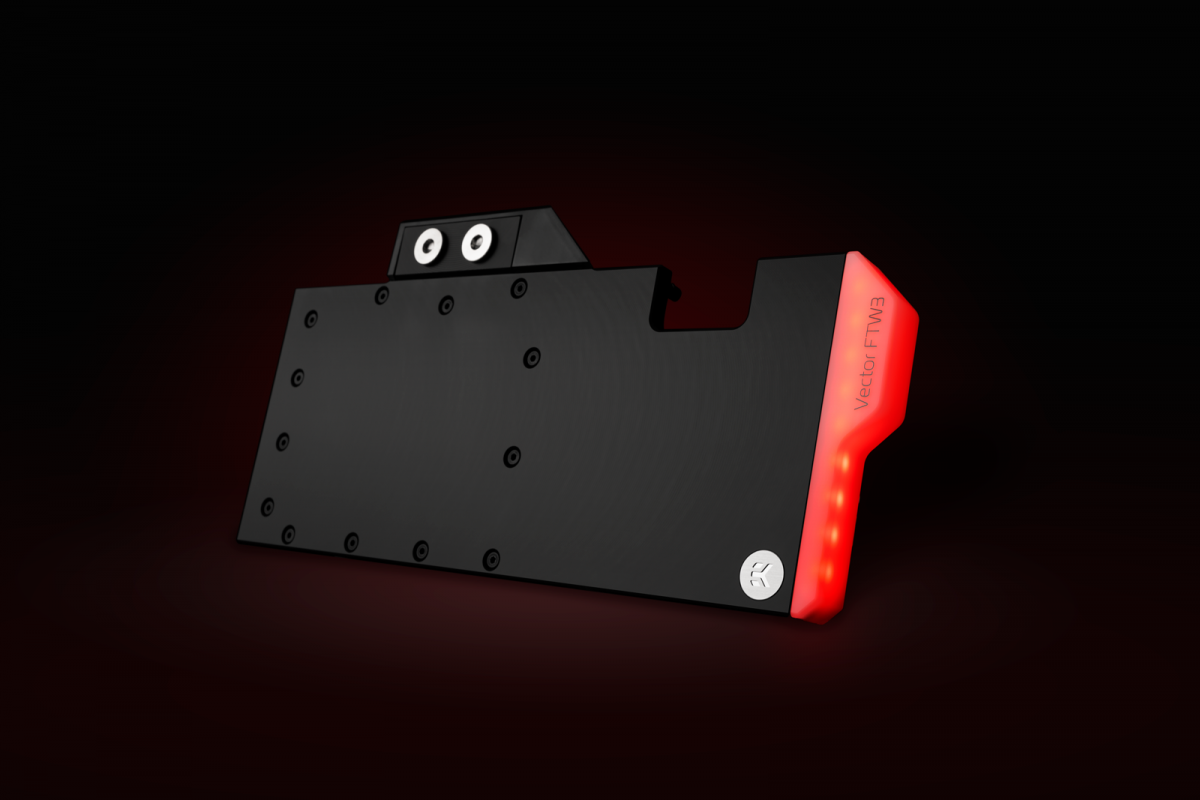

EK-Quantum Vector FTW3 RTX 3070 D-RGB - Nickel + Acetal

Product EAN: 3831109836422
End of life

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Details

This is the 2nd generation Vector GPU water block from the EK® Quantum Line, designed for EVGA® FTW3 RTX 3070 graphics cards based on the latest NVIDIA® Ampere™ architecture. For a precise compatibility match of this water block, we recommend you refer to the EK Cooling Configurator.

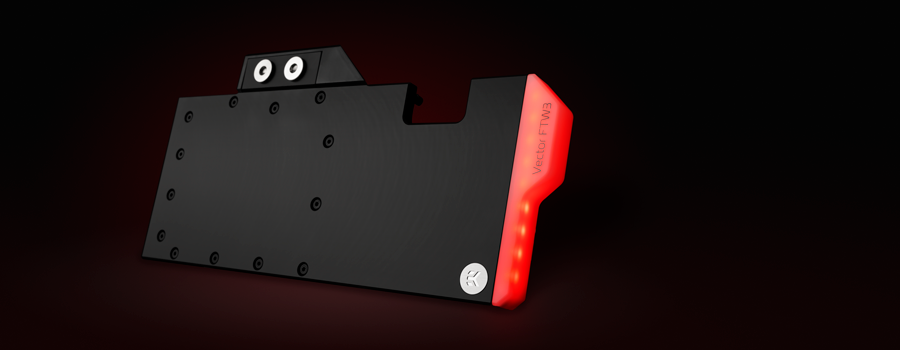

An EK Water Block for FTW3 RTX 3070

EK-Quantum Vector FTW3 3070 D-RGB water block is compatible with FTW3 RTX 3070 graphics cards. The Vector water block actively cools the GPU, VRAM, power stages, and chokes in the VRM (voltage regulation module).

EK Water block for the EVGA RTX 3070 FTW3 GPU

These newly developed water blocks feature optimized flow paths that reduce hydrodynamic instabilities and vortexing (dead spots) inside of them.

The EK-Quantum Vector Series water blocks use an Open Split-Flow cooling engine design, which proved to be a superior solution for GPU water blocks. It is characterized by low hydraulic flow restriction, meaning it can be used with weaker water pumps or pumps running on low-speed settings, and still achieve top performance. The jet plate and fin structure geometry have been optimized to provide even flow distribution with minimal losses and optimal performance when used in any given coolant flow orientation.

The fin array is populated by 28 microfins with 0.6mm wide microchannels that provide optimal cooling performance, without unnecessary flow restrictions or clogging hazards.

EK Water Block for EVGA RTX 3070 FTW3

The base of the block is CNC-machined out of nickel-plated electrolytic copper, while its top is CNC-machined out of durable POM acetal. These 2nd generation Vector GPU water blocks also feature Acetal terminals. The watertight sealing is ensured by high-quality EPDM O-rings, while brass standoffs are already pre-installed and allow for a safe and easy installation procedure.

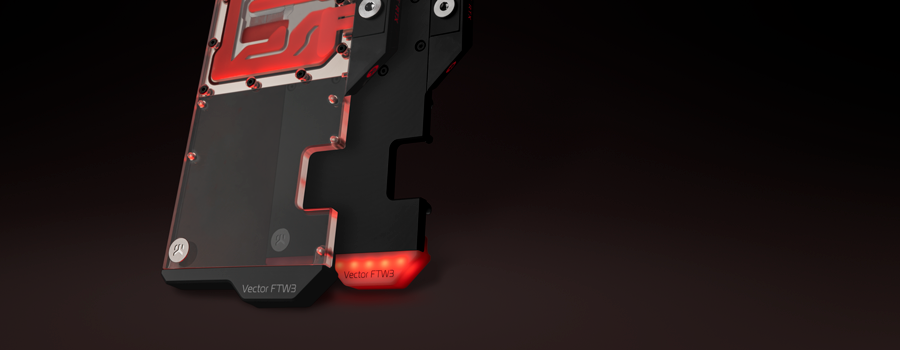

D-RGB lighting on EK-Quantum Vector FTW3 RTX 3070 D-RGB water block

EK Vector RGB compatibility

The aesthetic corner end-piece is housing the addressable D-RGB LEDs. This water block boasts a total of 8 individually addressable RGB LEDs, and it is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB (addressable) header.

Backplate for the EK-Quantum Vector FTW3 3070 water block

EK recommends the purchase of a retention backplate, especially for the 3070 models of graphics cards. The backplate improves the overall aesthetics of your graphics cards and also provides additional passive cooling for the GPU core, and backside of the printed circuit board VRM section.

Enclosed:

- EK-Quantum Vector FTW3 RTX 3070 D-RGB series high-performance water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x Nickel plated brass plug G1/4”
- EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
- Thermal pads
Thermal grease EK-TIM Ectotherm (1g)

Technical Specification:

- Dimensions: (LxHxW) - 314x155x21mm

Made in Slovenia - Europe!

PLEASE NOTE:

  • Due to an immense variety of fittings/barbs available on the market and no prescribed standards, we guarantee compatibility only for connectors bought from our website.
  • Factory backplates are not compatible with this water block!
  • Check your toolbox if you are missing this special Hex adapter for some of the screws.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!
  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel plated water block! EK is offering a selection of such products in the coolants section.

Additional Info

Material / Design / Color option Nickel Acetal
Threads G1/4
Chip Manufacturer Nvidia GeForce
