Details

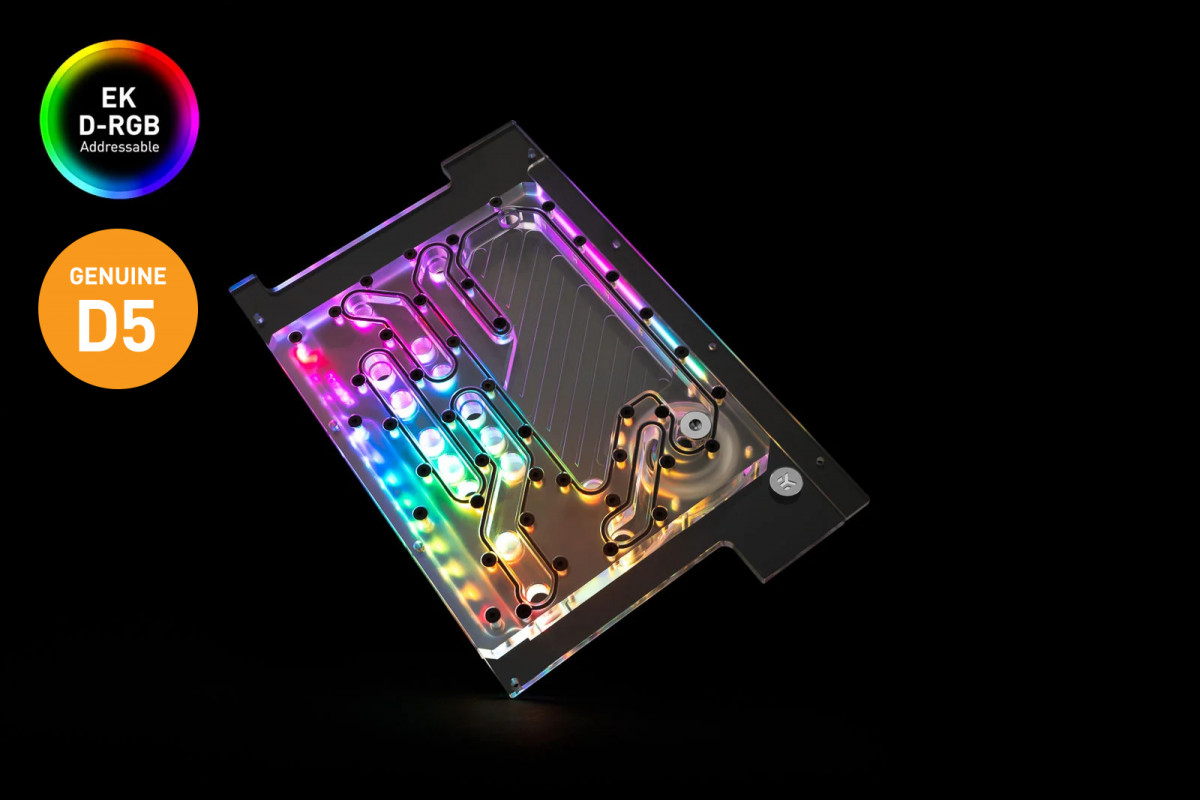

The EK-Quantum Reflection PC-O11D MINI D5 PWM D-RGB, a custom-designed water cooling distribution plate that serves as a reservoir, coolant routing, and pump solution. This “distro plate” is specifically designed to fit in the front of the Lian Li O11D MINI case to provide an exquisite aesthetical showpiece and an advanced water cooling solution with a genuine D5 pump already installed.

EK-Quantum Reflection distro plate for Lian Li O11D Mini

This water distribution plate comes with a very powerful yet silent, PWM-controlled authentic D5 pump. The goal was to make a product that has enough power to offer great reliability and outstanding performance with multiple blocks and radiators while keeping the noise level down to a minimum.

EK-Quantum Reflection distro plate for Lian Li O11D Mini

Installing this distro plate in the front of the case allows two radiator configurations based on your motherboard form factor.

ATX:

Bottom: EK-CoolStream SE360 radiator
Top: None
Side: EK-CoolStream SE240 radiator

mini-ITX/m-ATX:

Bottom: EK-CoolStream SE360 radiator
Top: EK-CoolStream SE360 radiator
Side:

EK-CoolStream SE240 radiator

The EK-Quantum Reflection PC-O11D MINI D5 PWM D-RGB is engineered to bring pristine aesthetics to your PC and to offer an all in one solution that includes a pump, a reservoir, with a simple mounting mechanism, and multiple industry standard G1/4″ threaded inlet and outlets. The placement of these inlets and outlets is perfectly aligned with the ports of other EK liquid cooling components like water blocks and radiators in order to minimize the number of bends the user has to make to create a clean looking loop. It is able to support a total of 5 water cooling components.

EK-Quantum Reflection distro plate for Lian Li O11D Mini

Engineered to be mounted on the front window of the case, the EK-Quantum Reflection PC-O11D MINI D5 PWM D-RGB will fit seamlessly within the LIAN LI O11D Mini chassis.

The addressable D-RGB LED strip runs down the entire length of the unit while a black anodized aluminum cover hides the unwanted LED hotspots. The built-in addressable LED strip contains XX digital LEDs and connects to the motherboard’s 5V header. It is also compatible with MSI MYSTIC LIGHT SYNC, ASROCK POLYCHROME SYNC, ASUS AURA SYNC, and GIGABYTE RGB FUSION 2 software for a coordinated lighting effect.

EK RGB All

Reservoir:
– Dimensions with the attached pump (W x D x H): 332x 77.5x 206mm
– Reservoir volume: ~292ml
– D-RGB LED count: 13
– D-RGB cable length: 500mm
– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Pump Motor Technical Specifications:
– Motor: electronically commuted spherical motor
– Rated voltage: 12V DC
– Power consumption: 23W
– Maximum pressure head: 3.9m
– Maximum flow: 1500L/h
– Maximum system temperature: 60°C
– Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminum Oxide, Hard Coal
– Power connector: SATA power and 4-Pin PWM FAN connector

Operational Regime:
– PWM duty cycle: ~ 20-100%
– Default behavior: runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:

EK-Quantum Reflection PC-O11D MINI D5 PWM D-RGB
- 1x Allen key 2.5mm

- 10x EK Quantum Plug - Nickel
- Mounting screws - M4x8 DIN7991

Made in Slovenia - EU!

PLEASE NOTE:

  • The Quantum Reflection distribution plates are designed around Quantum Torque fittings and EK standard radiators to achieve straight tube runs.
  • Compatible only with Lian Li PC-O11D MINI version.
  • The D5 pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
  • The Lian Li PC-O11D Mini case is only for showcase and it's not delivered with the product.
  • The aluminum oxide mentioned in the materials specification for the D5 pump is not exposed to water and is perfectly safe to run in copper/nickel loops.

Additional Info

Threads G1/4
