EK-Quantum Power Kit RX 6800/6900 D-RGB P360 - AMD Edition

Product EAN: 3831109833384

Pre-Order: This product is expected to ship out in mid December, 2020.

Pre-Order $849.99

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made in the EU

Details

Meet the ultimate enthusiast gamer liquid cooling kit. This AMD Edition liquid cooling kit contains custom-made EK parts designed to amplify your AMD experience. The AMD Edition Velocity CPU and Vector GPU block are both included in the kit, together with custom-made fans, custom-assembled Torque fittings, and a custom-made FLT 120 D5 combo unit. We must not forget all the other goodies that make up this kit, like the radiator, angled adapter fittings, matte black ZMT tubing, a bottle of red coolant concentrate, and everything else that ensures an epic loop building experience.

EK_Quantum_Power_Kit_RX_6800_6900_D-RGB_P360_AMD_Edition

If you are a beginner or a PC expert, this Quantum kit will make the loop building experience easier thanks to the extra accessories like the foldable filling bottle, tube cuter, and multi Allen key tools. Additional benefits also come from the included CMS cable organizer kit, four 90-degree Torque angled adapters, and the versatile L-style mounting bracket for alternative mounting options.

You don't have to worry about compatibility issues or being nervous about the right amount of fittings or tube length. Even if this is your first contact with custom liquid cooling, it will be a breeze to assemble!

This kit brings the following components, selected from our wide range of quality products:

EK-Quantum Velocity D-RGB - AMD Ryzen Edition that uses the market-proven Velocity cooling engine which is enhanced for AMD’s chiplet layout. The water block boasts a 6 mm thick aluminum mounting plate, gently kissed by a subtle D-RGB side glow effect surrounding the entire water block top. Low hydraulic flow restriction enables this product to be used with lower pump speeds for added silent operation, while still achieving top performance!

EK-Quantum Vector RX 6800/6900 D-RGB - AMD Radeon Edition is a high-performance full-cover water block designed for the latest generation of AMD Radeon graphics cards. The Special Edition block stands out thanks to the black acetal top with aesthetic side-slopes that mimic the new Radeon RX 6000 series factory cooler. In addition, the top features a screwless, ultra-clean design, with the central Radeon logo backed up by a dense addressable D-RGB LED strip.

EK-CoolStream PE 360 Radiator - it gives this kit its name - offers the best cooling capacity in the 40mm thick radiator class: Double stack copper fins provide massive surface area while the parallel flow cooling chambers reduce hydraulic flow resistance to a minimum. Built for EK-Vardar 120mm high static pressure fans, these radiators are optimized for maximum heat dissipation across the entire fan operational range thus delivering exceptional performance at both low- and high airflow operation.

EK-Vardar EVO 120ER D-RGB - Special Edition Ultra-bright addressable RGB high-static pressure computer cooling fan, designed and built primarily for highest-performance computer liquid cooling systems. EK-Vardar EVO D-RGB is simply the best choice for computer radiator cooling as it provides unmatched performance throughout the entire operating range. These EK-Vardar EVO fans feature a special AMD logo on the fan motor hub.

EK-Quantum Kinetic FLT 120 D5 PWM D-RGB - Special Edition is a high-performance Quantum flat style pump-reservoir combo unit with rich D-RGB lighting. The core of the combo unit is the market-proven Xylem D5 PWM water pump. The backside of the combo unit is machined out of durable black POM acetal, while the front plexi cover is featuring a custom engraving.

EK-Torque STC 10/16 - Satin Titanium + Black - Advanced Compression Fittings are 10/16mm (3/8" - 5/8") soft-tube compression fittings designed for use with flexible soft tubing. With a high-quality finish, the EK-ACF Fittings are an aesthetically appealing and secure option for your cooling loop. The locking ring prevents the flexible tube from being pulled out of the fitting by compressing the tubing wall underneath the ring. The EK-ACF is a secure variant of the tubing fitting connector as the locking ring prevents flexible tube to be pulled out of the fitting. The fittings are custom assembled with an added red aesthetic ring already on them.

EK-Torque Angled 90° - Black - Rotary angled (90°) adapter fitting with G1/4" threads. In the form of a cylinder, it is very sturdy and there are zero movements in the revolvable joint. This Quantum Line adapter is made out of CNC machined brass with high-quality Satin Black finish while the seal is made by quality rubber O-rings. These angled adapters make difficult tube routes a breeze.

EK-CryoFuel Red + Clear Concentrate - EK-CryoFuel is a pure, non-toxic coolant based on the patent-pending chemical formula, which prevents the creation of any sediments in the liquid cooling loop. The 100mL concentrate is to be mixed with distilled water in ratio 1:9 to form 1L of ready-to-use coolant. To make mixing the concentrate with distilled easier, EK recommends the use of a filling bottle, which is included in the package. The kit holds one 100ml clear and one 100ml red concentrate so the user can choose if he wants to go full Team Red, or perhaps wants to enjoy the D-RGB effects.

EK-Tube ZMT Matte Black 10/16mm - Unlike most PVC and PUR tubing this high-quality EK-made EPDM rubber tubing ensures long-lasting operation and does not suffer from a plasticizer leaching effect which can cause a blockage (gunking) in your liquid cooling loop. This 9,5/15,9mm (ID/OD) tubing also allows for a very small bend radius! The kit includes 3 meters of matte black Zero Maintenace Tubing.

EK-Loop Multi Allen Key (6mm, 8mm, 9mm) - A multi-purpose tool that replaces the standard 6mm, 8mm, and 9mm Allen key, while it can also be used to operate acetal plugs (with the line style groove). The key does not only replace all of the crucial Allen key formats used for building a liquid-cooled PC but also helps protect your liquid cooling gear.

EK-Loop Soft Tube Cutter - A simple tool used to make a straight tube cut. Safe and easy to use.

Foldable Filling Bottle - Very convenient for mixing the EK-CryoFuel concentrates with distilled water. The telescopic tube of the filling bottle can reach even the most remote and crammed fill ports.

EK_Quantum_Power_Kit_RX_6800_6900_D-RGB_P360_AMD_Edition_Intext

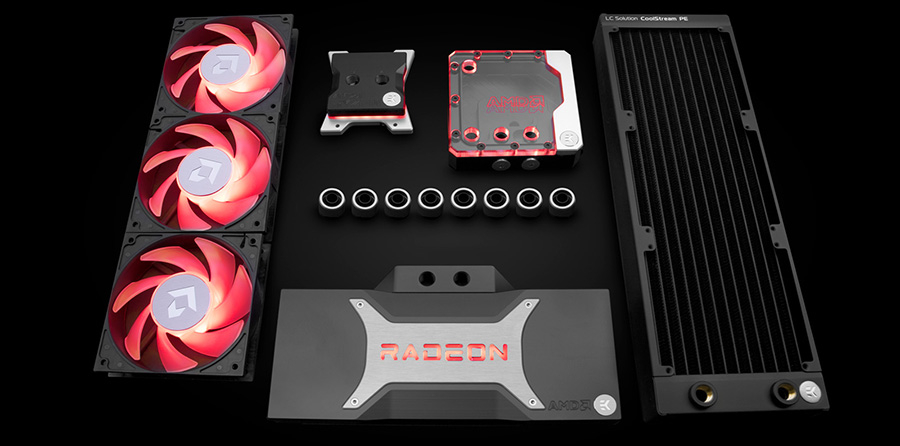

EK-Quantum Power Kit RX 6800/6900 D-RGB P360 - AMD Edition complete list of items:

- AM4 CPU water block: EK-Quantum Velocity D-RGB - AMD Ryzen Edition
- Radeon GPU water block: EK-Quantum Vector RX 6800/6900 D-RGB - AMD Radeon Edition
- Radiator: EK-CoolStream PE 360 (Triple)
- Radiator size: 400 x 130 x 38mm (L x W x H)
- Radiator fan: EK-Vardar EVO 120ER D-RGB (500-2200rpm) (3pcs)
- Water pump-reservoir combo: EK-Quantum Kinetic FLT 120 D5 PWM D-RGB - Special Edition
- Tubing: EK-Tube ZMT Matte Black 10/16mm (3/8'' - 5/8'') (3 meters)
- Compression fittings: EK-Torque STC-10/16 - Satin Titanium + Black (8 pcs)
- Angled adapters: EK-Torque Angled 90° - Black (4 pcs)
- Coolant concentrate: EK-CryoFuel Clear Concentrate (100mL; for 1L of coolant)
- Coolant concentrate: EK-CryoFuel Blood Red Concentrate (100mL; for 1L of coolant)
- Y-cable splitter: EK-Cable Y-Splitter 3-Fan PWM (10cm)
- D-RGB accessories: EK-D-RGB 6-Way Splitter Cable
EK-Loop CMS cable management system (1 set)
- EK-Loop Angled Bracket - 120mm
- ATX bridging plug
- EK-Loop Multi Allen Key
- EK-Loop Soft Tube Cutter
- Foldable Filling Bottle

This water cooling kit is compatible with the following CPU sockets:

- AMD Socket AM4

This water cooling kit is compatible with the following GPUs:

- AMD Radeon RX 6800 Reference
- AMD Radeon RX 6800 XT Reference
- AMD Radeon RX 6900 XT Reference

Made in Slovenia - Europe!

PLEASE NOTE:

  • This kit is not delivered in a gun-case! It comes in a printed cardboard box!
  • List of components may be subject to change in the future according to EKWB's best practices.
  • Distilled water needed to dilute the cooling liquid concentrate is not included!
  • EK recommends at least one 120mm fan and radiator space for cooling one component. For example, if you want to cool CPU and GPU in the same loop, we recommend a minimum of 240mm radiator and two 120mm fans.
  • EKWB recommends the use of fan regulation adapters in case your motherboard does not support fan speed regulation. Such devices are not included in the kit. They can be purchased separately here.
  • Please refer to the motherboard manufacturer manual or D-RGB controller manufacturer manual for LED type compatibility, maximum power load, and maximum allowed LED strip length.
  • The products are compatible with every major motherboard manufacturer and mainstream D-RGB controller via the 3-pin header.

Additional Info

Material / Design / Color option Nickel Acetal
Threads G1/4
Sockets AMD
Chip Manufacturer AMD Radeon
# of Fans 3
