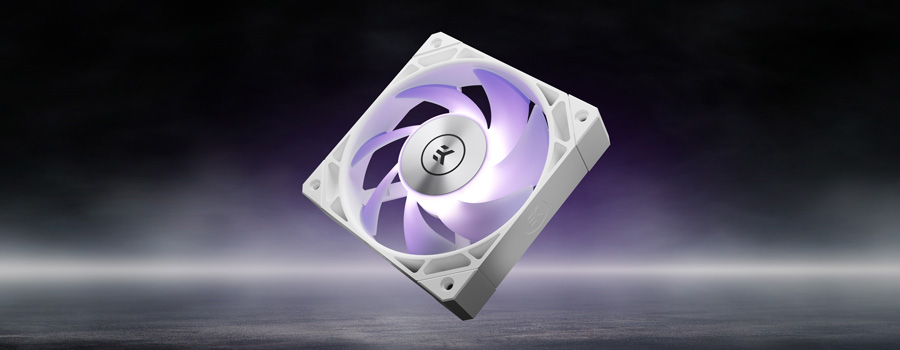

EK-Quantum Phase 120 D-RGB - White (550-2200 rpm)

The EK-Quantum Phase 120 D-RGB – White is EK’s most refined 120mm radiator fan engineered specifically for high-performance liquid-cooling systems. Developed through close collaboration with industry-leading fan engineers, injection-moulding specialists, and EK’s liquid-cooling experts, Phase represents EK’s most advanced fan design to date.

Using extensive CFD simulations, every aspect of the blade and hub geometry was optimized to achieve the ideal balance of static pressure, airflow efficiency, and acoustic performance. Unlike conventional fan development - where injection moulding constraints often compromise the intended geometry - Phase was designed from the outset around the realities of high-precision injection moulding. This ensures the final, mass-produced fan remains true to its engineered design, without introducing imbalance, excess noise, or performance loss.

The result is a fan purpose-built for liquid-cooling radiators, where airflow resistance is high, and performance per decibel truly matters. At the same noise level, Phase delivers higher cooling performance; at the same cooling performance, it operates noticeably quieter. This makes it an ideal choice for premium custom loops, high-density radiators, and acoustically optimized systems.

Performance & Acoustics – Measured Results

In noise-normalized testing*, the EK-Quantum Phase 120 demonstrates clear advantages over EK’s FPT fan:

• At equivalent acoustic output, where the FPT fan operates at 1000 RPM, Phase runs 5.5% faster (1055 RPM) while reducing coolant temperature delta (ΔT = T_water – T_air) by 14.8%, corresponding to a 3.6 ℃ improvement.
• At higher noise levels, with the FPT fan at 1500 RPM, Phase operates at 1600 RPM (+6.6%) and reduces coolant ΔT by 10.2%, delivering a 1.4 ℃ reduction.

These gains are achieved through a geometry optimized for higher static pressure at lower RPM, allowing Phase to maintain strong cooling performance across a wide operating range. When matched for thermal performance, Phase can operate at up to 2.7 dBA lower noise than the FPT fan - resulting in a noticeably quieter system without sacrificing cooling capability.

* All testing was conducted on an EK-Quantum Surface P radiator. Similar performance trends can be expected across other radiator models.

Engineered Reliability

The fan uses a Fluid Dynamic Bearing (FDB) rated for 70,000 hours MTBF, ensuring long-term stability, low mechanical noise, and consistent performance over time. PWM control from 550 to 2200 RPM allows precise tuning for silent operation or maximum cooling, depending on system demands.

Premium Aesthetics & D-RGB Illumination

Beyond performance, EK-Quantum Phase 120 sets a new standard in refinement and visual appeal. It features 9 addressable D-RGB LEDs for smooth, vivid lighting effects compatible with all major motherboard RGB ecosystems via a standard 3-pin 5V D-RGB connection.

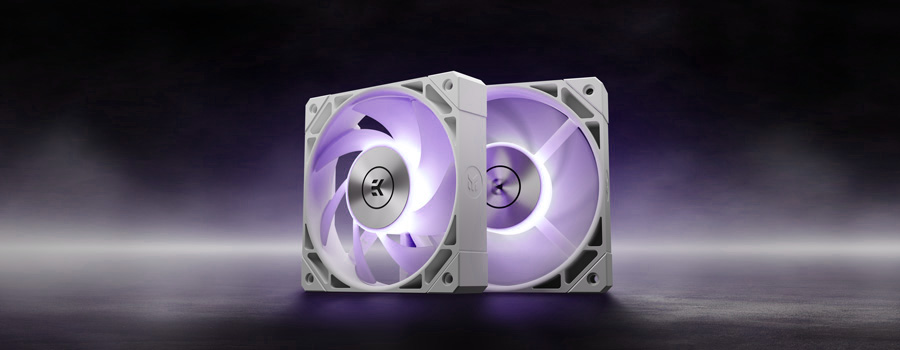

Replaceable rubber corner dampers reduce vibration transfer while allowing subtle visual customization, and a precision aluminum badge on both sides ensures a premium appearance in both push and pull configurations. The clean white finish makes Phase an ideal match for modern, showcase-grade liquid-cooled builds.

The result: lower noise, higher performance, and refined aesthetics - engineered without compromise.

EK-OmniLink

EK-OmniLink – allows daisy chaining of multiple fans, thus reducing cable clutter and greatly easing cable management. The Omni-Link ecosystem of interconnects will be greatly expanded in the near future, allowing additional benefits to users. It uses Micro-fit 8-pin connectors between products.

The EK-OmniLink design resolves the cable clutter issues of unifying the connection of multiple fans onto a single PWM and D-RGB header while still maintaining full flexibility if the user wants to remove a single fan from the chain. Other similar solutions on the market use interlocking mechanisms, which require the removal of the entire fan link if the user needs more room to tighten a fitting on a radiator.

*Images are illustrative only. Shown with EK-Loop FPT fans.

Mechanical and electrical specifications:

• RPM range: 550 – 2200 RPM
• Rated voltage: 12V
• Power draw: 2,68W
• LED power draw: 2.3W
• LED count: 9
• PWM duty cycle: 20-100%
• Shaft bearing: FDB (Fluid Dynamic Bearing)
• Bearing durability: 70.000 hours (MTBF at 25℃)
• Dimensions: 120mm x 120mm x 27mm
• Fan cable length: 100mm
• Fan connector: Micro-fit 8-pin connector
• Extender cable length: 500mm
• Extender connector: 4-Pin PWM Header and 3-Pin Addressable 5V D-RGB header

Performance characteristics:

• Max Air Flow: 72,95 CFM = 123.94 m³/h
• Static Pressure: 3,05 mm H20 = 29,91 Pa
• Noise Level: 33,2 dBA (max. RPM)

Enclosed:

• 1x EK-Quantum Phase 120 D-RGB - White (550-2200 rpm)
• 1x Cable extender (PWM+RGB)
• 4x Self-tapping case screws
