EK-Quantum Magnitude sTRX4 - Copper + Acetal

Product EAN: 3831109825235

In stock

$269.99

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Details

AMD Ryzen Threadripper Shop

EK-Quantum Magnitude sTRX4 - Copper + Acetal is the newest flagship CPU water block tailor-made for AMD® Ryzen™ Threadripper™ processors. The Magnitude sTRX4, which belongs to the EK-Quantum product line, is the most complex Threadripper CPU water block on the market to date. This new lineup has no intention of succeeding or replacing their Velocity sTR4 counterparts, as the Magnitude version is a rather sophisticated alternative optimized specifically for Zen 2 based AMD Threadripper CPUs.

EK-Quantum Magnitude sTRX4 - water block for threadripper

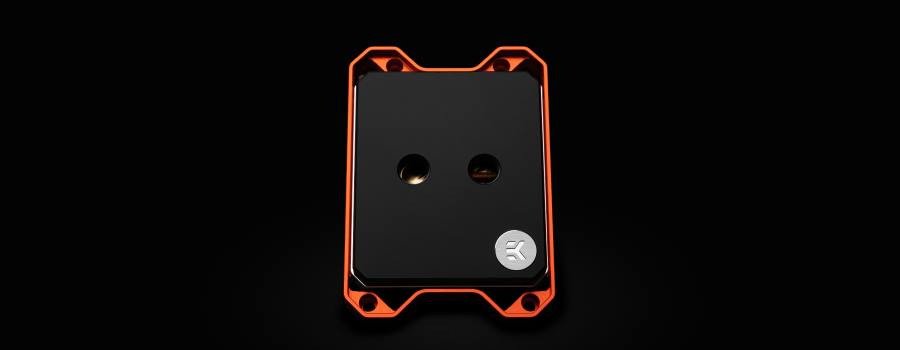

The award-winning, signature design truly sets the Magnitude apart, with every piece being CNC-milled from a solid piece of material. The precisely machined flat coldplate is made of high-grade copper and the top is made of durable black POM Acetal. The three-dimensional red-anodized aluminum mounting frame perfectly blends in with the asymmetrical shape of the Threadripper CPU socket, while making the screws a seamless part of the water block. Strong edges and chamfers root this futuristic design firmly into the EK Quantum line. Magnitude proudly bears the prestigious iF Design Award.

EK-Quantum Magnitude sTRX4 - water block for threadripper

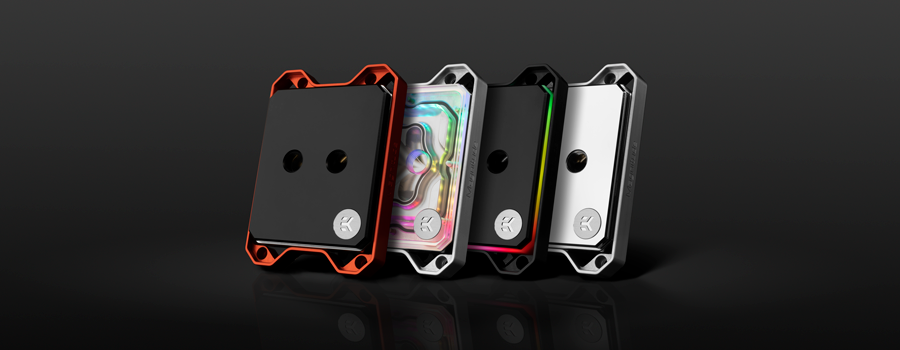

It is possible to rotate the Insert by 180°, thus exchanging the optimal inlet and outlet ports so that the flow direction may be reversed. Because the SP3 sockets are asymmetrical, and to prevent incorrect re-assembly, it is not possible to rotate the top, frame, or coldplate relative to the socket. The accents in a different color are available separately and can easily be replaced.

EK-Quantum Magnitude sTRX4 - water block for threadripper

The water block implements the evolution of the patent-pending technology called TDC, or Targeted Die Cooling. This technology was first developed for the 2nd generation EK Threadripper CPU water blocks. The Magnitude now utilizes it on a more sophisticated level. The cooling engine is enlarged significantly. The coldplate is now completely flat with the 4 patches that ensure optimal contact with the IHS over CCDs creating ideal conditions for best thermal transfer. Two 0.5mm thick jet plates make sure that coolant flow is focused and turbulent over the CCDs (Core Complex Dies).

This product can be upgraded with EK-Quantum Magnitude Accent - sTRX4 D-RGB for a sophisticated addressable LED lighting illumination.

CPU socket compatibility:
- AMD Socket sTRX4 (Socker SP3r3)
- AMD Socket TR4 (Socket SP3r2)
- AMD Socket SP3

AMD Ryzen Threadripper

Enclosed:
- EK-Quantum Magnitude sTRX4 D-RGB - Copper + Acetal water block
- TIM / thermal grease: EK-TIM Ectotherm (1g)

Made in Slovenia - EU!

PLEASE NOTE:

  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your water block! EK is offering a selection of such products in the coolants section.
  • For best results, please refer to the installation manual regarding the thermal compound application.
  • A backplate is not included! The water block is mounted directly onto the  AMD SP3 socket mounting holes.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info

Material / Design / Color option Copper Acetal
Threads G1/4
Sockets AMD
Chip Manufacturer AMD Radeon
