EK-Quantum Delta² TEC D-RGB - Full Nickel is the latest generation of cryo-cooling water block that is made in collaboration with Intel®. It is a unique cooling solution for enthusiasts who are seeking consistent system performance and ultimate overclocking on unlocked 12th-generation Core™ Alder Lake and 13th Gen Intel® Core™ Raptor Lake desktop processors.
List of currently supported CPUs:
- Intel® Core™ i5-12600K Processor (20M Cache, up to 4.90 GHz)
- Intel® Core™ i5-12600KF Processor (20M Cache, up to 4.90 GHz)
- Intel® Core™ i7-12700K Processor (25M Cache, up to 5.00 GHz)
- Intel® Core™ i7-12700KF Processor (25M Cache, up to 5.00 GHz)
- Intel® Core™ i9-12900K Processor (30M Cache, up to 5.20 GHz)
- Intel® Core™ i9-12900KF Processor (30M Cache, up to 5.20 GHz)
- Intel® Core™ i9-12900KS Processor (30M Cache, up to 5.50 GHz)
- Intel® Core™ i5-13600K Processor (24M Cache, up to 5.10 GHz)
- Intel® Core™ i5-13600KF Processor (24M Cache, up to 5.10 GHz)
- Intel® Core™ i7-13700K Processor (30M Cache, up to 5.40 GHz)
- Intel® Core™ i7-13700KF Processor (30M Cache, up to 5.40 GHz)
- Intel® Core™ i9-13900K Processor (36M Cache, up to 5.80 GHz)
- Intel® Core™ i9-13900KF Processor (36M Cache, up to 5.80 GHz)
- Intel® Core™ i9-13900KS Processor (36M Cache, up to 6.00 GHz)
- Intel® Core™ i5-14600K Processor (24M Cache, up to 5.30 GHz)
- Intel® Core™ i5-14600KF Processor (24M Cache, up to 5.30 GHz)
- Intel® Core™ i7-14700K Processor (33M Cache, up to 5.60 GHz)
- Intel® Core™ i7-14700KF Processor (33M Cache, up to 5.60 GHz)
- Intel® Core™ i9-14900K Processor (36M Cache, up to 6.00 GHz)
- Intel® Core™ i9-14900KF Processor (36M Cache, up to 6.00 GHz)
- Intel® Core™ i9-14900KS Processor (36M Cache, up to 6.20 GHz)
Improvements in Delta² TEC Technology

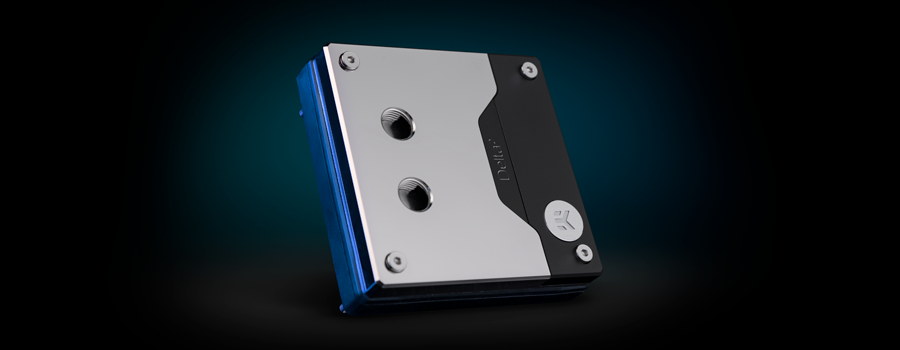

EK-Quantum Delta² TEC D-RGB - Full Nickel brings numerous improvements to the design, 4 cutting-edge Aluminum Nitride (AlN) Ceramic TEC plates soldered to the coldplate. These AlN TEC plates offer significantly higher power efficiency over the previous Aluminum Oxide variants. The main water block follows the EK-Quantum design language with EK-Matrix7 compatibility. Insulation is also improved, ensuring an even higher level of safety. The water block uses built-in mounting screws already equipped with retention springs. It also has two additional thermal sensors - one on the hot and one on the cold side of the Peltier element - for precise monitoring and control of the TEC plates.

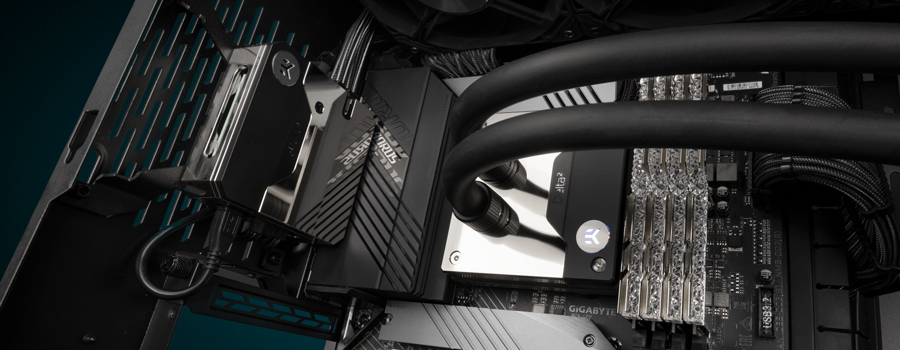

The controller unit also boasts EK-Quantum design language to fit perfectly with the rest of the loop. It is now independent of the main block and comes with an EK 120mm fan-mounting bracket, so you can position it inside your case so as to not impede the visual appearance of the main water block and receive additional cooling. The control unit can now connect and control the pump and fans of the loop used to cool the TEC plate, making it even more user-friendly.
Features
EK-Quantum Delta² TEC D-RGB - Full Nickel CPU water block has four built-in Peltier/Thermoelectric cooler plates. It is powered by EK Delta² TEC Integrated Intel (R) Cryo Cooling Technology, a unique combination of hardware, software, and firmware designed to help unleash elite performance for gamers and overclockers. The water block itself features a robust all-metal design for extreme conditions with a rubber insulation shroud that isolates the water block cold plate from the environment, impeding condensation. A sensor in the controller unit also measures humidity to prevent reaching the dew point.
The cold plate is CNC-machined out of high-purity electrolytic copper, which enables high thermal performance. A large surface area, covered with cooling fins, transfers the heat away from the quad, purpose-made TEC plates.
Built upon a purpose-designed large surface flow-through cooling engine together with EK Delta² TEC Integrated Intel (R) Cryo Cooling Technology, bridging aesthetic uniformity and near-silent operations with technological advancements in thermal solutions, the EK-Quantum Delta² TEC D-RGB - Full Nickel is an exceptional application of cooling the CPU with sub-ambient temperatures by utilizing Thermoelectric Cooler (TEC) plates while continuously monitoring and adjusting temperatures dynamically, achieving an ideal operating environment for sustained gaming performance.
How does this EK-Quantum Delta² TEC water block work?
Liquid coolers are unable to reach temperatures below ambient (room) temperature, but the EK-Quantum Delta² TEC D-RGB - Full Nickel is cutting-edge, as it actively cools the CPU to sub-ambient temperatures while extracting and dissipating the heat generated from the four TEC plates through the traditional liquid cooling loop. While the TEC plates cool the CPU, the TEC plates are cooled entirely by your custom liquid loop.
Doesn't sub-ambient cooling cause condensation?
The EK-Quantum Delta² TEC series products utilize an innovative two-pronged approach to mitigate thermal condensation, a byproduct that has plagued previous attempts of sub-ambient cooling. The cooler features a new integrated rubber insulation shroud that isolates all exposed cold surfaces from the environmental conditions inside the PC, while the EK Delta² TEC Integrated Intel (R) Cryo Cooling Technology continuously monitors and adapts to those conditions to minimize condensation risk generated by the cooling process.
Software
The EK Delta² TEC Integrated Intel (R) Cryo Cooling Technology software download link can be found HERE.
Warning:
|
Technical Specifications:
- Power connector: 8-pin PCI-E
- Connection with PC: internal USB 2.0
- Maximum power draw (unregulated mode): 210W
CPU socket compatibility:
- Intel LGA1700
Enclosed:
- EK-Quantum Delta² TEC D-RGB - Full Nickel with rubber hosing
- EK-Quantum Delta² TEC D-RGB - Full Nickel controller unit
- Mounting mechanism (screws, mounting plate, necessary washers, etc)
- Uni bracket 120mm for mounting PCB case on a 120mm fan mounting position inside the case
- EK-Cable 5-Pin Motherboard (F) to Micro-USB (M) 50cm (1pcs)
Made in Slovenia - Europe!
PLEASE NOTE:
- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated water block! EK is offering a selection of such products in the coolant section.
- This product should NOT be installed with any aluminum EK Fluid Gaming parts!
- The latest BIOS update is required to be able to run the product successfully.
- The water block is compatible only with LGA 1700 socket-based motherboards.
- Check the compatibility list before purchasing the product.
- When detaching the thermal sensor cable, users must not pull by the cable but hold the connector.
Additional Info
Material / Design / Color option | Full Nickel |
---|---|
Threads | G1/4 |
Sockets | Intel |
