The EK-Quantum Convection M.2 NVMe is a passive aluminum heatsink for M.2 NVMe solid state drives. Although it’s not a water cooling component, it is a much-needed aesthetic and cooling solution for many PC owners. It’s no secret that M.2 NVMe SSDs can easily overheat and be subdued to thermal throttling, thus losing performance. However, this latest heatsink will completely prevent thermal throttling in cases with sufficient airflow or otherwise significantly prolong the time before thermal throttling of the SSD occurs.

EK-Quantum Convection M.2 SSD Heatsink

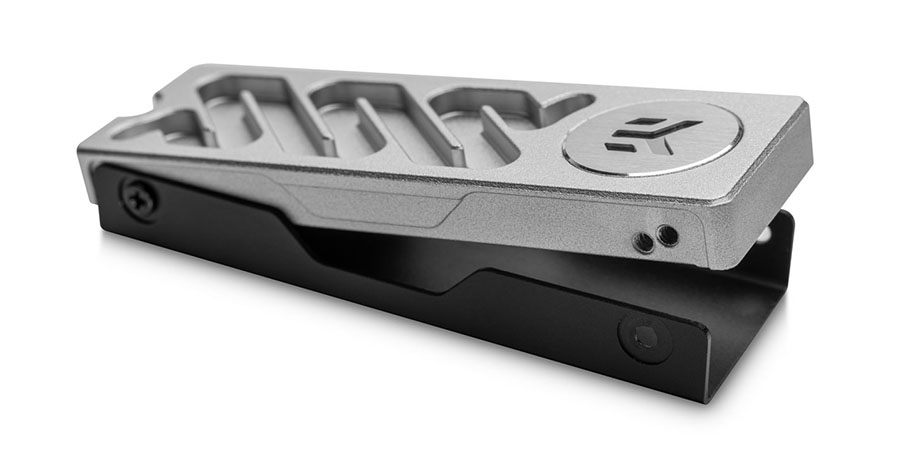

It is simple to install, low profile, easily reusable, and aesthetically non-intrusive. The heatsink uses a clever design where flipping the backplate will realign the mounting holes on the backplate to another set of screw holes on the heatsink. This will move the backplate away from the main body of the heatsink, allowing for more space and installation on double-sided SSDs.

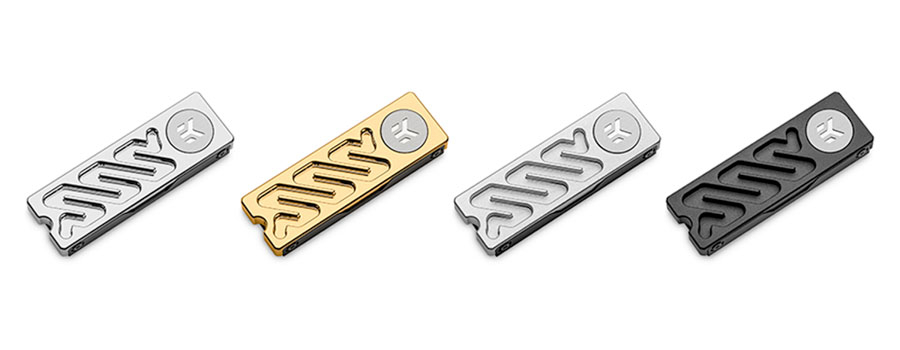

EK-Quantum Convection All Finishes

The heatsink is CNC-machined out of high-grade aluminum and has a high-quality nickel-plated finish. The backplate is also made of aluminum with a black anodized finish. Its unique Quantum-like design makes this heatsink the perfect addition to your build. The simple, understated look makes it sleek and non-intrusive, while the compact design makes it highly compatible and does not interfere with other components.


The EK-Quantum Convection M.2 NVMe is compatible with all single- and double-sided 2280 M.2 NVMe SSDs (22mm wide, 80mm long). Because the heatsink consists of a front piece and backplate, the compatibility is limited to M.2 (NGFF) connectors with 4.2mm height (as seen in the examples). Also, capacities of up to 4TB were tested and found compatible.

EK-Quantum Convection M.2 SSD Heatsink Double Sided

What Is a Single and What Is a Double-Sided M.2 SSD?

Single-sided M.2 NVMe SSDs only have chips on one side of the PCB. This means all the storage and controller electronics are placed on one side of the drive, hence the name, single-sided. These drives are smaller and generate less heat. Double-sided M.2 NMVe drives have chips on both sides of the PCB. These drives usually offer more storage capacity by adding flash memory storage chips on both sides of the drive.

Technical Details:

- Aluminum front cover
- Aluminum backplate


- EK-Quantum Convection M.2 NVMe Heatsink - Nickel
- EK-Quantum Convection M.2 NVMe Backplate - Black
- 4x Mounting Screws M2x4mm
- 2x Thermal pad 0.5mm
- 2x Thermal pad 1mm

Made in Slovenia - EU

Additional Info

Material / Design / Color option Nickel
