EK-Pro Quick Disconnect Manifold 2CPU 4GPU kit

Product EAN: 3831109899748

Only 3 pieces left

$1,252.99
Estimated Delivery Date: 29 September 2022
?
  • DHL Economy tracking: 30 September 2022
  • DHL Express with tracking: 29 September 2022
  • UPS with tracking: 29 September 2022

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Frequently Bought Together

+
4x

+
4x

+
2x

=
Full Price
$2,682.27

Details

The EK-Pro manifold and CPC quick disconnect coupling (QDC) kit is the most efficient way to make your professional liquid cooling loop easily serviceable and upgradable with minimal downtime. The kit consists of all necessary components to connect up to two CPU and four GPU water blocks to the rest of your liquid cooling loop in a parallel or semi-parallel setup.

The EK-Pro manifold system, combined with QDCs, enables users to easily add or remove water blocks to the cooling loop without draining the entire system. This prevents downtime for workstations and other professionally used computer setups.

It features a full acetal body, stainless steel end caps, and nickel-plated brass plugs. Pre-assembled, out of the box, it is set up to be used in a semi-parallel setup. Please follow the user manual for detailed information on connectivity options. The kit contains a universal manifold mounting system that can be used in various scenarios. The steel mounting plate is equipped with 120mm and 140mm fan mounting patterns found in almost all computer and workstation cases.

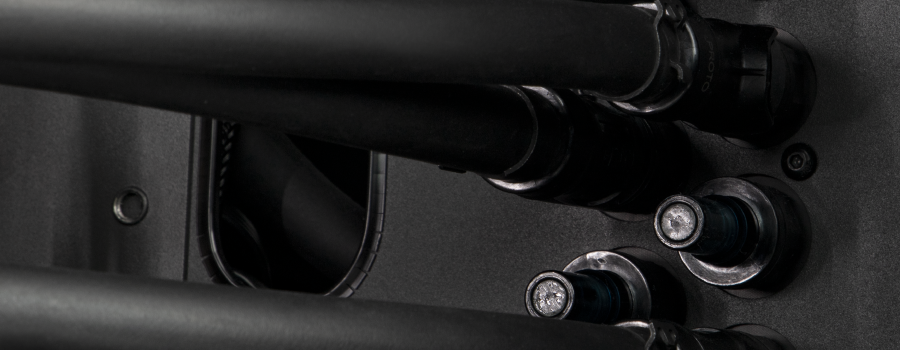

CPC quick disconnect coupling male

CPC’s dripless quick disconnect couplings (QDCs) are made of ultra-durable PPSU and are compatible with most industry standard coolants and cooling loop materials. They support a wide range of operating temperatures and, thanks to the quality lubrication of the valve mechanisms and stainless-steel springs, will provide smooth operation for up to 10,000 cycles. EPDM’s O-rings and seals ensure a long service life free of leaks.

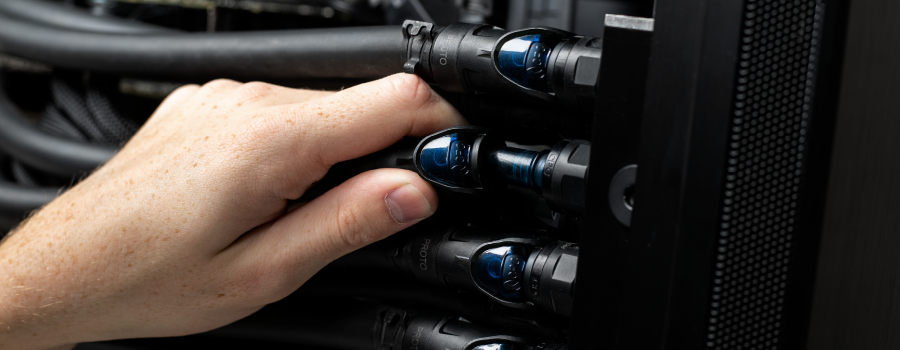

CPC quick disconnect coupling female with G1/4 thread

The patented valve technology prevents any coolant from escaping during the coupling and decoupling process. The high flow coefficient results in a low pressure drop, enabling prolific use of the CPC QDCs without fears of any significant flow impedance.

EK-Pro Quick Disconnect Manifold Kit 2CPU 4GPU

The patented valve technology prevents any coolant from escaping during the coupling and decoupling process. The high flow coefficient results in a low pressure drop, enabling prolific use of the CPC QDCs without fears of any significant flow impedance.

Technical specifications:

EK-Pro Manifold 2CPU 4GPU - Acetal

- Size (HxWxD): 204 x 54 x 36mm (without the mounting system)
- Materials: POM (Acetal) and Stainless-Steel

CPC Quick Disconnect Couplings

- Operating temperature: -17°C to 85°C
- Main component and latch material: PPSU
- Valve and external spring material: Stainless Steel
- Seals: EPDM
- Barb OD: 9,5mm
- Thread: G1/4”
- Flow coefficient: 1.37 (~2.11PSI pressure drop at 2GPM flow rate)

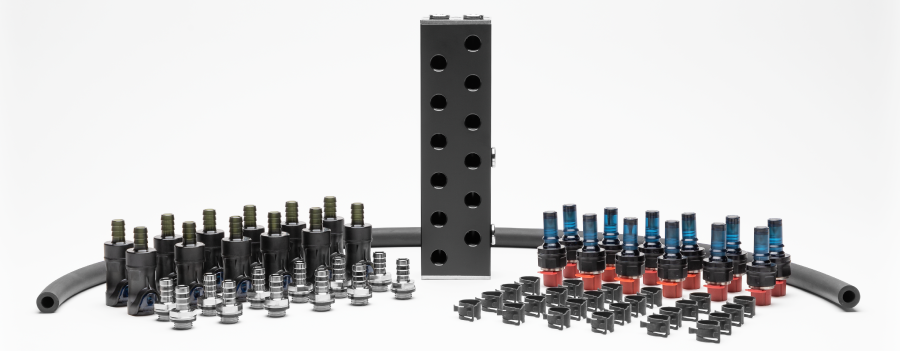

Enclosed:
- EK-Pro Manifold unit 2CPU 4GPU – Acetal (1pcs)
- EK-Pro Manifold mounting hardware
- CCPC Quick Disconnect Coupling – Male – G1/4” Thread (12pcs)
- CPC Quick Disconnect Coupling – Female – Barb 10mm OD (12pcs)
- EK-Pro Fitting – Barb 10mm OD – G1/4” Thread (12pcs)
- Tube Clamps – Black (24pcs)
- EK-Tube ZMT Matte Black 15,9/9,5mm (6m)

Made in Slovenia - EU!

PLEASE NOTE:

  • The manifold does not replace the role of the reservoir. The use of a standalone reservoir is still recommended.
  • Please note that only seven G1/4 plugs are supplied with the manifold unit. If any of the In and Out ports are planned to be unused, additional plugs are needed for operation. Spare G1/4 plugs are sold separately.
  • Do not overtighten the CPC QDCs as it may result in damaged or stripped threads, rendering them nonfunctional.

Additional Info

Material / Design / Color option Acetal
Threads G1/4
