Details

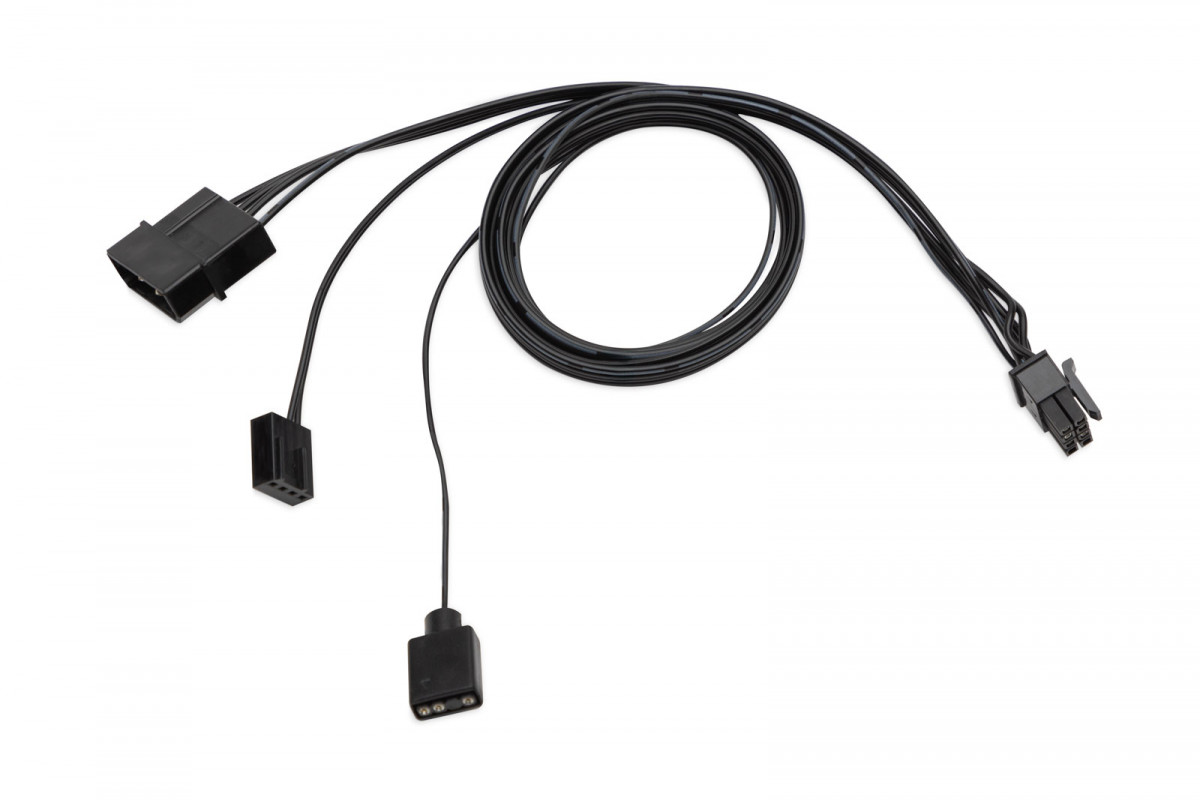

EK-Loop OmniLink Molex Power cable is the starting point of the OmniLink cable harness with the necessary Molex power, D-RGB, and 4-Pin fan connectors. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.

This cable can be installed without any modifications/re-pinning with any PSU while still providing the maximum 8.5A available on 5V and 12V by utilizing the Molex connector.

Content:

- EK-Loop OmniLink Molex Power cable

Technical Specifications:

- Molex Micro-fit 3.0 8-pin Female connector to:

  • 1x Molex Connector 4pin (Power)
  • 1x 4-Pin PWM 1 Source Female Fan Connector (TACHO, PWM)
  • 1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground)

- Cable length: 500±10mm

- Color: Black

- Power Wire gauge: AWG20

- Signal Wire gauge: AWG22

- Molex Micro-fit Connector current rating: 8.5A

- Power Cable current rating: 8A

- Signal Cable current rating: 6A

EK-Loop OmniLink Molex Power cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.





Designed in Slovenia, made in China

EKWB d.o.o | Slovenia – EU | www.ekwb.com

PLEASE NOTE:

  • If EK-Loop FPT fans are placed at the start of the OmniLink series, it limits the current to 4.5A due to the thinner wire gauge of the cable.

Additional Info

Material / Design / Color option Black
