Details

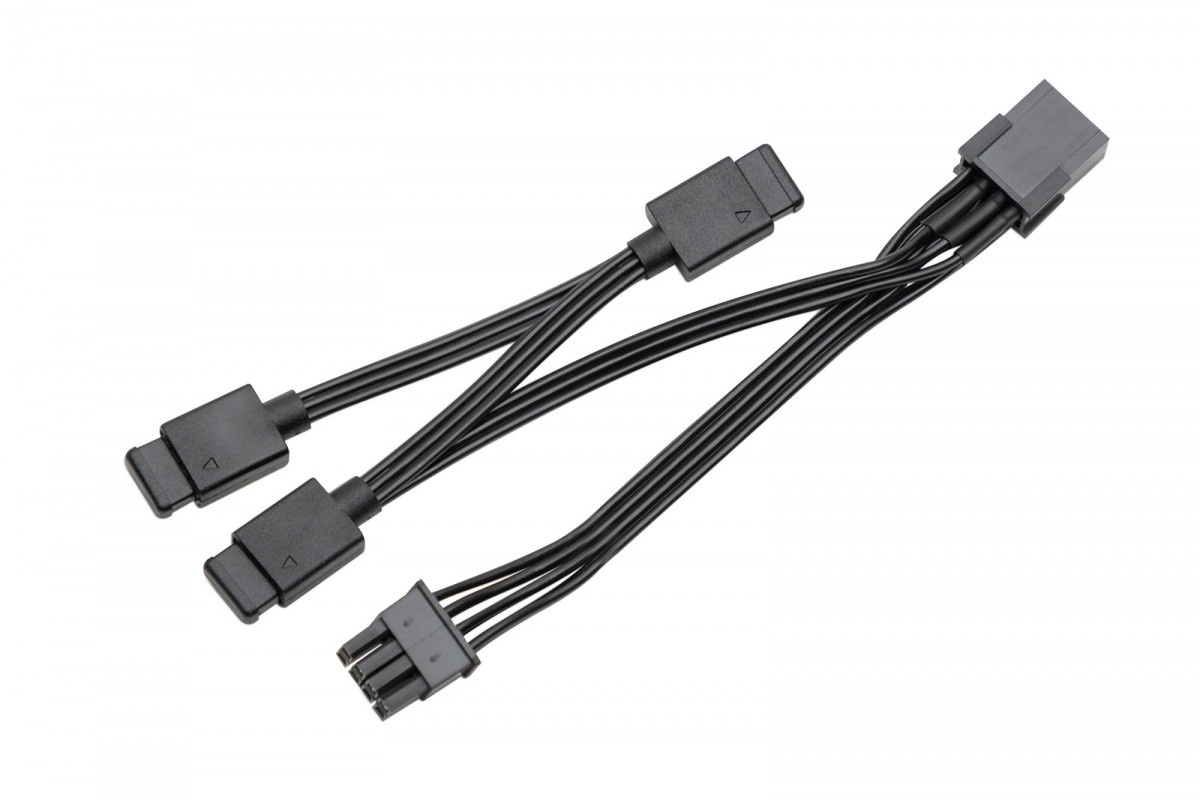

The EK-Loop OmniLink D-RGB 3-Way Signal Splitter cable allows the user to connect and power up to three D-RGB LED devices and continue the OmniLink cable harness. The OmniLink cable allows for easy transmission and distribution of 12V and 5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.
Suitable for adding EK D-RGB water blocks, reservoirs, distribution plates, and other D-RGB LED products to an OmniLink cable harness.
Content:
- EK-Loop OmniLink D-RGB 3-Way Signal Splitter cable
Technical Specifications:
- Molex Micro-fit 3.0 8-pin Male connector to:
- 1x Molex Micro-fit 3.0 8-pin Female connector
- 3x 3-Pin D-RGB LED Female Connector (+5V, Data, Blocked, Ground)
- Cable length: 100±10mm
- Color: Black
- Power Wire gauge: AWG20
- Signal Wire gauge: AWG22
- Molex Micro-fit Connector current rating: 8.5A
- Power Cable current rating: 8A
- Signal Cable current rating: 6A
EK-Loop OmniLink D-RGB 3-Way Signal Splitter cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.
Designed in Slovenia, made in China
EKWB d.o.o | Slovenia – EU | www.ekwb.com
PLEASE NOTE:
- If EK-Loop FPT fans are placed at the start of the OmniLink series, it limits the current to 4.5A due to the thinner wire gauge of the cable.
Additional Info
Material / Design / Color option | Black |
---|
