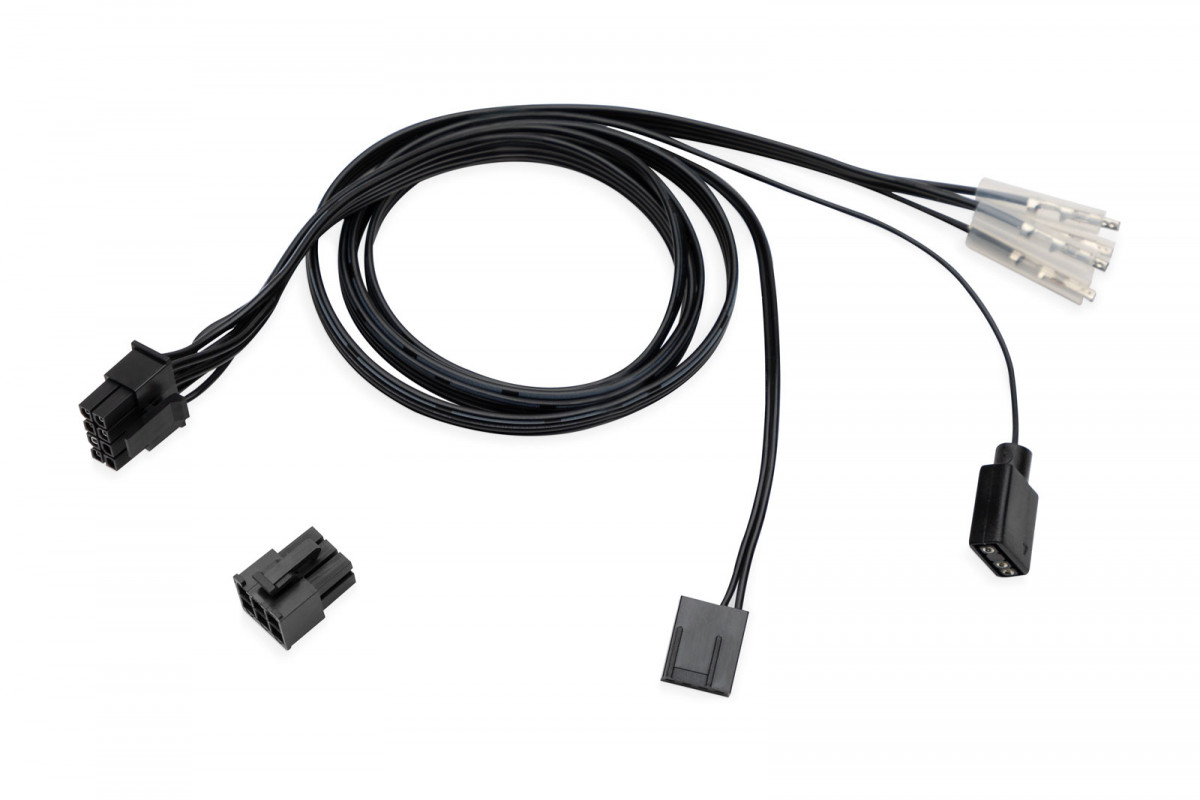

EK-Loop OmniLink 6-Pin Power

EK-Loop OmniLink 6-Pin Power cable is the starting point of the OmniLink cable harness with the necessary 6-Pin power, D-RGB and 4-Pin fan connectors. The OmniLink cable allows for easy transmission and distribution of +12V and +5V Power, PWM, TACHO, and D-RGB signals. The cable features a stylish black ribbon cable for easy build integration and cable management.

This cable will not draw any power from the motherboard/controller headers since +5V and +12V are connected directly to the PSU. Thus raising the maximum current available to 8.5A for D-RGB and 8.5A for fans/pumps.

Content:

- EK-Loop OmniLink 6-Pin Power cable

- 6-Pin Power Connector

Technical Specifications:

- Molex Micro-fit 3.0 8-pin Female connector to:

• 1x 6-Pin Power Connector (Pinout PSU Dependent)
• 1x 4-Pin PWM 1 Source Female Fan Connector (TACHO, PWM)
• 1x 3-Pin D-RGB LED Source Female Connector (5V, Data, Blocked, Ground)

- Cable length: 500±10mm

- Color: Black

- Power Wire gauge: AWG20

- Signal Wire gauge: AWG22

- Molex Micro-fit Connector current rating: 8.5A

- Power Cable current rating: 8A

- Signal Cable current rating: 6A

EK-Loop OmniLink 6-Pin Power cable is compatible with all EK OmniLink products, standard 4-pin PWM fan/pump motherboard headers, and standard 5V D-RGB (ARGB) connectors used by most major motherboard manufacturers.

The cable 6-pin Power connector must be assembled manually following the desired PSU pinout diagram, as it connects directly to the modular PSU Peripheral/SATA power output.

Designed in Slovenia, made in China
