EK-Loop Connect - Temperature Plug Sensor

Product EAN: 3831109822692

In stock

Estimated Delivery Date: 29 September 2022
  • DHL Economy tracking: 30 September 2022
  • DHL Express with tracking: 29 September 2022
  • UPS with tracking: 29 September 2022

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited
International Warranty

Fast & Free
Technical Support

Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Designed in the EU

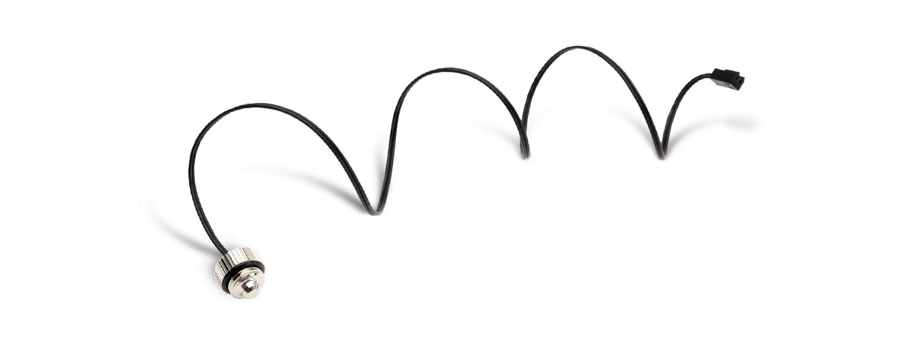

EK-Loop Connect - Temperature Plug Sensor is an NTC (negative temperature coefficient) coolant temperature sensor. It allows users to get a precise coolant temperature measurement and to fine-tune the radiator fan speed for an optimal balance between acoustics and performance.

The coolant temperature data can also be used to set up an emergency shutdown procedure if the temperature gets too high, preventing overheating of the system and possible malfunctions.

EK level sensor

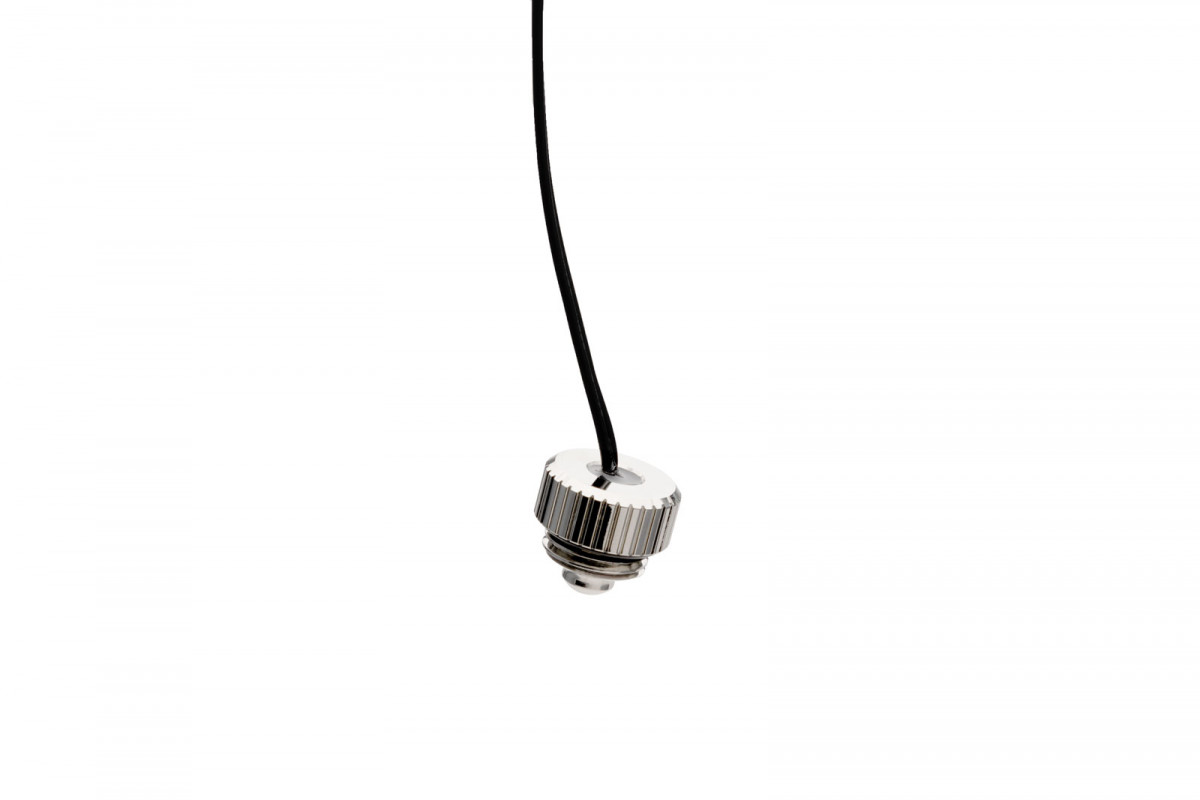

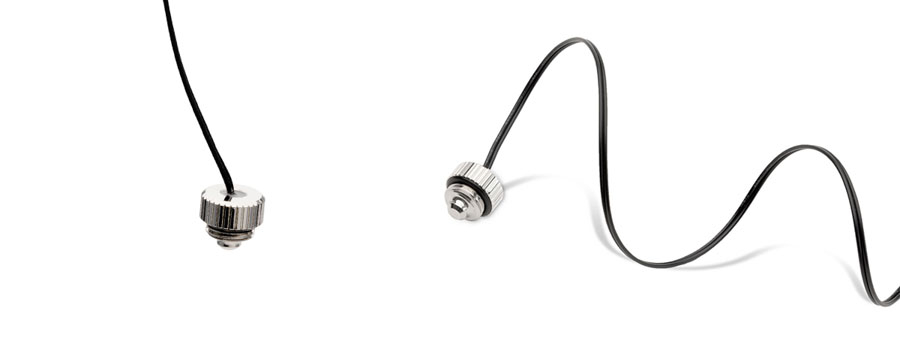

The body of the temperature sensor plug is made of CNC machined brass with a high-quality Nickel finish, while the seal is made with a quality EPDM rubber O-ring. The G1/4 thread and low installment height allow for easy installation in any unused port in the custom liquid cooling loop. It can be connected to the EK-Loop Connect control hub or a motherboard temperature sensor connector.

EK level sensor

Technical Specifications:

- Finish: Nickel
- The outer diameter: 16.5mm
- Installed height: 8mm
- Thread: G1/4”, 4.5mm male thread length
- O-ring material: EPDM 50
- Temperature probe type: NTC, 10KΩ at 25°C
- Temperature sensing range: 0°C to 90°C
- Connector: 2-pin
- Cable length: 500mm

ROHS compliant!

Designed and engineered by EK Water Blocks in Slovenia - Europe

Made in China


  • The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage of the nickel platting. EK offers a selection of such products in the coolants section.
  • Avoid using the EK-Loop Connect - Temperature Plug Sensor on ports that are not in contact with the coolant from the custom liquid cooling loop, as this will give inaccurate measurements.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info

Material / Design / Color option Nickel
Threads G1/4
