Details

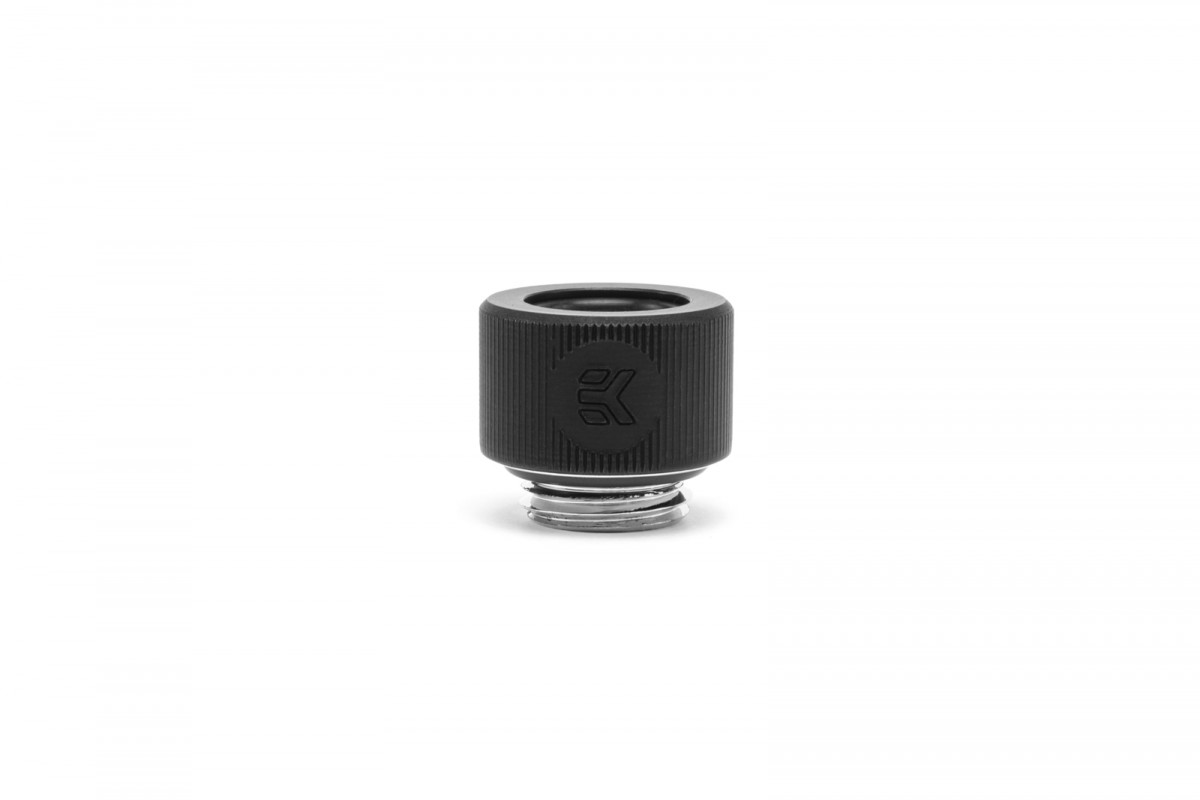

EK-HDC Fitting is a solid-tube compression fitting, designed for use with solid tubing such as Acrylic, Copper, Stainless Steel or any other type of compatible hard tube.
EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.
The barb is made of black nickel-plated CNC machined brass while the ring is made of black-chrome plated CNC machined brass and feature quality O-rings. These fittings are fully compatible with EK-CSQ series (45°/90°) angled adapters.
Best practice is to install these fittings using Allen Key 9mm (not included, available for separate purchase).
Technical data:
- thread: G1/4" BSP; 4.5mm male thread lenght
- supported tube: 12mm (OD)
- outer diameter of a fitting: 19mm
- installed height: 12mm
- compatible tubing: solid Acrylic-, Copper-, Brass- or Stainless Steel tube
ROHS Compliant!
Made in Slovenia - Europe!
PLEASE NOTE:
- Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
- Do not use excessive force when inserting solid tube!
- Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
- It is mandatory to chamfer the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
Additional Info
| Threads | G1/4 |
|---|
