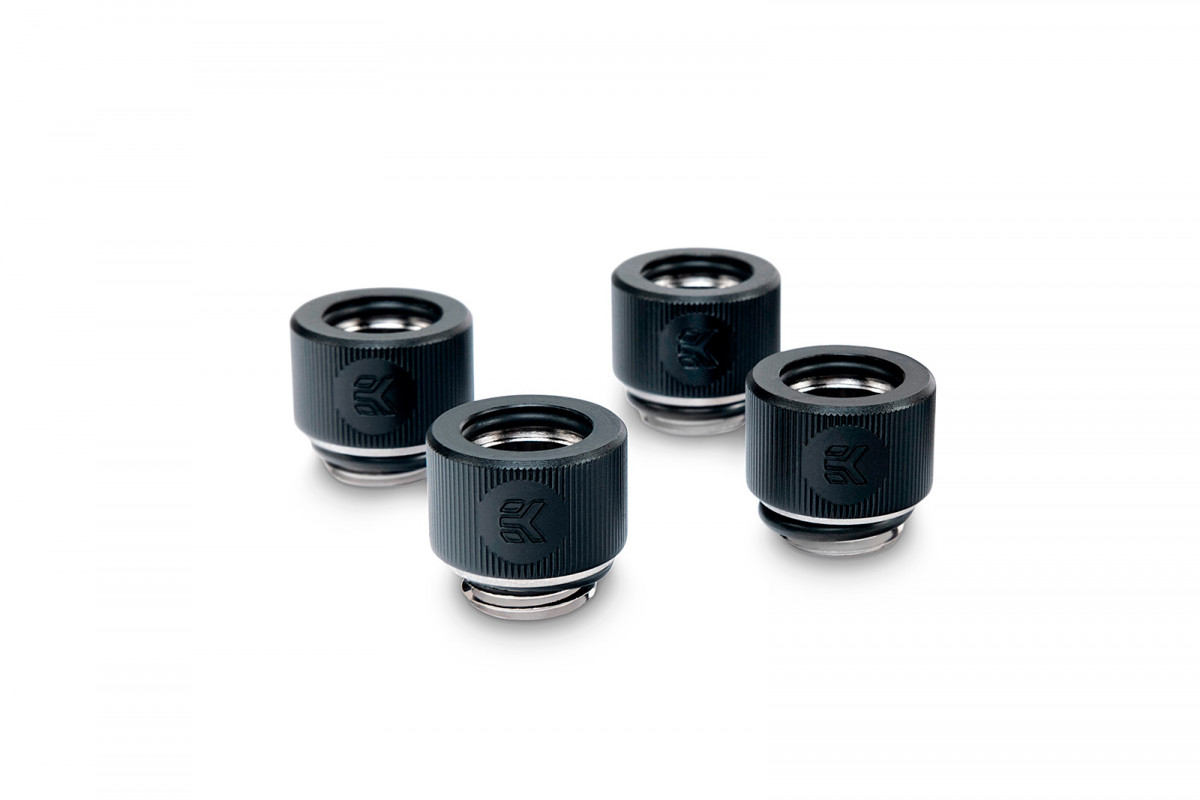

-10 % EK-HDC Fitting 12mm - Black (4-pack)

EK-HDC Fitting 12mm - Black (4-pack)

Product EAN: 3830046992550
End of life

Financing Available

Split the purchase amount of 500 EUR/AUD/USD or more in up to 3 interest-free monthly payments with Splitit.

2-Year Limited International Warranty

Fast & Free
Technical Support

DHL & UPS
Fast Delivery

PayPal & Credit Card
Payments Available

Paypal Buyer Protection

Made in the
EU

Details

The 4-pack EK-HDC Fitting is a hard tube compression fitting pack, they are designed for use with solid tubing such as Acrylic, PETG, Copper, Stainless Steel, Glass, Carbon Fiber or any other type of compatible hard tube.

EK-HDC Fitting is a more secure variant of the EK-HD Adapter fitting as it prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring.

The barb is made of nickel-plated CNC machined brass while the ring is made of black-chrome plated CNC machined brass and feature quality O-rings. These fittings are fully compatible with EK-AF series (45°/90°) angled adapters.

Best practice is to install these fittings using Allen Key 9mm (not included, available for separate purchase).

Technical data:
- thread: G1/4" BSP; 4.5mm male thread length
- supported tube: 12mm (OD)
- outer diameter of a fitting: 18.8mm
- installed height: 12mm
- compatible tubing: solid Acrylic, Copper, Brass, Stainless Steel, Glass, Carbon Fiber

ROHS Compliant!

PLEASE NOTE:

  • Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
  • Do not use excessive force when inserting solid tube!
  • Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
  • It is mandatory to chamfer the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!
