EK-FC7950 - EN (Nickel)

EAN: 3831109856253

EK-FC7950 is a high flow, high performance full-cover water block for AMD reference design Radeon HD 7950 graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

"Assuming you already have a loop and are currently shopping for a water block for your reference Radeon HD 7950, EK delivered a terrific solution, so much so that I can't hold back from giving them the Editor's Choice Award, even before I see other submissions." - tweaktown.com (May 28th 2012)

End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

Details

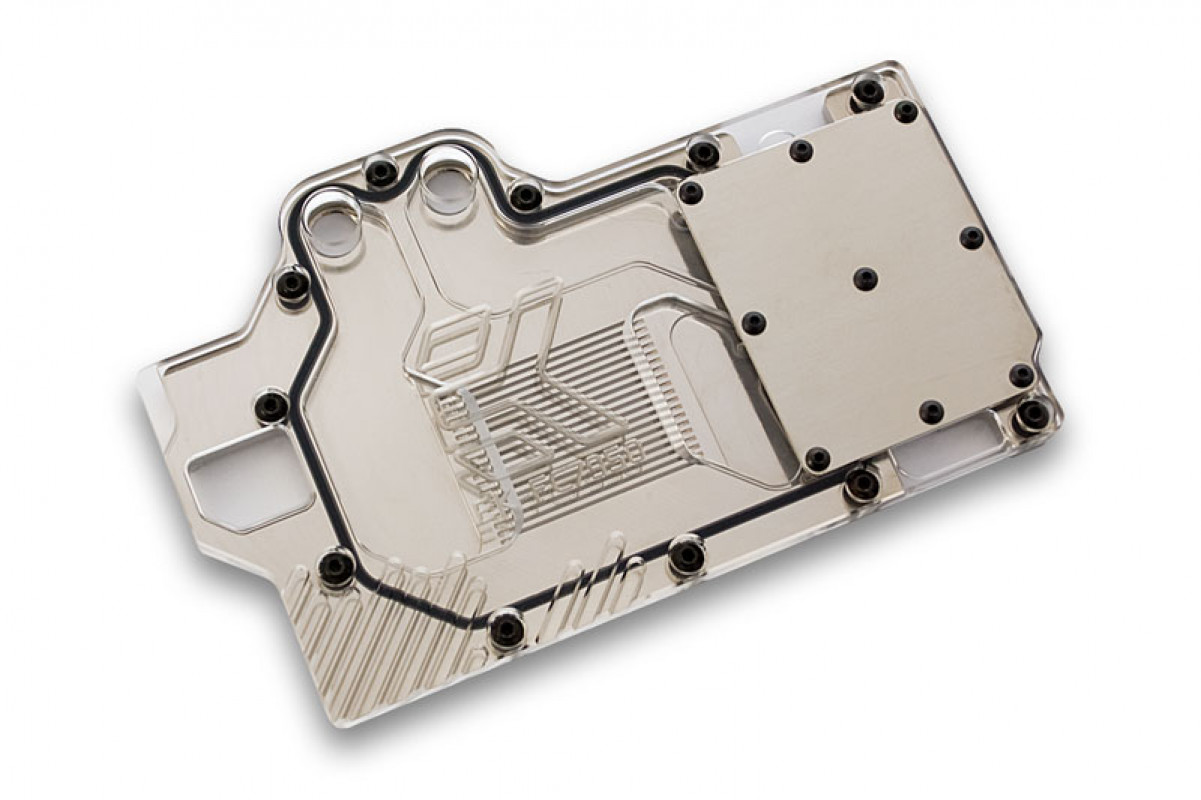

EK-FC7950 is a high performance full-cover water block for AMD reference design Radeon HD 7950 graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC7950 water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

Base is made of electroless nickel (EN) plated electrolytic copper while the top is made of quality cast acrylic material. The sealing is performed by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC7950 Backplate - Black) which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.

EKWB also offers a single-slot I/O bracket which frees adjacent PCI/PCIe expansion slot. The bracket is available as an optional add-on and can be purchased through EKWB webshop.

G1/4" threaded fittings can be used on both side of the water block (on copper and plastic) and 2 plugs (EK-Plug G1/4) are enclosed!

Up to four EK-FC7950 series water block can be interconnected with EK-FC Bridge & Link system. The correct connection link for this water block is EK-FC Link R48x0/58x0. This water block aligns with EK-FC7970 thus ensuring the interconnectivity via EK-FC Bridge & Link system.

Enclosed:
- EK-FC7950 series water block
- mounting mechanism with screw-in brass standoffs
- thermal pads
- thermal grease

Made in Slovenia - Europe!

PLEASE NOTE:
- Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
Chip Manufacturer AMD Radeon
