EK-FC770 GTX GW - Nickel (Original CSQ)

EAN: 3831109868362

EK-FC770 GTX GW is a high performance full-cover water block for Palit- and Gainward custom PCB design GeForce GTX 770 series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

Details

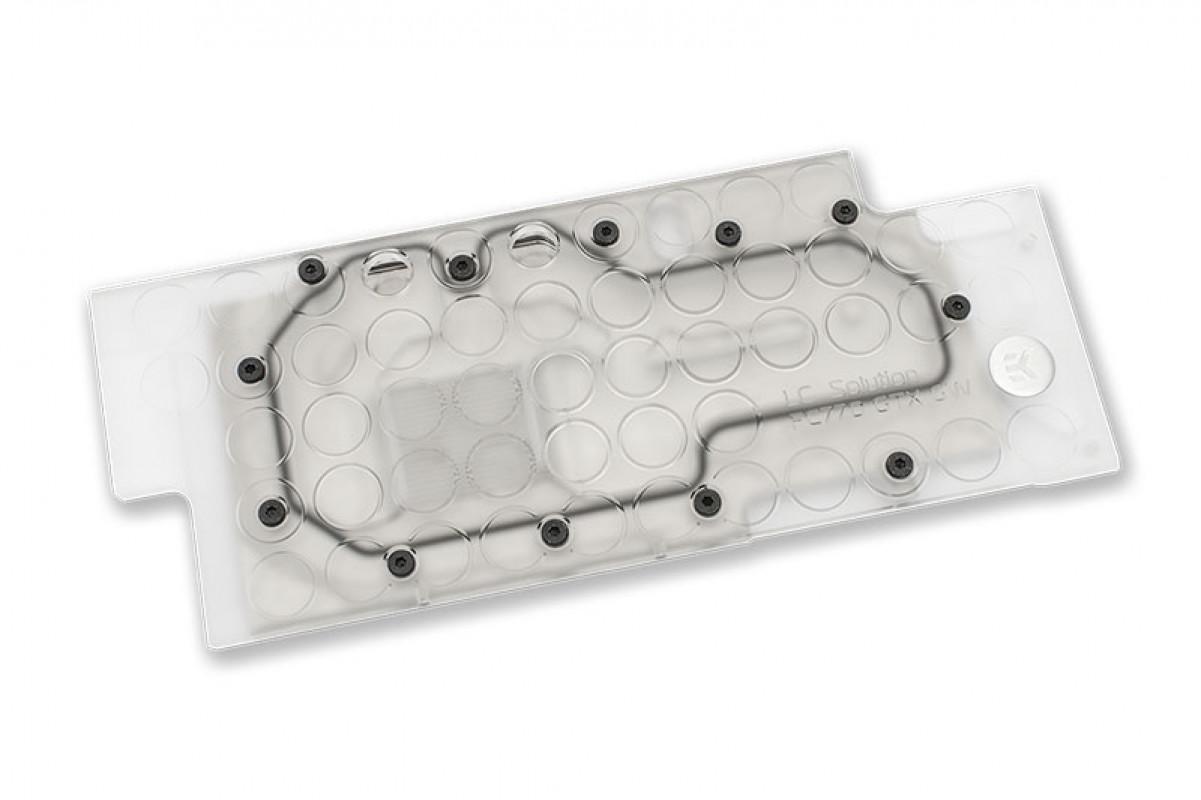

EK-FC770 GTX GW is a high performance full-cover water block for Palit- and Gainward custom PCB design GeForce GTX 770 series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC770 GTX GW water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps. The cooling engine now uses refined, more narrow microchannel structure to even further improve the heat transfer.




Base is made of nickel plated electrolytic copper while the top is made of quality cast acrylic material. The top also features two pre-drilled slots for 3mm LED diodes. The sealing is ensured by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC770 GTX GW Backplate - Black) which provides passive cooling to the VRM section as well as improve the looks of your graphics cards.

Flow orientation doesn't matter and is thus not prescribed.

Up to four EK-FC770 GTX GW series water blocks can be interconnected with EK-FC Bridge & Link CSQ system. The EK-FC Link is already enclosed.

Enclosed:
- EK-FC770 GTX GW series water block
- EK-FC Link
- mounting mechanism with screw-in brass standoffs
- thermal pads
- thermal grease EK-TIM Ectotherm (1g)

Made in Slovenia - Europe!

PLEASE NOTE:
- Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.
- Water block ports' aligns with the EK-FC770 GTX as well as EK-FC Titan (SE).

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
Prepared for LED Diode 3mm
Chip Manufacturer Nvidia GeForce
