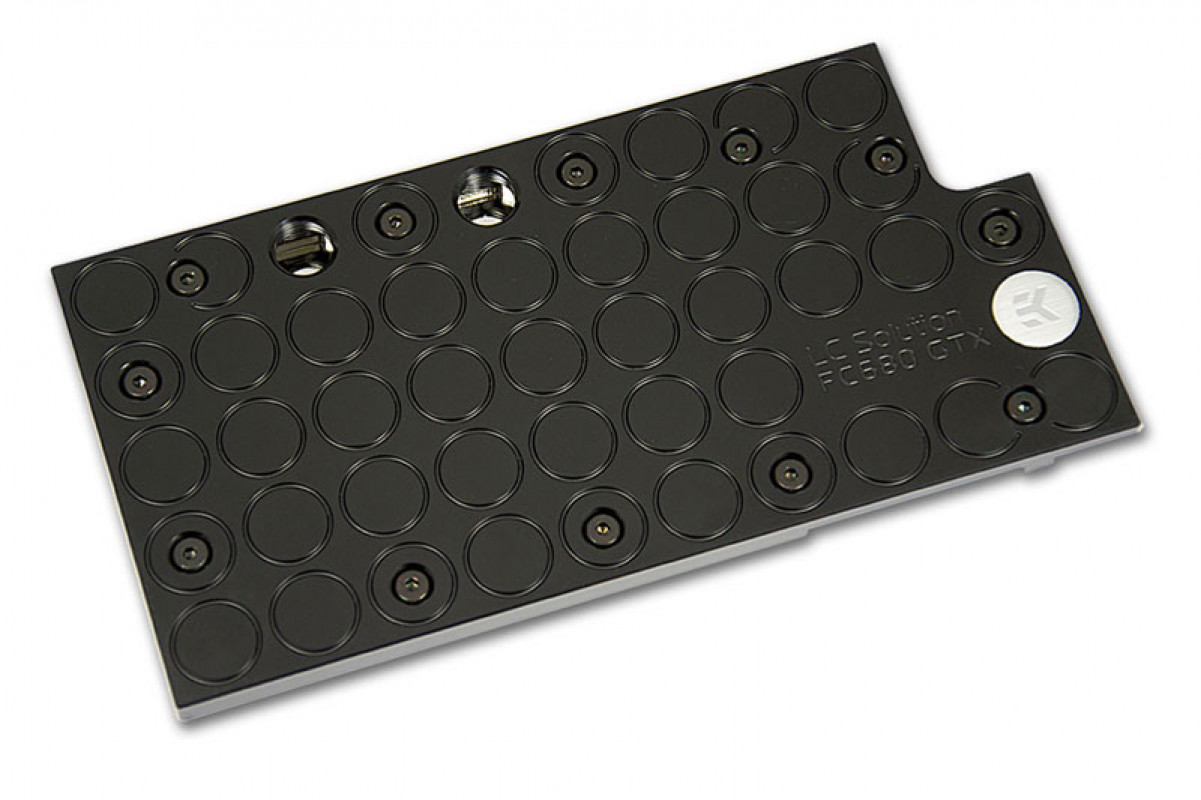

EK-FC680 GTX - Acetal+Nickel CSQ

EAN: 3831109856475

EK-FC680 GTX - Acetal + Nickel CSQ is a high performance full-cover water block for nVidia reference design GeForce GTX 680 series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

PLEASE NOTE:
- Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.

End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

Details

EK-FC680 GTX - Acetal + Nickel CSQ is a high performance full-cover water block for nVidia reference design GeForce GTX 680 series graphics cards. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

This water block directly cools the GPU, RAM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC680 GTX CSQ water block also features a very high flow design therefore it can be easily used in liquid cooling systems using weaker water pumps.

Base is made of nickel plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is performed by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M3x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC680 GTX CSQ Backplate - Black) which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.

Any G1/4" threaded opening can be used as inlet or outlet.

Up to four EK-FC680 GTX CSQ series water block can be interconnected with EK-FC Bridge & Link system. The EK-FC Link is already enclosed.

Enclosed:
- EK-FC680 GTX CSQ series water block
- mounting mechanism with screw-in brass standoffs
- thermal pads
- link

Please note: Thermal paste is not included and needs to be purchased separately. EKWB recommends Gelid GC-Extreme for best performance. Torx T6 screwdriver needed for dissasembly of the factory heatsink/fan solution is also not included.

Made in Slovenia - Europe!

Additional Info

Material / Design / Color option Nickel Acetal
Threads G1/4
Chip Manufacturer Nvidia GeForce
