EK-FC R9 Nano - Acetal+Nickel

EAN: 3831109830963

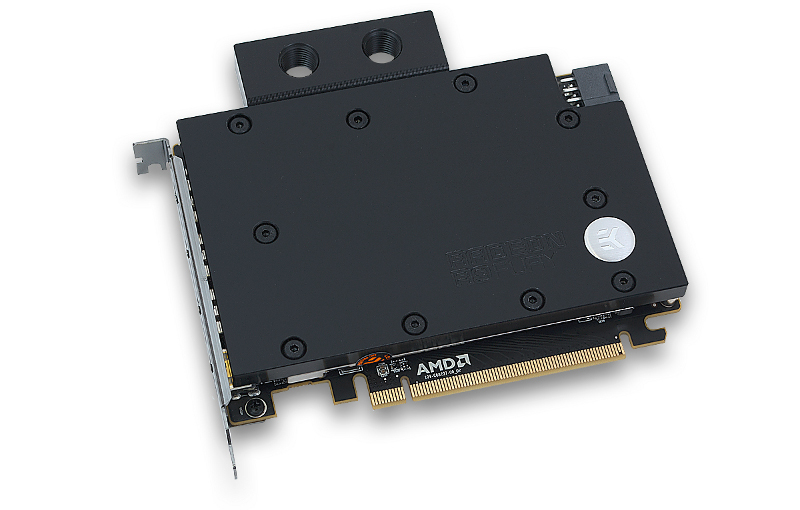

EK-FC R9 Nano is a high performance full-cover water block for AMD reference design Radeon R9 Nano graphics card.

End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

$ 122.99

Connect a pre-filled GPU water block to your EK-XLC Predator with QDC!

This Full-Cover GPU water block can be pre-filled and equipped with Quick Disconnnect (QDC) for connecting to the existing QDC found on the EK-XLC Predator.

Service Fee - Predator PRE-FILL

Additional Cost:

$ 29.99

See how it works

Details

EK-FC R9 Nano is a high performance full-cover water block for AMD reference design Radeon R9 Nano graphics card. Please check our Cooling Configurator online compatibility system for detailed compatibility list!

This water block directly cools the GPU, HBM as well as VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks.

EK-FC R9 Nano water block features a central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with reversed water flow without adversely affecting the cooling performance. Moreover, such design offers great hydraulic perfromance allowing this product to be used in liquid cooling systems using weaker water pumps.

Base is made of nickel-plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is performed by quality rubber washers. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure. Block is mounted with enclosed M2.5x4 DIN7985 screws.

EKWB recommends the purchase of aesthetic retention backplate (EK-FC R9 Nano Backplate - Black) which improves the looks of your graphics cards and also provide some passive cooling to the VRM section.

EK also encloses a single-slot I/O bracket which replaces the original two-slot in order to make installation of mutliple graphics cards easier.

G1/4" threaded fittings can be used on both sides of the FC terminal. Up to four EK-FC R9 Nano water blocks can be used on a single ATX form factor motherboard by using EK-FC Terminal (DUAL, TRIPLE or QUAD type) system or other means of interconnectivity. Please note that EK-FC Bridge & Link CSQ system is not compatible with this water block.

Enclosed:
- EK-FC R9 Nano series water block
- Single-slot I/O bracket
- Mounting mechanism with screw-in brass standoffs
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)

Made in Slovenia - Europe!

PLEASE NOTE:

  •  Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.

Additional Info

Material / Design / Color option Nickel Acetal
Threads G1/4
Prepared for LED Diode 3mm
Chip Manufacturer AMD Radeon
