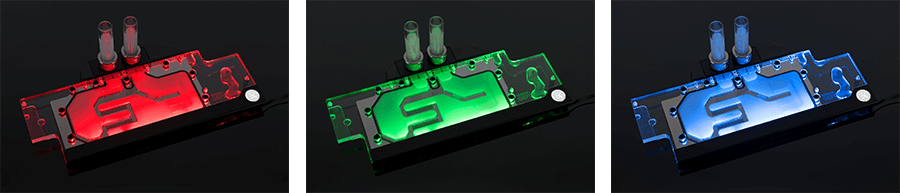

EK-FC GeForce GTX FE RGB is a high-performance full-cover water block for multiple NVIDIA® GeForce® GTX and Titan Pascal series graphics cards that comes with pre-installed 4-pin 12V RGB LED strip.
This water block directly cools the GPU, RAM, and VRM (voltage regulation module) as water flows directly over these critical areas thus allowing the graphics card and it's VRM to remain stable under high overclocks. EK-FC GeForce GTX FE water block features a central inlet split-flow cooling engine design for best possible cooling performance, which also works flawlessly with reversed water flow without adversely affecting the cooling performance. This kind of efficient cooling will allow your high-end graphics card to reach higher boost clocks, thus providing more performance during gaming or other GPU intense tasks. Moreover, such design offers great hydraulic performance allowing this product to be used in liquid cooling systems using weaker water pumps.
This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 4-pin LED connector is to be aligned with the +12V marking on the RGB header. You can easily remove the LED strip cover which is mounted with two screws to replace the LED strip with some other type LED strip.
The base of the block is CNC machined out of nickel-plated electrolytic copper while the top is CNC machined out of high-quality acrylic material. The sealing is ensured by quality rubber O-rings. Screw-in brass standoffs are pre-installed and allow for safe, painless installation procedure.
EK® recommends the purchase of a retention backplate which improves the aesthetics of your graphics cards, but also provides additional passive cooling to the GPU core and circuit board VRM section. The EK-FC GeForce GTX FE RGB water block is backward compatible with all EK-FC1080 GTX Backplates, EK-FC1080 GTX Ti Backplates, and EK-FC Titan X Pascal Backplates.
G1/4" threaded fittings can be used on both sides of the FC terminal and for multiple GPU connectivity, please refer to our offer of GPU Terminals.
The block also features a special plastic cover over the block Terminal. This add-on is designed to reveal the graphics card model, visible from the side. The terminal cover is removable, it is fitted with 2 screws from the side.
The EK-FC GeForce GTX FE RGB water block is compatible with all reference design GeForce GTX 1060, GeForce GTX 1070, GeForce GTX 1080, GeForce GTX 1080 Ti, GeForce Titan X (Pascal) and GeForce Titan Xp based graphics cards. The current compatibility list rounds up a total of 106 graphics cards that are on the market, but as always, we recommend that you refer to the EK Cooling Configurator for a precise compatibility match.
An additional single-slot I/O bracket can prepurchased separately which replaces the original two-slot in order to make installation of multiple graphics cards easier and also transforms the GPU into a gorgeous single slot solution. The single slot bracket is compatible with reference design NVIDIA® GeForce® GTX 1080 Ti series graphics cards only!
Technical specifications:
- RGB cable length: 30cm
- RGB connector classic 4-pin (12+ R G B)
Enclosed:
- EK-FC GeForce GTX FE RGB series water block
- Mounting mechanism with screw-in brass standoffs
- Necessary mounting screws, nuts, and washers
- 2x EK plug G1/4”
- 6mm Allen key
- Thermal pads
- Thermal grease EK-TIM Ectotherm (1g)
Made in Slovenia - Europe!
