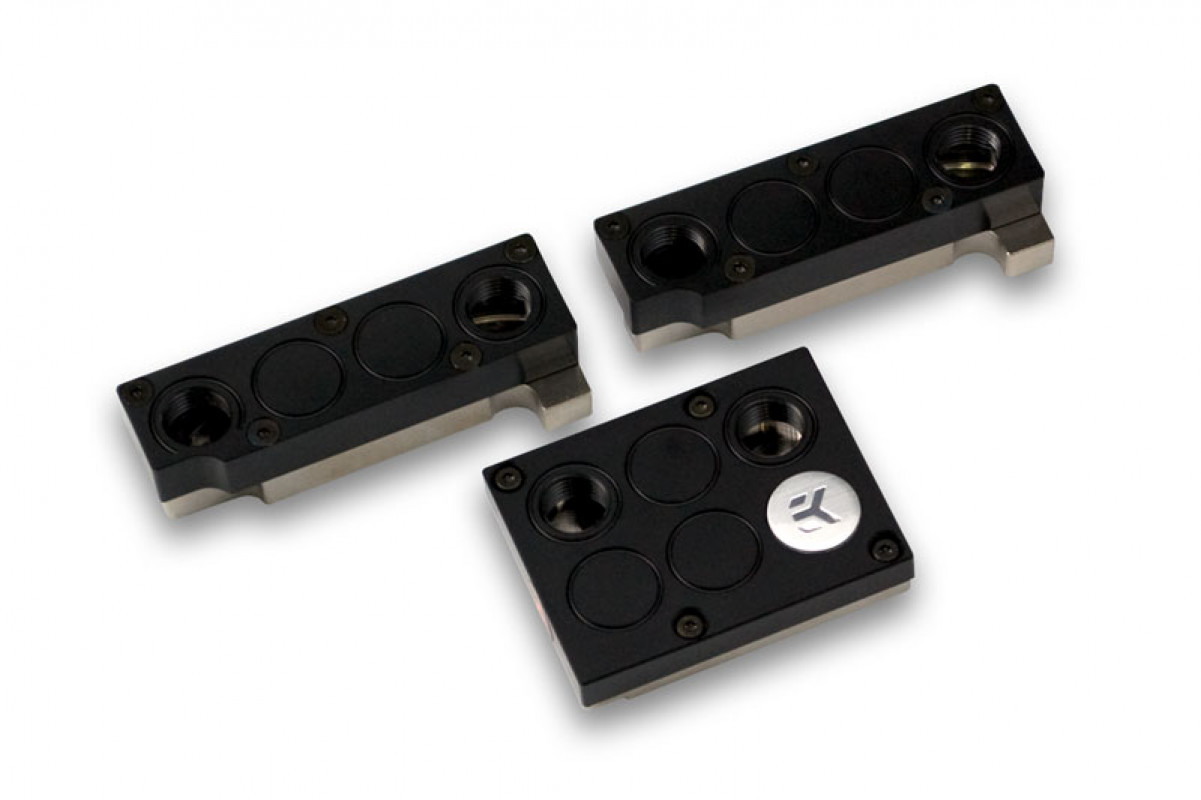

EK-FB KIT ASUS Z9PE-D8 - Acetal+Nickel

EAN: 3831109820865

EK-FB KIT ASUS Z9PE-D8 full-board water block kit is a complete liquid cooling solution for ASUS Z9PE-D8 WS motherboard.


End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

Details

EK-FB KIT ASUS Z9PE-D8 full-board water block kit is a complete liquid cooling solution for ASUS Z9PE-D8 WS (90-MSVDY0-G0EAY00T) motherboard. The water blocks directly cools Intel C602 southbridge (PCH) and power regulation (VRM / MOSFETs) module of both CPUs. It is a high flow water block kit that can be easily used with systems using weaker water pumps.

Base of the waterblock is made of nickel plated electrolytic copper while the top is made of quality POM Acetal material. The sealing is performed by quality rubber gaskets.

Water block is mounted with enclosed M2.5x4 DIN7985 and M3x8 DIN7991 screws and PVC washers. The 2.5mm nickel plated brass screw-in standoffs are already preinstalled and allow for easy installation. EK designed backplates for MOSFET water block are included.

Enclosed thermal pad is used on voltage regulator modules to improve cooling performance of the waterblock. On the southbridge (PCH) chip please use any electrically non-conductive thermal grease, e.g. Arctic Cooling MX-4.

Enclosed:
- 3 x water blocks (2x MOSFET & SB)
- 2 x black anodized MOSFET backplate
- mounting mechanism
- thermal pads

Fittings are optional not enclosed! Six fittings are needed to make this waterblock operate properly.

Please note:
- Due to the waterblock design EKWB recommends using PSC 10mm fittings.
-The southbridge (PCH) water block is designed to obstruct (sacrifice) one PCI-express x8 expansion slot yet the use of of EK-FC Backplate might be impossible in the PCI-e slot #5. If all PCIe slots are in use it is mandatory to reinstall the factory provided PCH/SB heat sink.
- Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.

Made in Slovenia - Europe!

Additional Info

Material / Design / Color option Nickel Acetal
Threads G1/4
