EK-FB KIT ASUS R5E - Nickel

EAN: 3831109821299

EK-FB KIT ASUS R5E is a complete water cooling solution for ASUS Rampage V Extreme motherboard.



End of life

2 Years Limited
International Warranty

Fast & Free
Technical Support

DHL & UPS Fast Delivery

Payment by Paypal
or Credit card available

Paypal Buyer protection

Made with care in EU

Details

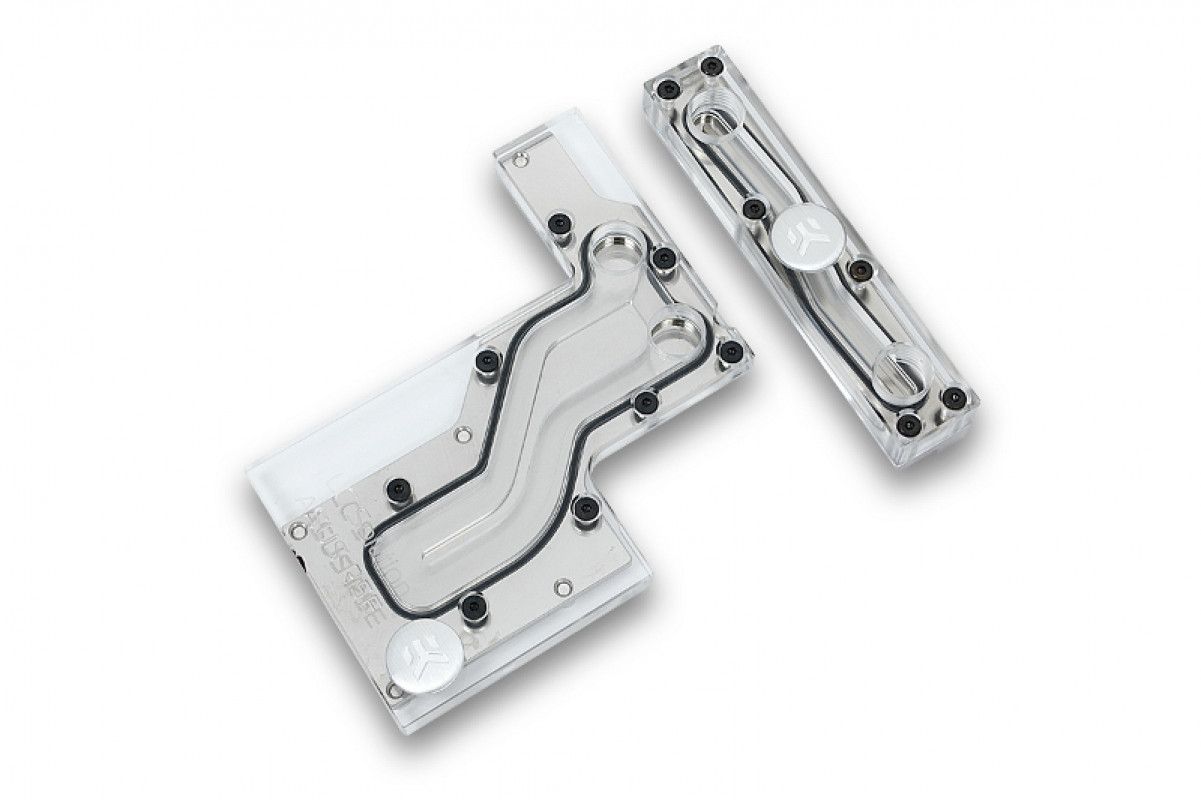

EK-FB KIT ASUS R5E is a complete water cooling solution for ASUS Rampage V Extreme motherboard consisting of two separate water blocks. The water blocks directly cools Intel X99 Express southbridge (PCH) chip and power regulation (VRM / MOSFETs) module. Please note this water block cools exactly as much heat generating components as ASUS factory cooling solution. It is a high flow water block that can be easily used with systems using weaker water pumps.

Base of the waterblock is made of nickel plated electrolytic copper while the top is made of quality acrylic material. The sealing is performed by quality rubber gaskets.

Water block is mounted with enclosed M3x5 DIN7985 and M3x8 DIN7991 screws and PVC washers. The 2.5mm nickel plated brass screw-in standoffs are already preinstalled and allow for easy installation.

Enclosed thermal pad is used on voltage regulator module to improve cooling performance of the waterblock. On the southbridge please use any electrically non-conductive thermal grease, e.g. Gelid GC-Extreme.

A maximum diameter of barbs/fittings on SB part of the water block kit must be 22.2 mm in order to allow the installation of the graphics card mounted with EK-FC series backplate in the first PCIe x16 slot!

Enclosed:
- 2 x water blocks (MOSFET & SB)
- mounting mechanism
- thermal pads

Fittings are not enclosed! Four fittings are needed to make this waterblock to operate properly. All EK-CSQ fittings are compatible with this water block!

Made in Slovenia - Europe!

PLEASE NOTE:

  • Due to immense variety of fittings/barbs available on market and no prescribed standards, we guarantee compatibility only for connectors bought from our web site.
  • This product should NOT be installed with any aluminum Fluid Gaming parts!

Additional Info

Material / Design / Color option Nickel Plexi
Threads G1/4
